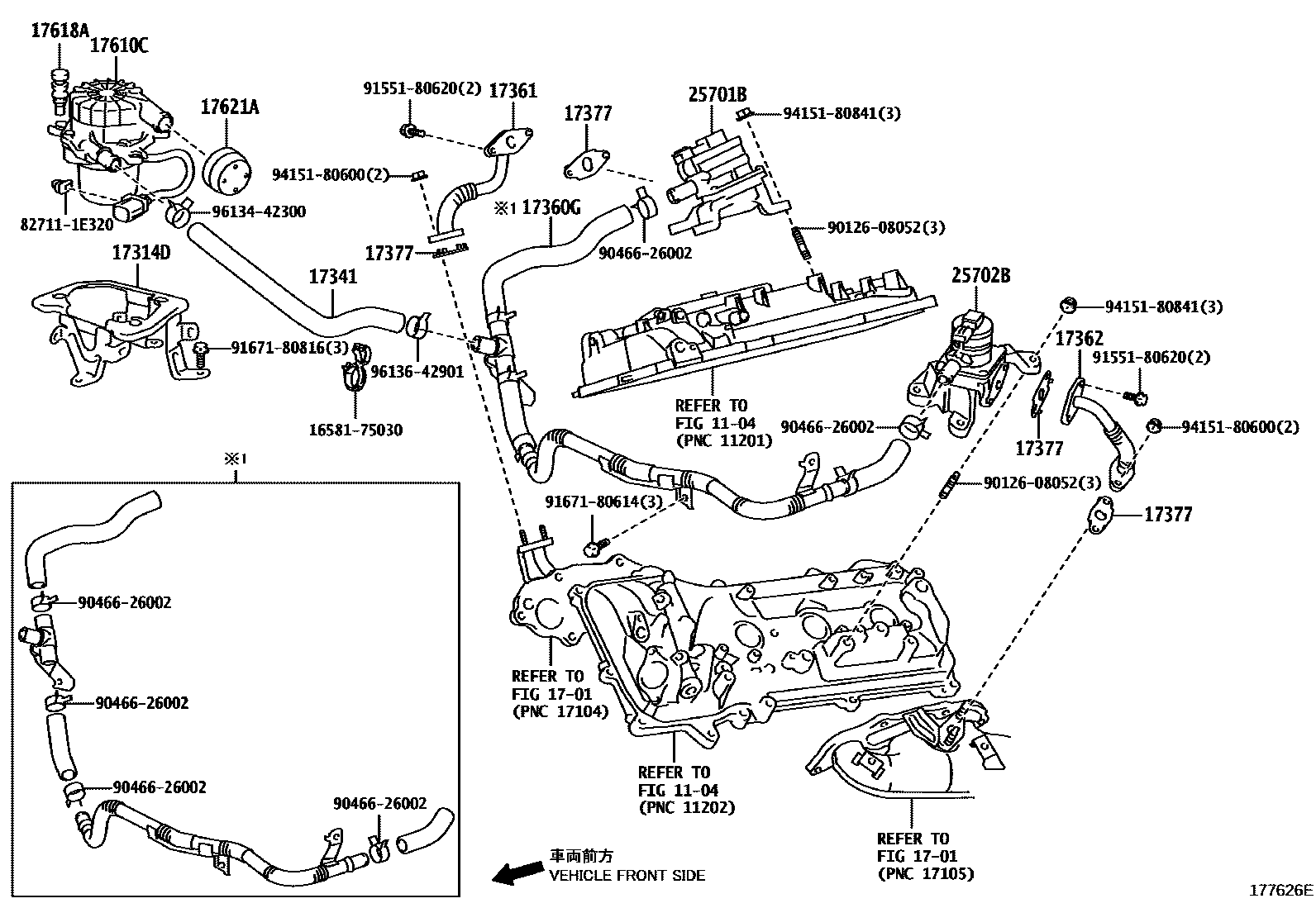

MANIFOLD AIR INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

17314DBRACKET, AIR PUMP, NO.1

main17314-0W030i1GRFE..GSJ15201011-201204

main17314-0W031i1GRFE..GSJ15201205-201801

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-31100i1GRFE..GSJ15201011-201801

17360GTUBE ASSY, AIR

main17360-31010i1GRFE..GSJ15201011-201801

17361TUBE, AIR

main17361-31030i1GRFE..GSJ15201011-201801

17362TUBE, AIR, NO.2

main17362-31020i1GRFE..GSJ15201011-201801

17377GASKET, AIR TUBE, NO.2

main17377-38010i1GRFE..GSJ15201011-201801

17610CPUMP ASSY, AIR

main17610-0C040i1GRFE..GSJ15201011-201801

17618AINSULATOR, AIR PUMP

main17618-0C010i1GRFE..GSJ15201011-201801

17621AINLET, AIR PUMP

main17621-0C010i1GRFE..GSJ15201011-201801

25701BVALVE SET, EMISSION CONTROL, NO.1

main25701-31010i1GRFE..GSJ15201011-201104

main25701-31011i1GRFE..GSJ15201105-201206

main25701-31012i1GRFE..GSJ15201207-201303

main25701-31013i1GRFE..GSJ15201304-201406

main25701-31014i1GRFE..GSJ15201407-201801

25702BVALVE SET, EMISSION CONTROL, NO.2

main25702-31010i1GRFE..GSJ15201011-201104

main25702-31011i1GRFE..GSJ15201105-201206

main25702-31012i1GRFE..GSJ15201207-201303

main25702-31013i1GRFE..GSJ15201304-201406

main25702-31014i1GRFE..GSJ15201407-201801

1658175030CLAMP, HOSE(FOR WATER HOSE)

main16581-75030

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608052

main90126-08052

9046626002

main90466-26002

9155180620

main91551-80620

9167180614

main91671-80614

9167180816

main91671-80816

9415180600

main94151-80600

9415180841

main94151-80841

9613442300

main96134-42300

9613642901

main96136-42901

24 parts on this diagram · 1 diagram in section
