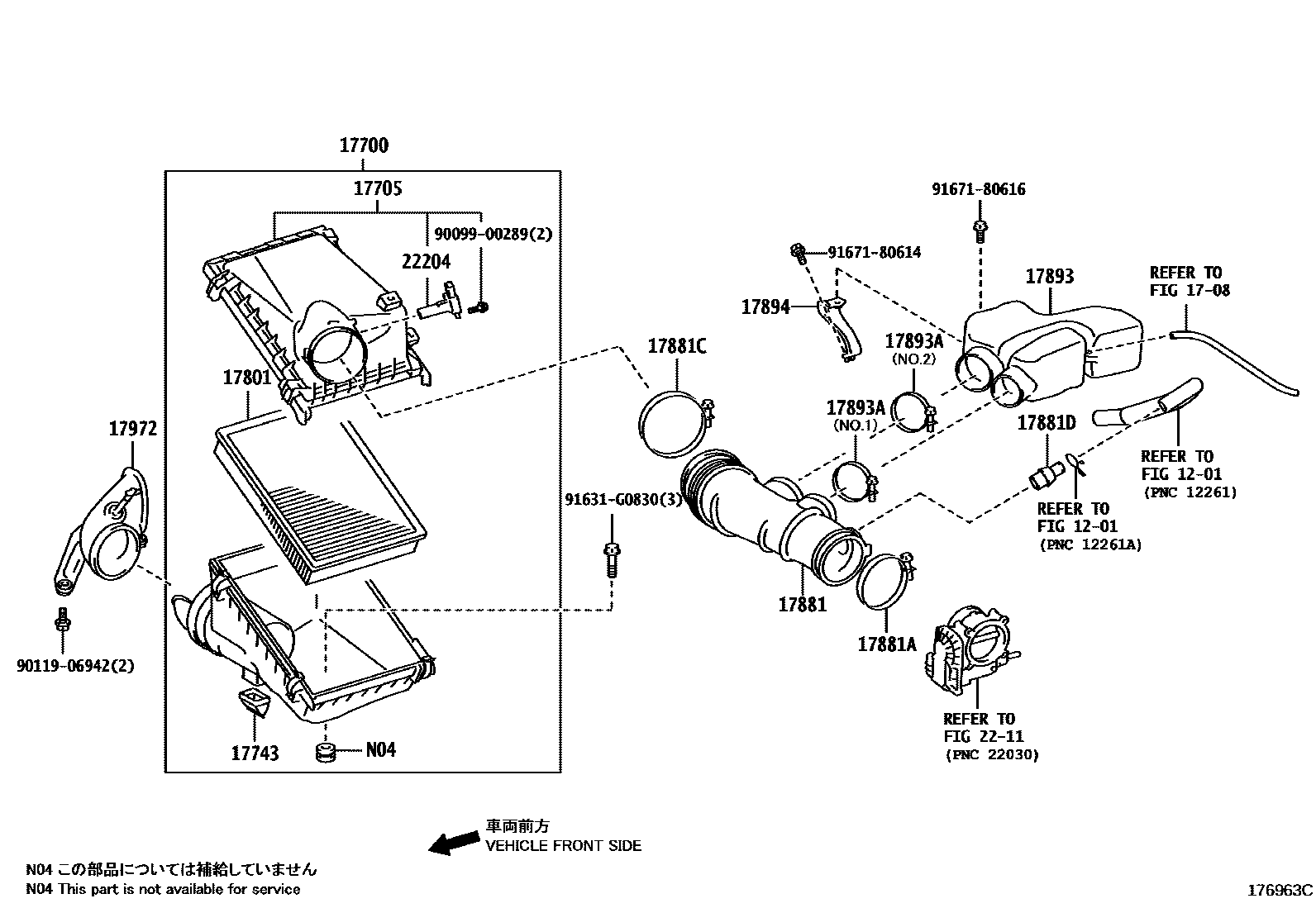

AIR CLEANER

1201

1708

17700CLEANER ASSY, AIR

main17700-31880i1GRFE..GSJ15201011-201106

sub17700-31881

main17700-31881i1GRFE..GSJ15201106-201107

sub17700-31882

main17700-31882i1GRFE..GSJ15201107-201801

17705CAP SUB-ASSY, AIR CLEANER

main17705-31370i1GRFE..GSJ15201011-201106

sub17705-31371

main17705-31371i1GRFE..GSJ15201106-201801

17743VALVE, DUST RELIEF

main17743-50010i1GRFE..GSJ15201011-201801

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38050i1GRFE..GSJ15201011-201107

sub17801-38051

main17801-38051i1GRFE..GSJ15201107-201801

17881HOSE, AIR CLEANER, NO.1

main17881-31250i1GRFE..GSJ15201011-201801

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-30900i1GRFE..GSJ15201011-201801

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-31060i1GRFE..GSJ15201011-201801

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1GRFE..GSJ15201011-201801

17893RESONATOR, INTAKE AIR

main17893-31130i1GRFE..GSJ15201011-201801

17893ACLAMP, HOSE

main96111-10690i1GRFE..GSJ15201011-201801

main96111-10750i1GRFE..GSJ15201011-201801

17894BRACKET, RESONATOR

main17894-31050i1GRFE..GSJ15201011-201801

17972INLET, COOL AIR, NO.2

main17971-31030i1GRFE..GSJ15201108-201801

main17972-31010i1GRFE..GSJ15201011-201108

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GSJ15201106-201801

sub22204-28010

main22204-0V010i1GRFE..GSJ15201106-201801

main22204-0V020i1GRFE..GSJ15201106-201801

main22204-28010i1GRFE..GSJ15201106-201801

main22204-37010i1GRFE..GSJ15201011-201106

sub22204-28010

9009900289

main90099-00289

9011906942

main90119-06942

91631G0830

main91631-G0830

9167180614

main91671-80614

9167180616

main91671-80616

21 parts on this diagram · 1 diagram in section
