ENGINE OIL COOLER

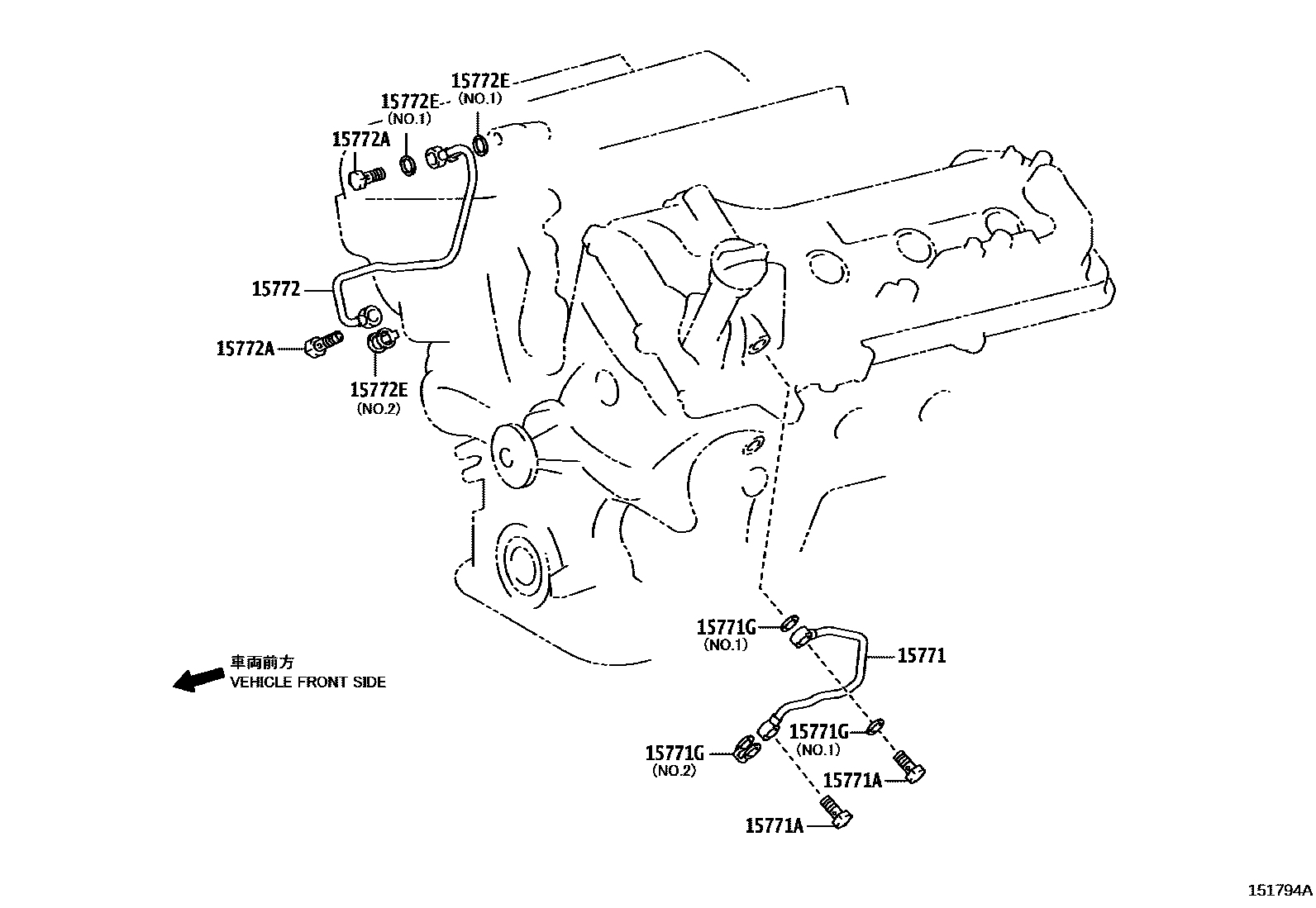

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i201011-201801

15771AUNION(FOR OIL PIPE)

main90401-16043×2i201011-201801

15771GGASKET

main90430-16012×2i201011-201801

main90430-16016i201011-201801

15772PIPE, OIL, NO.2

main15772-31010i201011-201801

15772AUNION(FOR OIL PIPE)

main90401-16043×2i201011-201801

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i201011-201801

main90430-16016i201011-201801

6 parts on this diagram · 1 diagram in section
