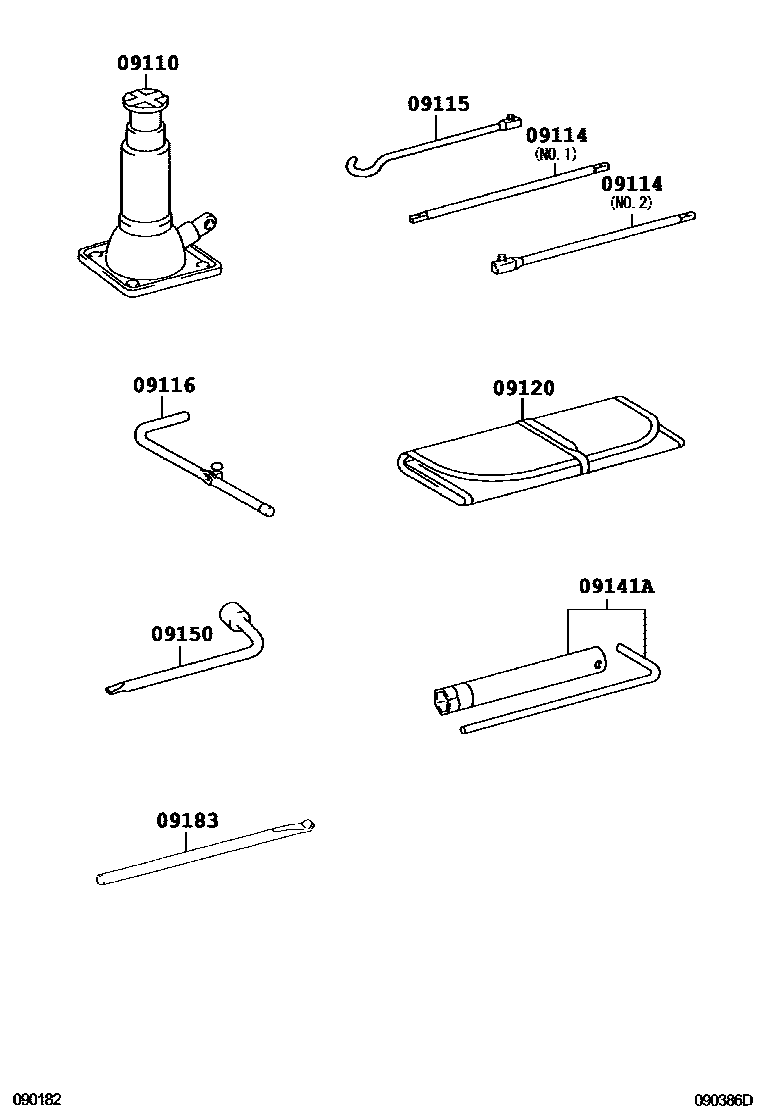

STANDARD TOOL

09110JACK ASSY

main09111-60130iGSJ15201109-201603

main09111-60131iGSJ15201604-201801

main09111-60140iGSJ15201011-201108

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGSJ15201011-201801

main09114-35050iGSJ15201011-201801

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGSJ15201011-201801

09116LEVER, JACK HANDLE

main09116-35080iGSJ15201011-201801

09120BAG, TOOL

main09120-35170iGSJ15201011-201801

09141AWRENCH, HEXAGON

main09156-00041iGSJ15201011-201801

09150WRENCH, HUB NUT BOX

main09150-60020iGSJ15201011-201801

09183WRENCH, WHEEL CAP

main09183-00030iGSJ15201011-201801

8 parts on this diagram · 1 diagram in section
