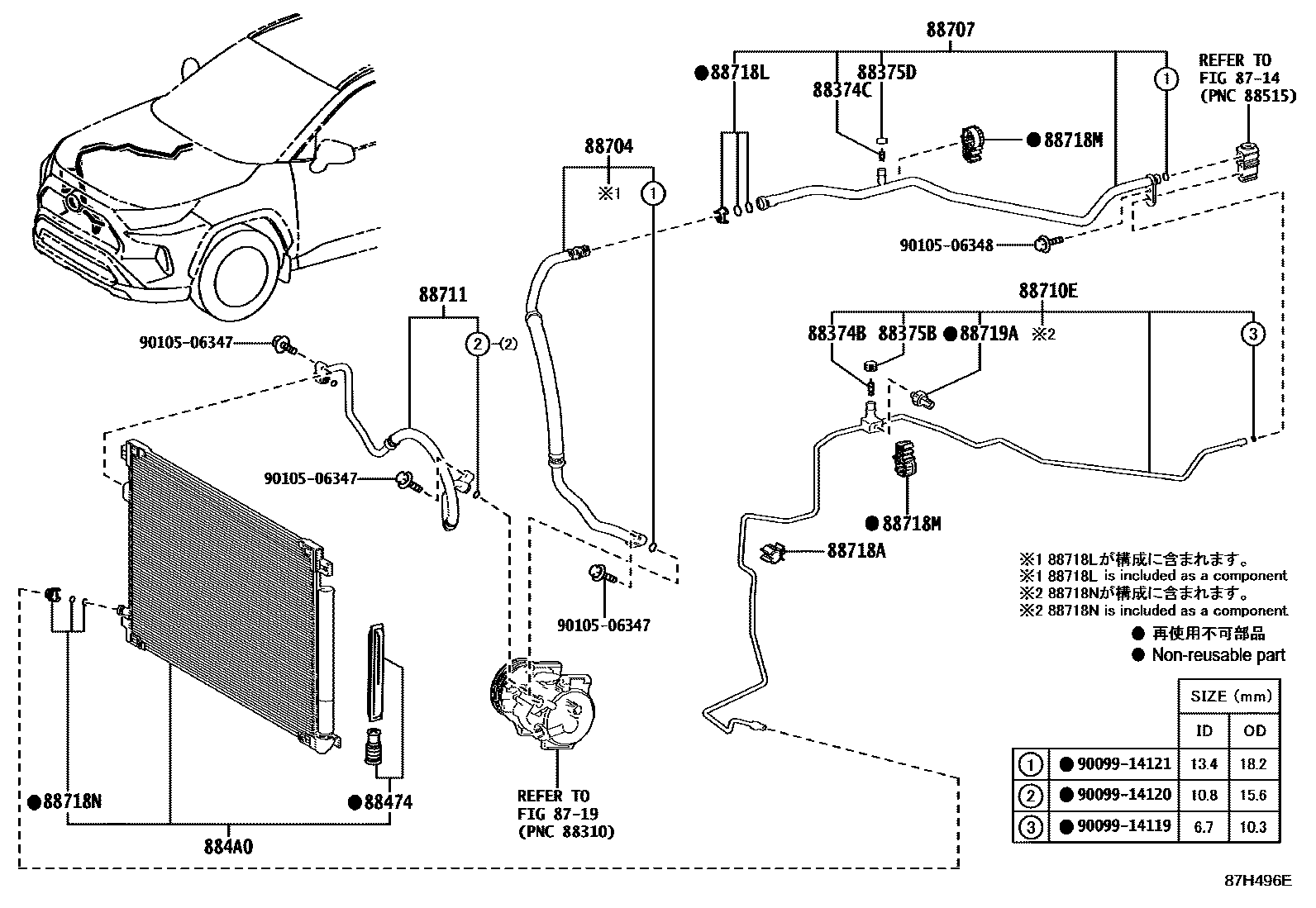

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAXAH5#,MXAA5#202210-202310

88374CVALVE, SERVICE, NO.2

main88374-30010iAXAH5#,MXAA5#201904-202007

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iAXAH5#,MXAA5#201904-202007

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAXAH5#,MXAA5#202210-202310

88474DRYER, COOLER

main88474-12010iAXAH52,MXAA52202310-202410

main88474-12020iAXAH5#,MXAA5#201904-202007

884A0CONDENSER ASSY, COOLER

main884A0-33020iMXAA5#201904-202007

main884A0-42040iAXAH5#201904-202007

main884A0-42060iMXAA5#202112-202210

main884A0-42070iAXAH5#202112-202210

88704HOSE SUB-ASSY, SUCTION

main88704-42720iMXAA5#202008-202210

main88704-42740iAXAH5#202008-202112

main88704-42840iAXAH5#202210-202310

main88704-42841iAXAH52202403-202410

88707PIPE SUB-ASSY, SUCTION

main88707-42210iMXAA5#201904-202007

main88707-42230iAXAH5#201904-202007

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-42180iMXAA5#201904-202007

main88710-42200iAXAH5#201904-202007

main88710-42500iMXAA5#202210-202310

main88710-42520iAXAH5#202112-202210

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42040iMXAA54202310

main88711-42060iAXAH5#202008-202112

main88711-48350iAXAH52202310-202410

main88711-78040iAXAH5#202112-202210

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2F110iAXAH5#,MXAA5#201904-202007

88718LCLAMP, PIPING

main88718-52280iAXAH52,MXAA52; MXAA52202310-202410

88718MCLAMP, PIPING

main88718-33490×2iAXAH5#,MXAA5#201904-202007

88718NCLAMP, PIPING

main88718-1E150iAXAH5#,MXAA5#201904-202007

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXAH5#,MXAA5#201904-202007

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

22 parts on this diagram · 4 diagrams in section
