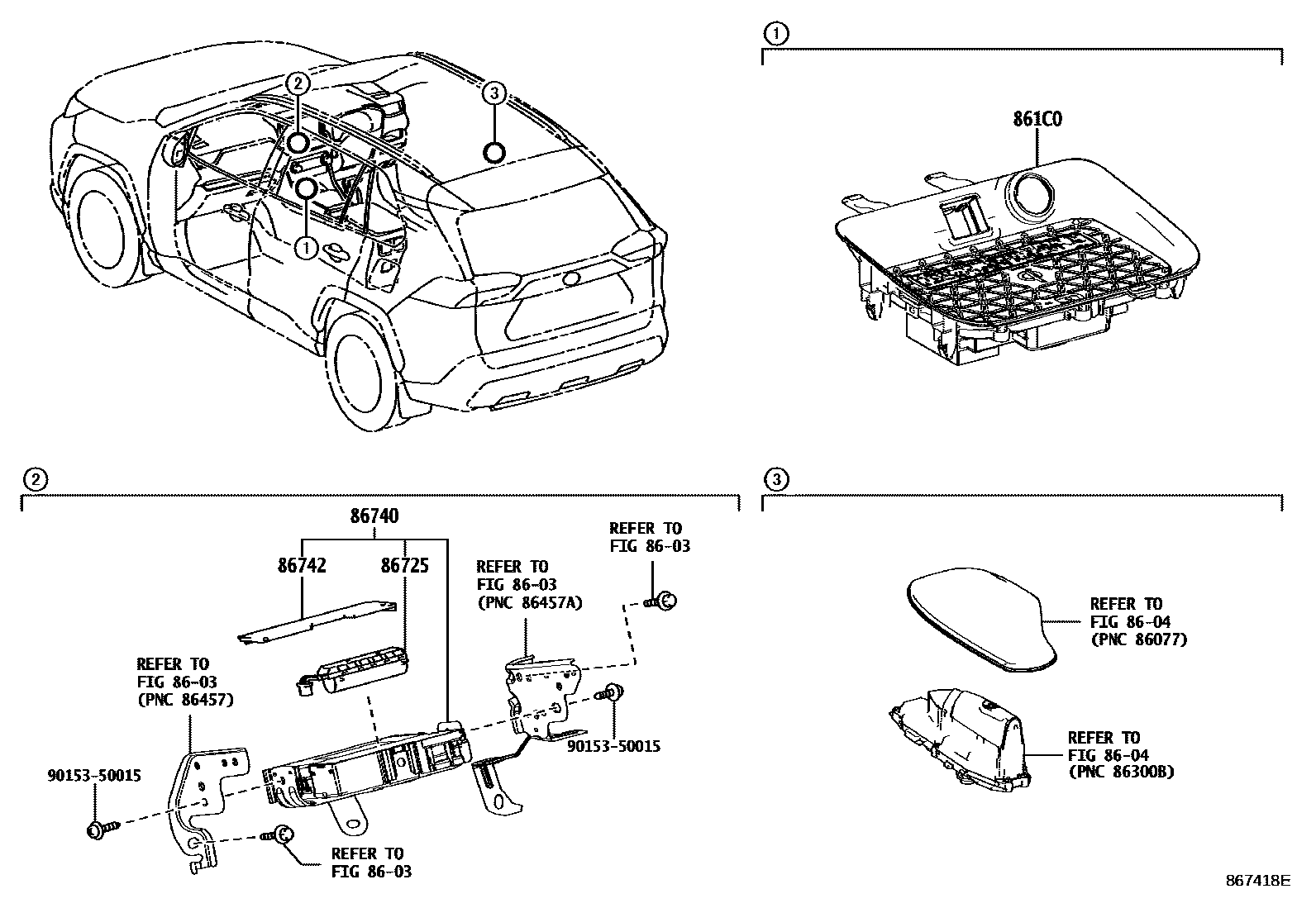

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-42050-C1iAXAH5#,MXAA5#..HBDX,X201904-202007

main861C0-42050-D0iMXAA54..ADVEN202010-202112

main861C0-42050-E2iAXAH54,MXAA54..G,HBDG201904-202007

main861C0-42050-E3iMXAA54..ADVEN201904-202007

main861C0-42120-E0iAXAH54,MXAA54..G,HBDG202112-202210

main861C0-42130-E0iAXAH54,MXAA54..G202210-202310

main861C0-42131-E0iAXAH54,MXAA54..G202312

86725BATTERY, MOBILEPHONE

main86725-58010iAXAH5#,MXAA5#201904-202007

main86725-78020iAXAH52,MXAA52202310-202410

main86725-26010iAXAH5#,MXAA5#202008-202210

86740TRANSCEIVER ASSY, TELEPHONE

main86741-11050iAXAH52,MXAA52202406-202410

main86741-60120iAXAH5#,MXAA5#202210-202310

main86741-11041iAXAH5#,MXAA5#202008-202106

main86741-11042iAXAH5#,MXAA5#202107-202210

86742COVER, TRANSCEIVER

main86742-26010iAXAH5#,MXAA5#202210-202310

main86742-58020iAXAH5#,MXAA5#201904-202007

9015350015

main90153-50015

7 parts on this diagram · 3 diagrams in section
