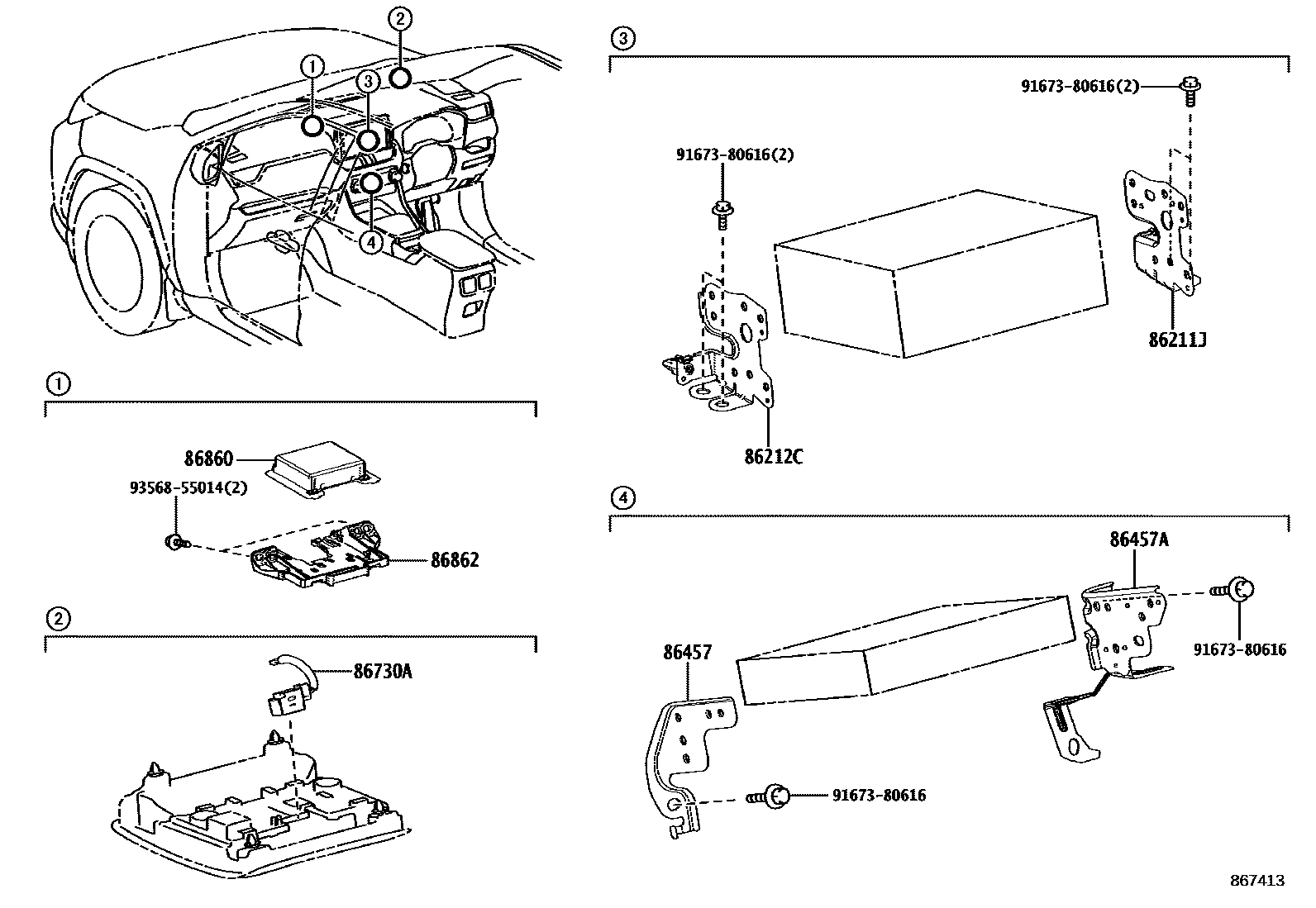

NAVIGATION & FRONT MONITOR DISPLAY

0001 1�������� 0002 1��(������) 0003 1��(������)

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-42141supersedes 86211-42110iAXAH5#,MXAA5#201904-202007

main86211-42170iAXAH54,MXAA54..ADVEN,G202310

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-42141supersedes 86212-42110iAXAH5#,MXAA5#201904-202007

main86212-42170iAXAH54,MXAA54..ADVEN,G202210-202310

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-42030iAXAH5#,MXAA5#201904-202007

main86457-42070iAXAH5#,MXAA5#202210-202310

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-42040iAXAH5#,MXAA5#201904-202007

main86457-42080iAXAH5#,MXAA5#202210-202310

86730AMICROPHONE ASSY, TELEPHONE

main86730-42050iAXAH5#,MXAA5#201904-201910

main86730-42080iAXAH5#,MXAA5#201910-202007

86860ANTENNA ASSY, NAVIGATION

main86880-52030iAXAH5#,MXAA5#202210-202310

main86880-78010iAXAH5#,MXAA5#201904-202007

main86880-42030supersedes 86880-52030iAXAH52,MXAA52202310-202410

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAXAH5#,MXAA5#201904-202007

main86862-48060iAXAH5#,MXAA5#202210-202310

9167380616

main91673-80616

9356855014

main93568-55014

9 parts on this diagram · 3 diagrams in section
