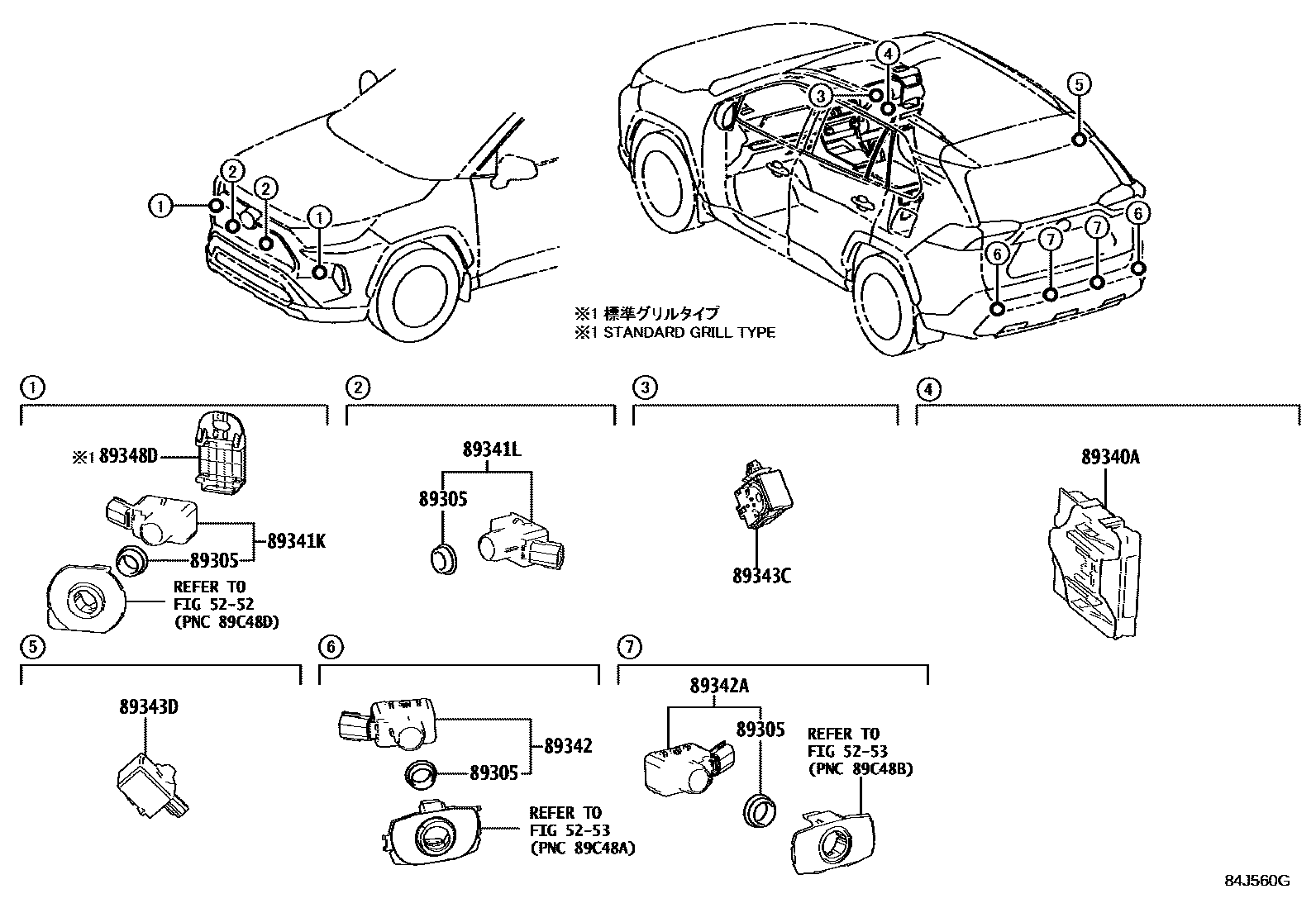

CLEARANCE & BACK SONAR

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iMXAA54..G;AXAH54..ADVEN,HBDG202008-202210

main89305-52010iAXAH52,MXAA52202310-202410

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-42070iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG202008-202112

main89340-42071iAXAH5#,MXAA5#202112-202210

main89340-42260iAXAH5#,MXAA5#202210-202310

main89340-42420iAXAH54,MXAA54202310

main89340-42160iAXAH54,MXAA54..X202310

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-A0×2iMXAA54..ADVEN202112-202210

SUPER WHITE 2,040

main89341-33220-A1×2iAXAH5#,MXAA5#..G,X202210-202310

PLATINUM WHITE PEARL MC.,089

main89341-33220-A5×2iAXAH5#,MXAA5#..HBDX,X202112-202210

WHITE PEARL CS.,070

main89341-33220-C0×2iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..G,HBDG; MXAA54..ADVEN201904-202007

main89341-33220-D7×2iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main89341-33220-G5×2iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..ADVEN202112-202210

URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3

main89341-33220-J9×2iAXAH5#,MXAA5#..HBDX,X202112-202210

DK. BLUE MC.,8X8

main89341-33220-P1×2iAXAH54,MXAA54..G,HBDG202008-202210

SILVER ME.,1D6

main89341-33220-P2×2iAXAH54,MXAA54..G,HBDG202008-202210

GRAY ME.,1G3

main89341-33220-R4×2iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..ADVEN202112-202210

GRAYISH BLUE,2TU; GRAYISH BLUE,8W2

main89341-K0060-A0×2iAXAH54,MXAA54..ADVEN202310

SUPER WHITE 2,040

main89341-K0060-A4×2iAXAH54,MXAA54..G,X202310

PLATINUM WHITE PEARL MC.,089

main89341-K0060-B1×2iAXAH52,MXAA52202310-202410

GRAY ME.,1G3

main89341-K0060-B2×2iAXAH54,MXAA54..G,X202310

SILVER ME.,1D6

main89341-K0060-C5×2iAXAH54,MXAA54202310

ATTITUDE BLACK MC.,218

main89341-K0060-D1×2iAXAH54,MXAA54202310

RED MC.,3T3

main89341-K0060-G2×2iAXAH54,MXAA54..ADVEN202310

URBAN KHAKI,2QU ,6X3

main89341-K0060-J2×2iAXAH54,MXAA54..ADVEN202310

GRAYISH BLUE,2TU

main89341-K0060-J3×2iAXAH52,MXAA52202310-202410

DK. BLUE MC.,8X8

main89341-33220-C4×2iAXAH54,MXAA54..ADVEN202210-202310

main89341-33220-J8×2iAXAH5#,MXAA5#..HBDX,X; MXAA54..ADVEN201904-202007

main89341-50080-C0×2iAXAH54,MXAA54..ADVEN202310

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-C4×2iAXAH5#,MXAA5#..ADVEN,X202210-202310

MAT BLACK

main89341-33220-P6×2iAXAH54,MXAA54..G202210-202310

main89341-50080-C0×2iAXAH52,MXAA52202310-202410

DUMMY-MAT BLACK

main89341-K0060-17×2iAXAH54,MXAA54..G202310

GRAY METALLIC

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-C4×2iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main89341-50080-C0×2iAXAH52,MXAA52202310-202410

DUMMY-MAT BLACK

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-C4×2iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main89341-50080-C0×2iAXAH52,MXAA52202310-202410

DUMMY-MAT BLACK

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

89348DCLIP, ULTRASONIC SENSOR

main89348-58130×2iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

11 parts on this diagram · 1 diagram in section
