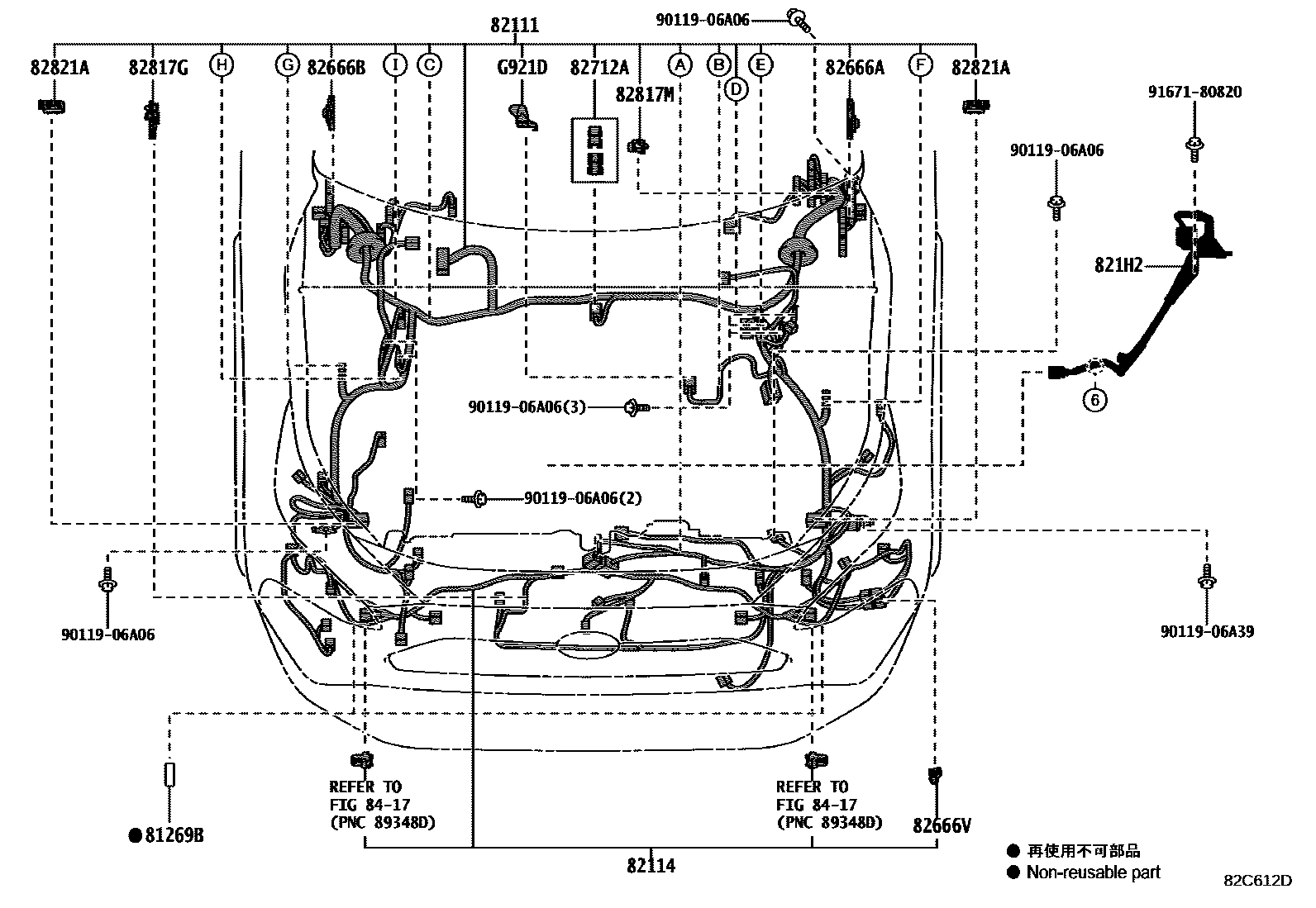

WIRING & CLAMP

0001 1�������� 1/2 0002 1�������� 2/2 0003 1�������� 1/2 0004 1�������� 2/2 0005 1�������� 1/2 0006 1�������� 2/2 0007 1����� 1/2 0008 1����� 2/2 0009 1����� 1/2 0010 1����� 2/2 0011 1����� 1/2 0012 1����� 2/2 0013 1������������ 0014 1��� 0015 1���&��� 0016 1���&��� 0017 1��������� 0018 1��������� 0019 1��� 0020 1�����&������ 1/2 0021 1�����&������ 2/2 0022 1���� 1/2 0023 1���� 2/2

81269BSEAL, FOG LAMP

main81269-42010×2iAXAH5#,MXAA5#..HBDX,X202010-202112

main81269-42040×2supersedes 81269-42010iAXAH5#,MXAA5#..HBDX,X202008-202010

82111WIRE, ENGINE ROOM MAIN

main82111-4AS41supersedes 82111-4AS31iMXAA5#..X; MXAA54..ADVEN,G202112-202210

main82111-4AT50iAXAH52202008-202112

main82111-4AT51iAXAH52202112-202210

main82111-4AT52iAXAH52202210-202310

main82111-4AT53iAXAH52202310-202410

main82111-4AT60iAXAH54202008-202112

main82111-4AT61iAXAH54202112-202210

main82111-4AY00iAXAH52201904-202004

main82111-4AY01iAXAH52202005-202007

main82111-4AY20iAXAH54201904-202004

main82111-4AY21iAXAH54202005-202007

main82115-42M60supersedes 82111-4AS32iMXAA5#..X; MXAA54..ADVEN,G202210-202310

main82115-42N30iAXAH54202210-202310

main82115-42N31iAXAH54202310

main82111-4AS40iMXAA5#; MXAA54..ADVEN202008-202112

main82115-42210iMXAA5#; MXAA54..ADVEN201904-202007

82114WIRE, ENGINE ROOM, NO.4

main82114-42240iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main82114-42830iAXAH54,MXAA54..G202210-202310

main82114-42831iAXAH54,MXAA54..G202310

main82114-42090supersedes 82114-42190iAXAH5#,MXAA5#..HBDX,X202008-202112

main82114-42241supersedes 82114-42261iAXAH5#,MXAA5#..HBDX,X; AXAH54,MXAA54..G,HBDG202112-202210

main82114-42242supersedes 82114-42282iAXAH5#,MXAA5#..X202210-202310

main82114-42243supersedes 82114-42283iAXAH52,MXAA52202310-202410

main82114-42250supersedes 82114-42140iMXAA54..ADVEN202008-202112

main82114-42260supersedes 82114-42240iAXAH54,MXAA54..G,HBDG202008-202112

main82114-42270supersedes 82114-42140iMXAA54..ADVEN202008-202112

main82114-42271supersedes 82114-42251iAXAH54,MXAA54..ADVEN202112-202210

main82114-42280supersedes 82114-42190iAXAH5#,MXAA5#..HBDX,X202008-202112

main82114-42840supersedes 82114-42253iAXAH54,MXAA54..ADVEN202210-202310

main82114-42841supersedes 82114-42253iAXAH54,MXAA54..ADVEN202310

821H2WIRE, HV AIR CONDITIONER

main821H2-33020iAXAH52202210-202310

main821H2-42020iAXAH54201904-202007

82666AHOLDER, CONNECTOR NO.2

main82666-42710iAXAH54202310

main82666-60310iAXAH5#,MXAA5#202210-202310

82666BHOLDER, CONNECTOR NO.3

main82666-60220iAXAH5#,MXAA5#201904-202007

82666VHOLDER, CONNECTOR NO.15

main82666-42020iAXAH54,MXAA54..ADVEN202008-202210

main82666-42720iAXAH5#,MXAA5#..G,HBDG,HBDX,X202008-202210

main82666-42780iAXAH5#,MXAA5#202210-202310

82712ASUPPORT, WIRING HARNESS

main82712-42060iAXAH5#201904-202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42B60iAXAH5#,MXAA5#201904-202007

main82817-42L70iAXAH54,MXAA54202310

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-42A90iAXAH5#201904-202007

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-42N70iAXAH54,MXAA54202310

82821ACOVER, CONNECTOR

main82821-50780×2iAXAH5#,MXAA5#201904-202007

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42010iAXAH54202210-202310

mainG921D47020iAXAH52202008-202210

9011906A06

main90119-06A06

9011906A39

main90119-06A39

9167180820

main91671-80820

17 parts on this diagram · 23 diagrams in section
