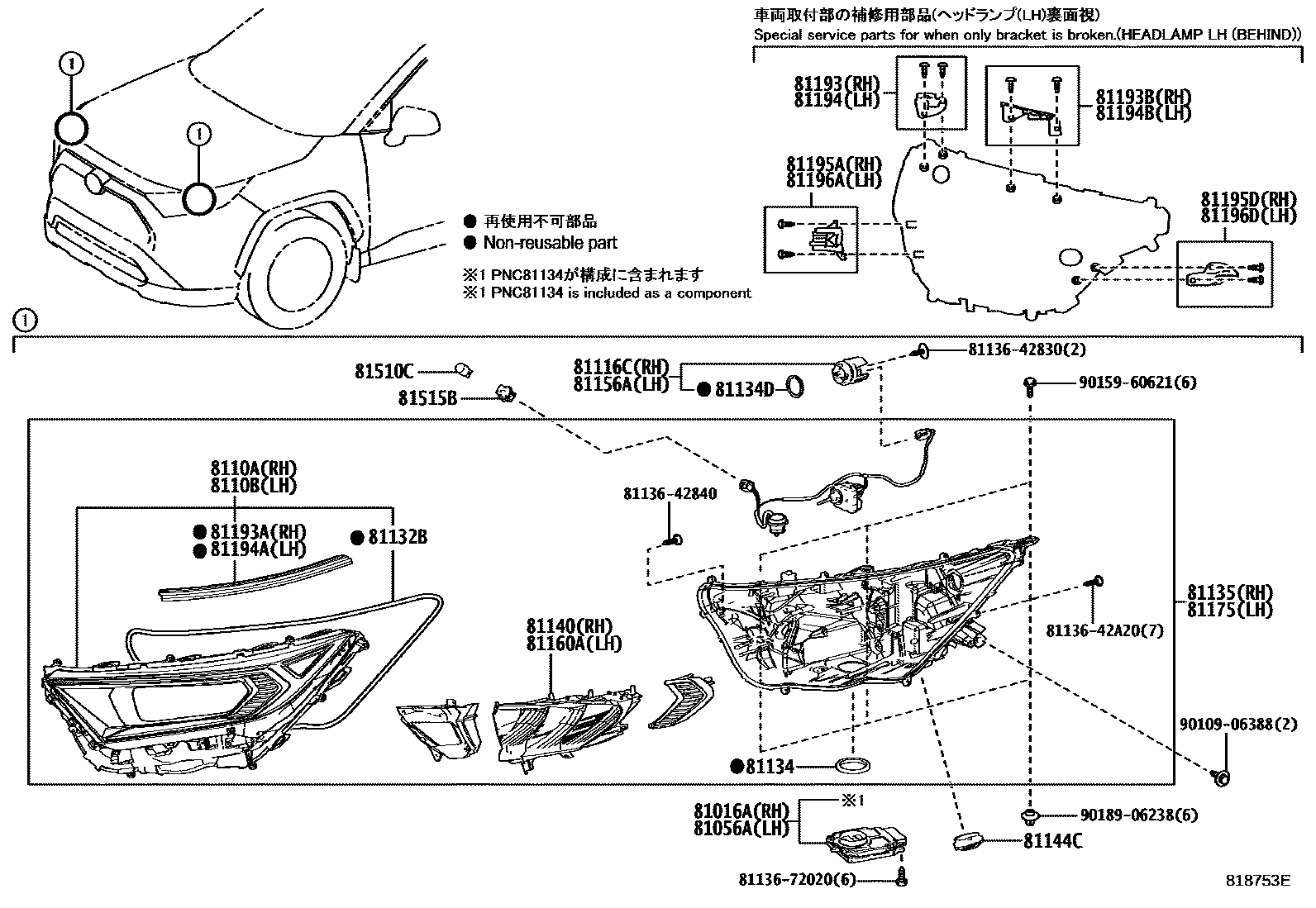

HEADLAMP

0001 1����������������=����� 0003 1����������������=����� 0004 1����������������=LED

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-42830iMXAA5#202008-202210

main81016-42A20iAXAH5#201904-201910

main81016-42A21iAXAH5#202008-202112

main81016-42E00iAXAH5#; MXAA54..ADVEN,G202210-202310

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-42830iMXAA5#202210-202310

main81056-42A20iAXAH5#201904-201910

main81056-42A21iAXAH5#201910-202007

main81056-42E00iAXAH5#; MXAA54..ADVEN,G202112-202210

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-42830iMXAA5#202008-202101

main8110A-42832iMXAA52202310-202410

main8110A-42880iMXAA5#201904-202007

main8110A-42A20iAXAH5#202008-202101

main8110A-42A23iAXAH5#202101-202112

main8110A-42A70iAXAH5#201904-202007

main8110A-42E00iAXAH5#; MXAA54..ADVEN,G202210-202310

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-42830iMXAA5#202008-202101

main8110B-42832iMXAA52202310-202410

main8110B-42880iMXAA5#201904-202007

main8110B-42A20iAXAH5#202008-202101

main8110B-42A23iAXAH5#202101-202112

main8110B-42A70iAXAH5#201904-202007

main8110B-42E00iAXAH5#; MXAA54..ADVEN,G202112-202210

81116CBRACKET, HEADLAMP, RH

main81116-42830iMXAA5#201904-202007

81132BGASKET, HEADLAMP LENS

main81132-42830×2iAXAH5#,MXAA5#201904-202007

81134GASKET, HEADLAMP

main81134-42830iAXAH5#,MXAA5#201904-202007

81134DGASKET, HEADLAMP, NO.2

main81134-42840×2iMXAA5#201904-202007

81135UNIT ASSY, HEADLAMP, RH

main81145-42831iMXAA5#202008-202101

main81145-42832iMXAA54202310

main81145-42880iMXAA5#201904-202004

main81145-42881iMXAA5#202004-202007

main81145-42A22iAXAH5#202008-202101

main81145-42A23iAXAH5#202101-202112

main81145-42A70iAXAH5#201904-201910

main81145-42A71iAXAH5#201910-202004

main81145-42A72iAXAH5#202004-202007

main81145-42E00iAXAH5#; MXAA54..ADVEN,G202210-202310

81140UNIT ASSY, HEADLAMP LED, RH

main81140-42830iMXAA5#202210-202310

main81140-42A20iAXAH5#201904-201910

main81140-42A21iAXAH5#202008-202101

main81140-42E00iAXAH5#; MXAA54..ADVEN,G202112-202210

81144CCOVER, HEADLAMP SOCKET

main81135-42830×2iAXAH5#202008-202112

81156ABRACKET, HEADLAMP, LH

main81156-42830iMXAA54202310

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-42830iMXAA5#202008-202210

main81160-42A20iAXAH5#201904-201910

main81160-42A21iAXAH5#202101-202112

main81160-42E00iAXAH5#; MXAA54..ADVEN,G202112-202210

81175UNIT ASSY, HEADLAMP, LH

main81185-42831iMXAA5#202008-202101

main81185-42832iMXAA5#202210-202310

main81185-42880iMXAA5#201904-202004

main81185-42881iMXAA5#202004-202007

main81185-42A22iAXAH5#202008-202101

main81185-42A23iAXAH5#202101-202112

main81185-42A70iAXAH5#201904-201910

main81185-42A71iAXAH5#201910-202004

main81185-42A72iAXAH5#202004-202007

main81185-42E00iAXAH52202310-202410

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050iAXAH5#,MXAA5#201904-202007

81193APROTECTOR, HEADLAMP, RH

main81117-42830iAXAH5#,MXAA5#201904-202007

main81117-42831iAXAH5#202108-202209

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060iAXAH5#,MXAA5#201904-202007

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050iAXAH5#,MXAA5#202008-202210

81194APROTECTOR, HEADLAMP, LH

main81157-42830iAXAH5#,MXAA5#201904-202007

main81157-42831iAXAH5#202108-202209

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060iAXAH5#,MXAA5#201904-202007

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050iAXAH5#,MXAA5#201904-202007

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060iAXAH5#,MXAA5#201904-202007

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050iAXAH5#,MXAA5#201904-202007

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060iAXAH5#,MXAA5#201904-202007

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iAXAH5#,MXAA5#201904-202007

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iAXAH5#,MXAA5#201904-202007

8113642830PROTECTOR, HEADLAMP, NO.1 RH

main81136-42830

8113642840PROTECTOR, HEADLAMP, NO.1 RH

main81136-42840

8113642A20PROTECTOR, HEADLAMP, NO.1 RH

main81136-42A20

8113672020PROTECTOR, HEADLAMP, NO.1 RH

main81136-72020

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

33 parts on this diagram · 3 diagrams in section
