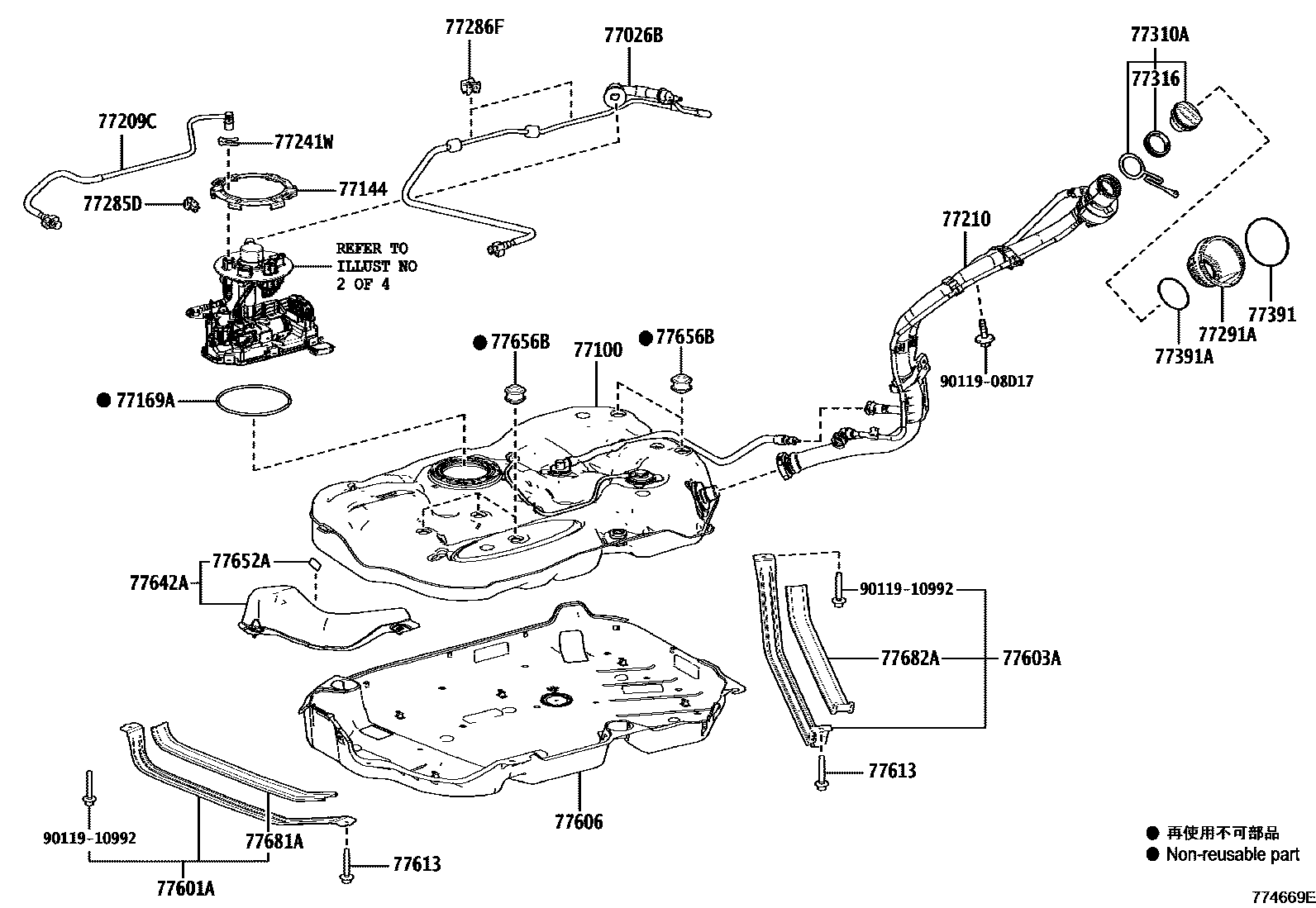

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1���������������(�����&�����) 0004 1���������������(�����&�����) 0005 1���������� 0006 1���������� 0007 1�������������� 0008 1��������������

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42050iMXAA52202310-202410

main77026-42080iAXAH5#201904-201905

main77026-42081iAXAH54202310

77100TANK ASSY, FUEL

main77001-42310iMXAA5#202008-202210

main77001-42330iAXAH5#201904-202005

main77001-42340iMXAA52202310-202410

main77001-42350iAXAH5#202210-202310

main77001-48360iAXAH5#202006-202007

77144RETAINER, FUEL PUMP GAUGE

main77144-30030×2iAXAH5#; MXAA5#201904-202007

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030×2iAXAH5#; MXAA5#201904-202007

main77169-47040iAXAH5#; MXAA5#202210-202310

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42210iMXAA54202310

main77209-42220iMXAA5#202008-202210

main77209-42230iAXAH5#202210-202310

main77209-42240iAXAH5#201904-201905

main77209-42241iAXAH5#202008-202210

77210PIPE ASSY, FUEL TANK FILLER

main77210-42190iMXAA5#201904-202007

main77210-42210iAXAH5#201904-202003

main77210-42211iAXAH5#202004-202007

main77210-42240iMXAA54202310

main77210-42250iAXAH52202310-202410

77241WCLIP, TUBE JOINT

main77241-33011iAXAH5#,MXAA5#201904-202007

main77241-60550iAXAH54,MXAA54202310

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAXAH5#,MXAA5#202210-202310

77286FCLAMP, FUEL TUBE, NO.2

main77286-30180×2iAXAH5#202008-202210

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-42060iAXAH52,MXAA52202310-202410

77310ACAP ASSY, FUEL TANK

main77300-12020iAXAH5#,MXAA5#202008-202210

main77300-48020iAXAH52,MXAA52202310-202410

77316GASKET, FUEL TANK CAP

main77316-52040iAXAH5#,MXAA5#201904-202007

main77316-75020iAXAH5#,MXAA5#202210-202310

77391RING, FUEL INLET BOX

main77391-42010iAXAH5#,MXAA5#201904-202007

77391ARING, FUEL INLET BOX

main77391-12020iAXAH5#,MXAA5#201904-202007

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120iAXAH5#201904-202007

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-42050iAXAH5#201904-202007

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42030iMXAA52202310-202410

main77606-42060iAXAH5#202008-202210

77613BOLT, FUEL TANK BAND SET

main90119-10A05×2iAXAH52; MXAA52202310-202410

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAXAH5#201904-202007

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iMXAA5#201904-202007

main77652-42040iAXAH5#202210-202310

77656BCUSHION, FUEL TANK, NO.6

main77656-33010×5iAXAH5#202210-202310

77681ASEAT, FUEL TANK BAND

main77681-42040iAXAH5#202008-202210

main77682-75010×2iMXAA54202310

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAXAH5#201904-202007

9011908D17

main90119-08D17

9011910992

main90119-10992

25 parts on this diagram · 8 diagrams in section
