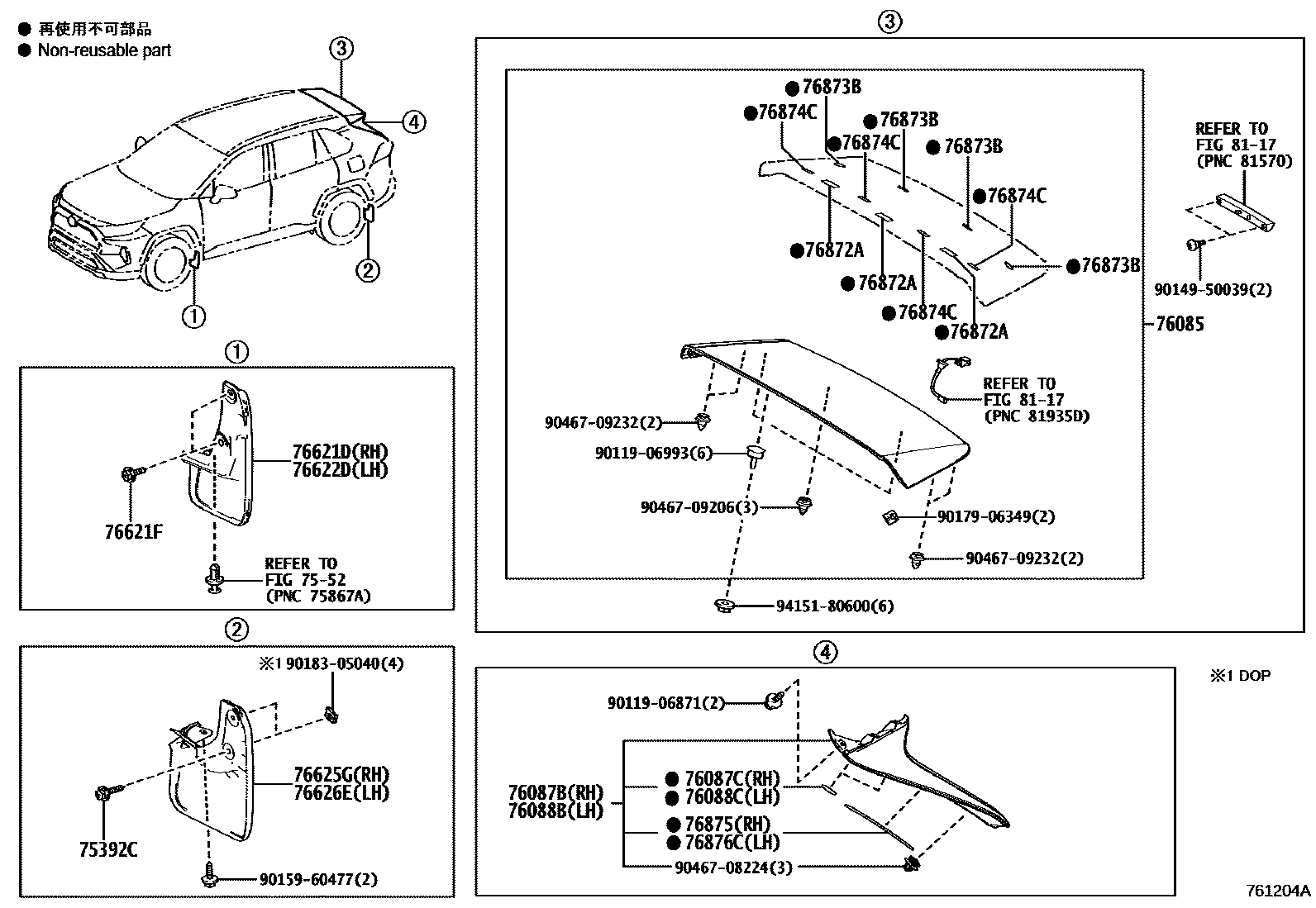

SPOILER & SIDE MUDGUARD

0001 1 0002 1

75392CRETAINER, OUTSIDE MOULDING

main75392-42030×4iAXAH5#,MXAA5#201904-202007

7552MOULDING

→ Go to FIG 75-52

76085SPOILER SUB-ASSY, REAR

main76085-42907-A0iMXAA54..ADVEN202008-202210

SUPER WHITE 2,040

main76085-42907-A1iAXAH5#,MXAA5#..G,HBDG,HBDX,X202008-202210

WHITE PEARL CS.,070

main76085-42907-A2iAXAH5#,MXAA5#..G,X202210-202310

PLATINUM WHITE PEARL MC.,089

main76085-42907-B2iAXAH5#,MXAA5#202008-202210

GRAY ME.,1G3

main76085-42907-B4iAXAH5#,MXAA5#..G,HBDG,HBDX,X201904-202007

SILVER ME.,1D6

main76085-42907-B5iMXAA54..ADVEN202008-202210

ASH GRAY ME.,2QU ,2QV ,2QW ,2QX ,2TU

main76085-42907-C2iAXAH5#,MXAA5#202008-202210

ATTITUDE BLACK MC.,218

main76085-42907-D4iAXAH54,MXAA54202310

RED MC.,3T3

main76085-42907-G3iAXAH5#,MXAA5#..ADVEN,HBDX,X201904-202007

URBAN KHAKI,6X3

main76085-42907-J4iAXAH5#,MXAA5#..ADVEN,HBDX,X201904-202007

CYAN METALLIC,8W9

main76085-42907-J5iAXAH52,MXAA52202310-202410

DK.BLUE MC.,8X8

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-42050iMXAA54..G;AXAH5#..G,X202210-202310

main76087-42060iAXAH54..ADVEN;MXAA54..ADVEN,X202310

76087CPROTECTOR, REAR SIDE SPOILER

main87268-42010×2iAXAH5#,MXAA5#202008-202210

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-42050iAXAH52202310-202410

main76088-42060iAXAH54..ADVEN;MXAA5#..ADVEN,X202210-202310

76088CPROTECTOR, REAR SIDE SPOILER

main87268-42010×2iAXAH5#,MXAA5#201904-202007

76621DMUDGUARD, FRONT FENDER, RH

main76621-42130iAXAH5#,MXAA5#201904-202007

76621FSCREW, NO.1

main90159-60602×4iAXAH5#,MXAA5#201904-202007

76622DMUDGUARD, FRONT FENDER, LH

main76622-42130iAXAH5#,MXAA5#201904-202007

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-42160iAXAH5#,MXAA5#201904-202007

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-42220iAXAH5#,MXAA5#201904-202007

76872APROTECTOR, REAR SPOILER, NO.1

main76872-42060×3iAXAH5#,MXAA5#201904-202001

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-42020×4iAXAH5#,MXAA5#201904-202007

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-42020×4iAXAH5#,MXAA5#201904-202001

76875PROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAH5#,MXAA5#201904-202007

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAH5#,MXAA5#201904-202007

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906871

main90119-06871

9011906993

main90119-06993

9014950039

main90149-50039

9015960477

main90159-60477

9017906349

main90179-06349

9018305040

main90183-05040

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

9415180600

main94151-80600

28 parts on this diagram · 2 diagrams in section
