SEAT & SEAT TRACK

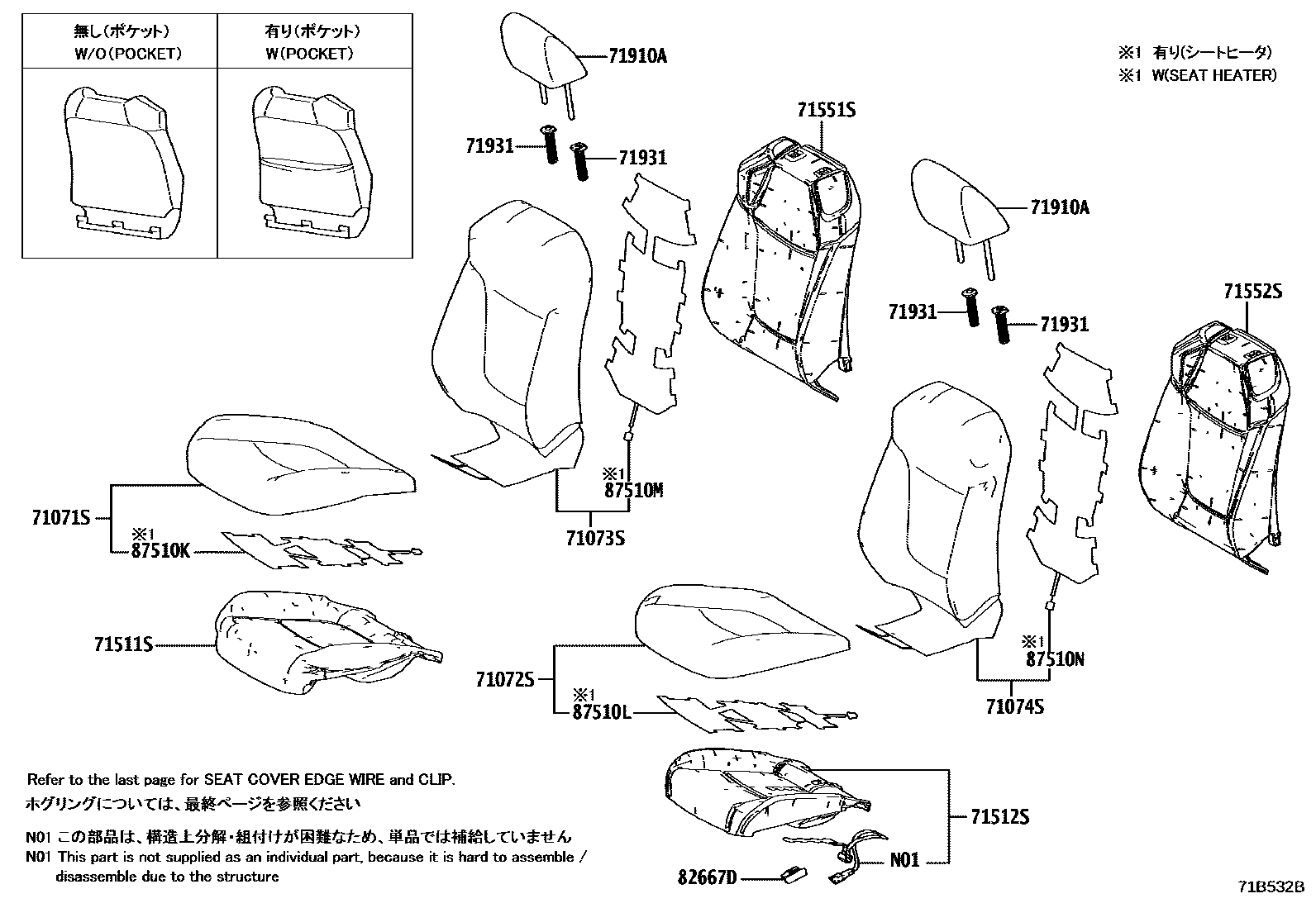

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-42880-A3i201904-202007
GALLANT BEIGE,TRIM4#
main71071-42880-B3i201904-202007
NEUTRAL WARM GRAY,TRIM1#
main71071-42880-C3i201904-202007
BLACK,TRIM2#
main71071-42881-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42881-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71071-42881-C5i202008-202210
BLACK,TRIM2#
main71071-42881-C6i202210-202310
BLACK,TRIM2#
main71071-42A00-A2i201904-202007
GALLANT BEIGE,TRIM4#
main71071-42A00-A3i202008-202112
GALLANT BEIGE,TRIM4#
main71071-42A00-B2i201904-202007
GRAY,TRIM1#
main71071-42A00-B4i202008-202112
GRAY,TRIM1#
main71071-42A00-C3i201904-202007
BLACK,TRIM2#
main71071-42A00-C4i202008-202112
BLACK,TRIM2#
main71071-42A30-20supersedes 71071-42E70-C4i202112-202210
BLACK,TRIM2#
main71071-42A30-21supersedes 71071-42E70-C6i202112-202210
ORCHID BROWN,TRIM4#
main71071-42A30-24supersedes 71071-42E70-C9i202112-202210
BLACK/RED,TRIM20
main71071-42A30-25i202210-202310
BLACK/RED,TRIM20
main71071-42A30-26i202310
BLACK/ORANGE,TRIM20
main71071-42A30-27i202310
ORCHID BROWN/ORANGE,TRIM4#
main71071-42L00-C0i202112-202210
BLACK,TRIM2#
main71071-42L00-C1i202310
BLACK,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-42730-A3i201904-202007
GALLANT BEIGE,TRIM4#
main71072-42730-B3i201904-202007
NEUTRAL WARM GRAY,TRIM1#
main71072-42730-C3i201904-202007
BLACK,TRIM2#
main71072-42731-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71072-42731-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71072-42731-C5i202008-202210
BLACK,TRIM2#
main71072-42731-C6i202310-202410
BLACK,TRIM2#
main71072-42A00-A2i201904-202007
GALLANT BEIGE,TRIM4#
main71072-42A00-A3i202008-202112
GALLANT BEIGE,TRIM4#
main71072-42A00-B2i201904-202007
GRAY,TRIM1#
main71072-42A00-B4i202008-202112
GRAY,TRIM1#
main71072-42A00-C3i201904-202007
BLACK,TRIM2#
main71072-42A00-C4i202008-202112
BLACK,TRIM2#
main71072-42A50-20supersedes 71072-42C20-C4i202112-202210
BLACK,TRIM2#
main71072-42A50-21supersedes 71072-42C20-C6i202112-202210
ORCHID BROWN,TRIM4#
main71072-42A50-24supersedes 71072-42C20-C9i202112-202210
BLACK/RED,TRIM20
main71072-42A50-25i202210-202310
BLACK/RED,TRIM20
main71072-42A50-26i202310
BLACK/ORANGE,TRIM20
main71072-42A50-27i202310
ORCHID BROWN/ORANGE,TRIM4#
main71072-42G90-C0i202112-202210
BLACK/LT.GRAY,TRIM2#
main71072-42G90-C1i202310
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-42F10-A0i201904-202007
GALLANT BEIGE,TRIM4#
main71073-42F10-B0i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71073-42F10-C1i202008-202210
BLACK,TRIM2#
main71073-42F10-C3i202310-202410
BLACK,TRIM2#
main71073-42J10-A0i202008-202112
GALLANT BEIGE,TRIM4#
main71073-42J10-B1i202008-202112
GRAY,TRIM1#
main71073-42J10-C0i201904-202007
BLACK,TRIM2#
main71073-42J50-C0supersedes 71073-42J70-C0i202112-202210
BLACK,TRIM2#
main71073-42J50-C1supersedes 71073-42J70-C1i202112-202210
ORCHID BROWN,TRIM4#
main71073-42J50-C5i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71073-42N90-C0i202112-202210
BLACK/LT.GRAY,TRIM2#
main71073-42N90-C2i202210-202310
BLACK,TRIM2#
main71073-42L10-C0supersedes 71073-42J70-C0i202010-202112
main71073-42L20-C0supersedes 71073-42J70-C0i202112-202210
main71073-42L20-C2supersedes 71073-42J50-C4i202210-202310
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-42670-A4i201904-202007
GALLANT BEIGE,TRIM4#
main71074-42670-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71074-42670-C5i201904-202007
BLACK,TRIM2#
main71074-42670-C7i202310
BLACK,TRIM2#
main71074-42730-A3i201904-202007
GALLANT BEIGE,TRIM4#
main71074-42730-B3i202008-202112
GRAY,TRIM1#
main71074-42730-C3i202008-202112
BLACK,TRIM2#
main71074-42890-25i202310
ORCHID BROWN/ORANGE,TRIM4#
main71074-42890-C8supersedes 71074-42880-C6i202112-202210
BLACK,TRIM2#
main71074-42890-C9supersedes 71074-42880-C7i202112-202210
ORCHID BROWN,TRIM4#
main71074-42G30-C0i202112-202210
BLACK/LT.GRAY,TRIM2#
main71074-42G30-C2i202210-202310
BLACK,TRIM2#
main71074-42D50-C0supersedes 71074-42880-C6i202010-202112
main71074-42D60-C0supersedes 71074-42880-C6i202112-202210
main71074-42D60-C2supersedes 71074-42890-24i202210-202310
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-42240i202210-202310
main71511-42250i201904-202007
main71511-42260i202310
main71511-42280supersedes 71511-42270i202112-202210
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-42030i201904-202007
main71502-42040i202210-202310
main71502-42060supersedes 71502-42050i202112-202210
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-42320i202210-202310
main71551-42340i202210-202310
main71551-42380supersedes 71551-42360i202112-202210
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-42200i202210-202310
main71552-42210i202210-202310
main71552-42240supersedes 71552-42230i202112-202210
71910AHEADREST ASSY, FRONT SEAT
main71910-42380-A1×2i202008-202112
GALLANT BEIGE,TRIM4#
main71910-42380-B1×2i201904-202007
NEUTRAL WARM GRAY,TRIM1#
main71910-42380-C1×2i202210-202310
BLACK,TRIM2#
main71910-42410-A2×2i201904-202007
GALLANT BEIGE,TRIM4#
main71910-42410-B2×2i202008-202112
GRAY,TRIM1#
main71910-42410-C3×2i202008-202210
BLACK,TRIM2#
main71910-42440-C4×2i202310
BLACK,TRIM20
main71910-42440-C7×2supersedes 71910-42440-C4i202008-202210
BLACK/RED,TRIM20
main71910-42440-E4×2i202310
ORCHID BROWN,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i201904-202007
main71931-47030-C4×2supersedes 71931-47030-C4i202210-202310
82667DHOLDER, CONNECTOR
main82666-47630i201904-202007
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-12410i202008-202112
main87510-42260i202112-202210
main87510-42270i202310
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-12400i202008-202112
main87510-42260i202112-202210
main87510-42270i202112-202210
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-12080i202008-202112
main87530-42050i202112-202210
main87530-42060i202210-202310
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-12080i201904-202007
main87530-42050i202310
main87530-42060i202310

15 parts on this diagram · 12 diagrams in section
