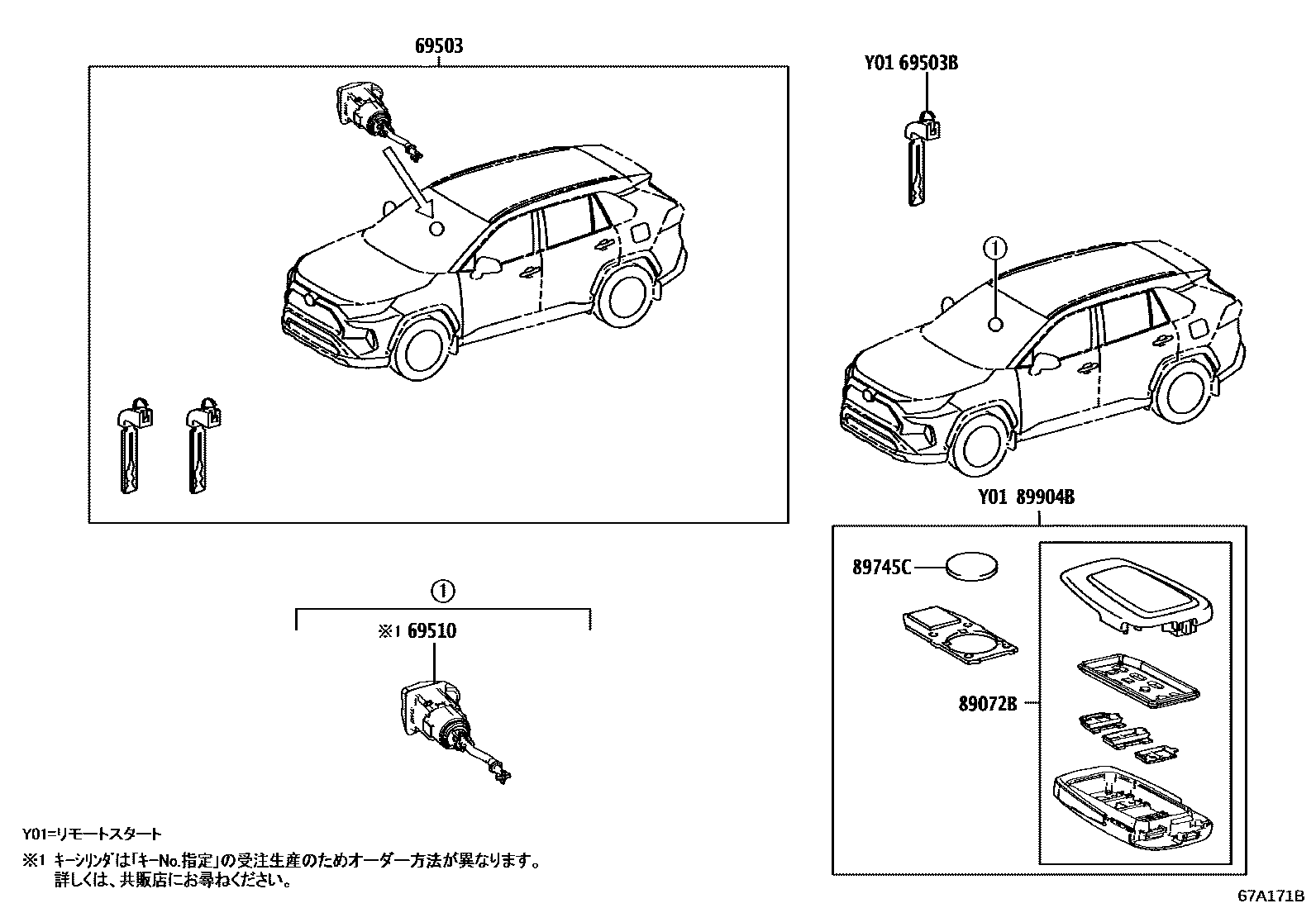

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-42A00iAXAH52,MXAA52202310-202410

69503BKEY, CUT

main69515-16100×2iAXAH5#,MXAA5#202102-202210

main69515-47020×2iAXAH5#,MXAA5#202008-202101

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-42110iAXAH5#,MXAA5#202210-202310

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-42810×2iAXAH52,MXAA52202310-202410

main89072-42820×2iAXAH5#..HBDX201904-202007

main89072-42830×2iAXAH54,MXAA54..ADVEN; AXAH54,MXAA54..G202310

main89072-42840×2iAXAH54..HBDG202008-202210

89745CBATTERY, TRANSMITTER

main89745-45010iAXAH5#,MXAA5#201904-202007

main89745-50020iAXAH54,MXAA54202310

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-42090×2iMXAA5#..ADVEN,X201904-202007

main8990H-42100×2iAXAH5#..HBDX201904-202007

main8990H-42110×2iMXAA54..ADVEN; MXAA54..G201904-202007

main8990H-42120×2iAXAH54..HBDG201904-202007

main8990H-42290iMXAA5#..ADVEN,X202008-202210

main8990H-42300iAXAH5#..ADVEN,HBDX202008-202210

main8990H-42310iMXAA54..ADVEN; MXAA54..G202008-202210

main8990H-42320iAXAH54..HBDG202008-202210

6 parts on this diagram · 1 diagram in section
