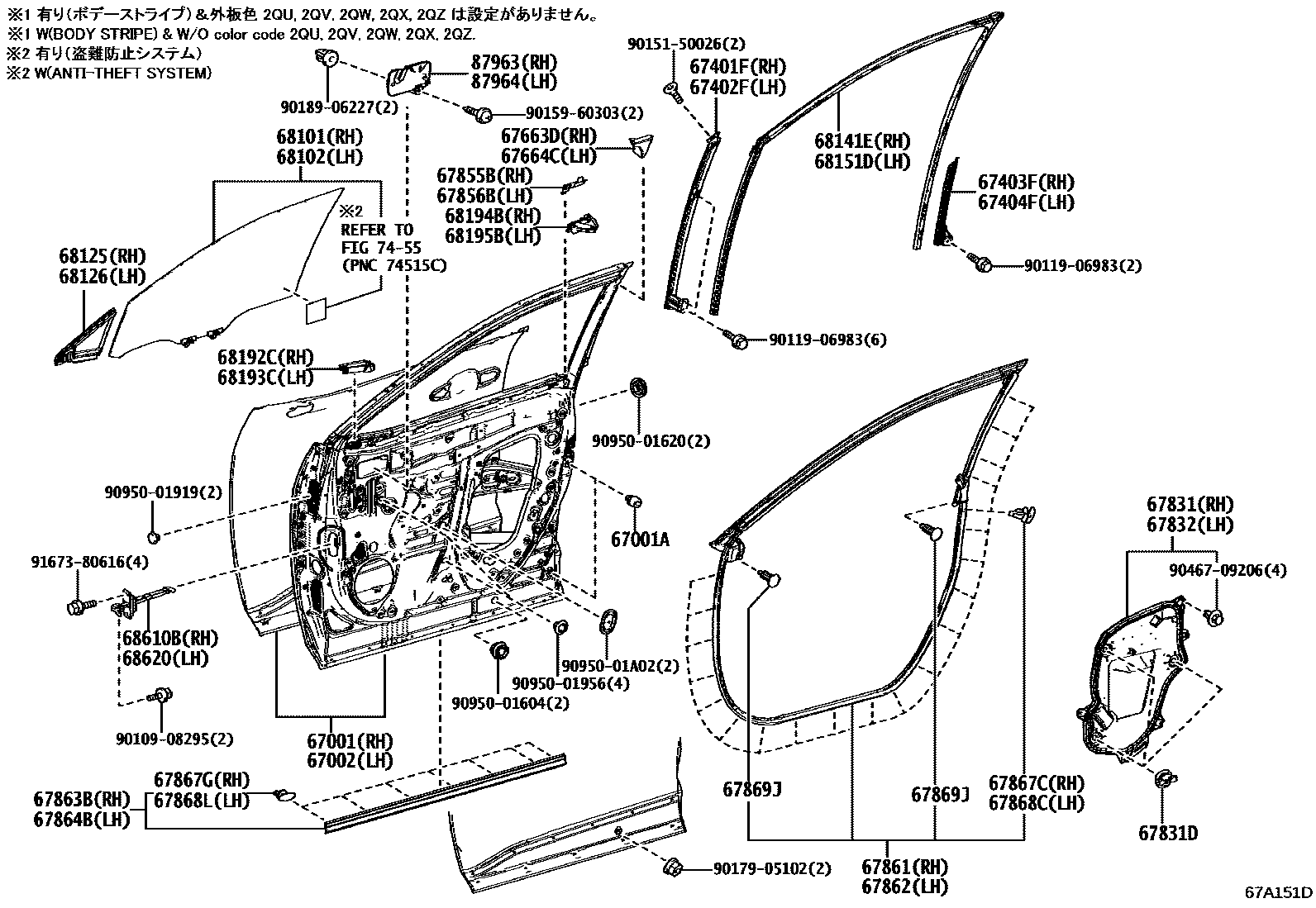

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-42160iAXAH5#,MXAA5#202008-202103

main67001-42161iAXAH52,MXAA52202310-202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4iAXAH5#,MXAA5#201904-202007

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-42180iAXAH5#,MXAA5#201904-202007

main67002-42181iAXAH5#,MXAA5#202103-202210

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-42030iAXAH5#,MXAA5#201904-202007

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-42030iAXAH54,MXAA54202310

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42050iAXAH5#,MXAA5#202008-202210

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42050iAXAH5#,MXAA5#201904-202007

67663DGARNISH, DOOR FRAME, RH

main67663-42030iAXAH5#,MXAA5#201904-202007

67664CGARNISH, DOOR FRAME, LH

main67664-42030iAXAH5#,MXAA5#202008-202210

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42090iAXAH52,MXAA52202310-202410

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-42010×6iAXAH52,MXAA52202404-202410

main67869-47010×6iAXAH5#,MXAA5#201904-202007

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42040iAXAH54,MXAA54202310

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-42030iAXAH5#,MXAA5#202008-202210

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-42030iAXAH5#,MXAA5#201904-202007

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42130supersedes 67861-42120iAXAH5#,MXAA5#202210-202310

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42130supersedes 67862-42120iAXAH5#,MXAA5#202210-202310

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-42040iAXAH5#,MXAA5#201904-202007

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-42030iAXAH5#,MXAA5#201904-202007

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×21iAXAH5#,MXAA5#202210-202310

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×7iAXAH52,MXAA52202310-202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×21iAXAH52,MXAA52202310-202410

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×7iAXAH5#,MXAA5#201904-202007

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×4iAXAH5#,MXAA5#201904-202007

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-42270supersedes 68101-42280iAXAH5#,MXAA5#201904-202007

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-42280supersedes 68102-42290iAXAH5#,MXAA5#202008-202210

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-42030supersedes 68125-42020iAXAH5#,MXAA5#202210-202310

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-42030supersedes 68126-42020iAXAH5#,MXAA5#202210-202310

68141ERUN, FRONT DOOR GLASS, RH

main68141-42121iAXAH5#,MXAA5#201904-202007

68151DRUN, FRONT DOOR GLASS, LH

main68151-42121iAXAH5#,MXAA5#201904-202007

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-42010iAXAH5#,MXAA5#201904-202007

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-42010iAXAH5#,MXAA5#201904-202007

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-42010iAXAH5#,MXAA5#201904-202007

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-42010iAXAH5#,MXAA5#201904-202007

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42060iAXAH5#,MXAA5#201904-202007

68620CHECK ASSY, FRONT DOOR, LH

main68610-42060iAXAH5#,MXAA5#201904-202007

7455CAUTION PLATE

→ Go to FIG 74-55

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-42010iAXAH5#,MXAA5#201904-202007

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-42010iAXAH5#,MXAA5#201904-202007

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9017905102

main90179-05102

9018906227

main90189-06227

9046709206

main90467-09206

9095001604

main90950-01604

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

51 parts on this diagram · 2 diagrams in section
