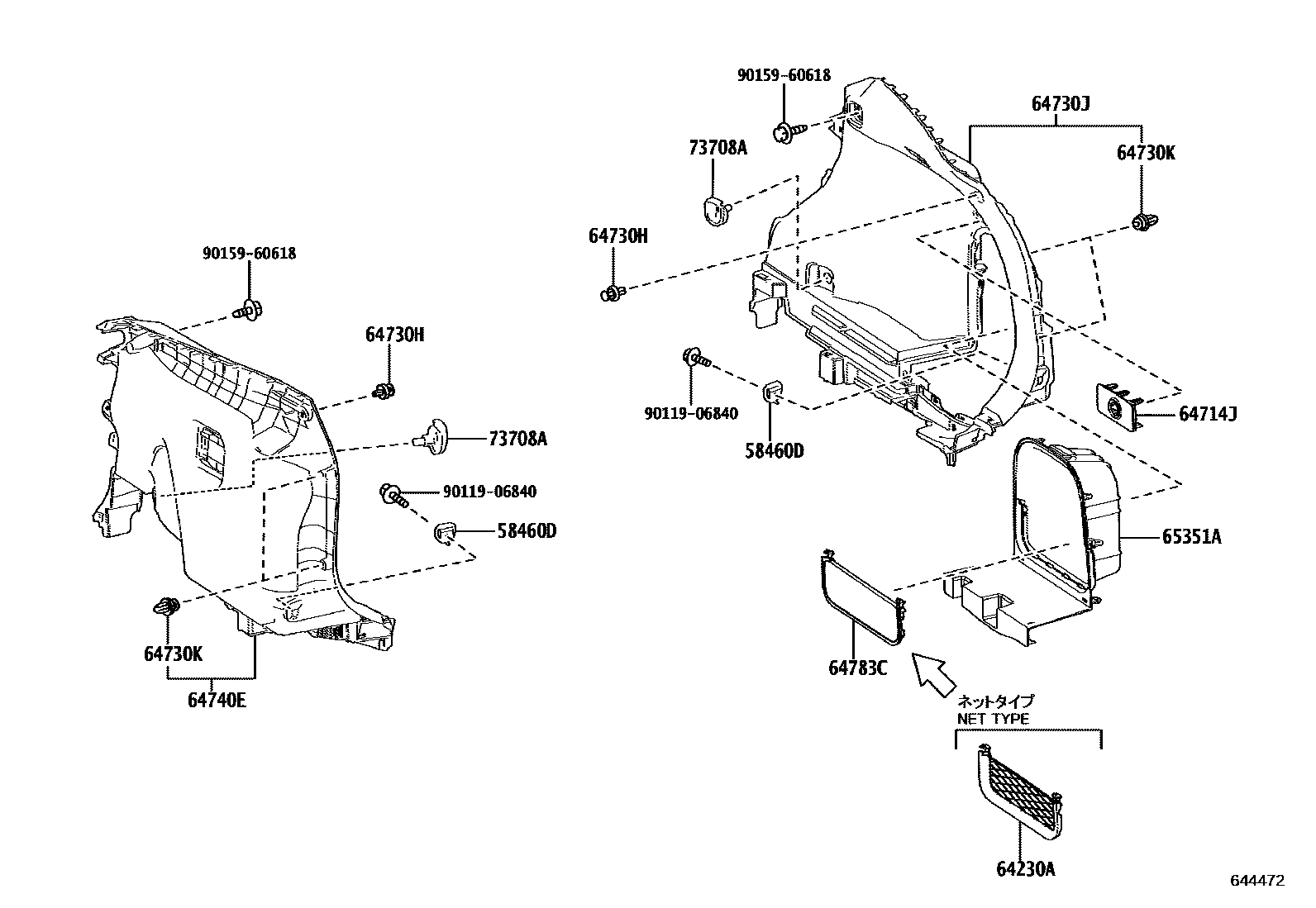

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAXAH5#,MXAA5#201904-202410

64230ANET ASSY, ROOM PARTITION

main64230-42030-C0iAXAH54,MXAA54..ADVEN202210-202310

DARK GRAY,TRIM2#

main64230-42030-C0iMXAA54..ADVEN201904-202310

DARK GRAY,TRIM2#,4#

main64230-42030-C0iMXAA54..ADVEN201904-202210

DARK GRAY,TRIM1#,2#,4#

64714JCOVER, DECK SIDE TRIM, RH

main64714-42050-C0iAXAH5#,MXAA5#..HBDX,X201904-202007

BLACK,TRIM1#,2#,4#

main64714-42070-C0iMXAA54..ADVEN201904-202310

BLACK,TRIM2#,4#

main64714-42070-C0iAXAH5#,MXAA5#..HBDX,X201904-202007

main64714-42070-C0iAXAH5#,MXAA5#..HBDX,X201904-202210

BLACK,TRIM1#,2#,4#

main64714-42070-C0iAXAH54,MXAA54..ADVEN202210-202410

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09242iAXAH5#,MXAA5#201904-202410

64730JPANEL ASSY, DECK TRIM SIDE, RH

main64730-42220-C0iMXAA54..ADVEN201904-202004

BLACK,TRIM1#,2#,4#

sub64730-42221

main64730-42220-C0iMXAA5#..G,X201904-202004

BLACK,TRIM2#,4#

sub64730-42221

main64730-42221-C0iMXAA5#..G,X202005-202210

BLACK,TRIM1#,2#,4#

main64730-42221-C0iMXAA54..G,X202210-202410

BLACK,TRIM2#

main64730-42221-C0iMXAA54..ADVEN202005-202310

BLACK,TRIM2#,4#

main64730-42230-C0iAXAH5#201904-202004

BLACK,TRIM1#,2#,4#

sub64730-42231

main64730-42231-C0iAXAH54..G,X202210-202410

BLACK,TRIM2#

main64730-42231-C0iAXAH5#202005-202210

BLACK,TRIM1#,2#,4#

main64730-42231-C0iAXAH54..ADVEN202112-202310

BLACK,TRIM2#,4#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iAXAH5#,MXAA5#201904-202410

64740EPANEL ASSY, DECK TRIM SIDE, LH

main64740-42160-C0iMXAA54..ADVEN201904-202004

BLACK,TRIM2#,4#

sub64740-42161

main64740-42160-C0iMXAA54..ADVEN201904-202004

BLACK,TRIM1#,2#,4#

sub64740-42161

main64740-42161-C0iMXAA54..ADVEN202005-202310

BLACK,TRIM2#,4#

main64740-42161-C0iMXAA54..ADVEN202005-202210

BLACK,TRIM1#,2#,4#

main64740-42161-C0iAXAH54,MXAA54..ADVEN202210-202410

BLACK,TRIM2#

64783CPLATE, DECK TRIM POCKET COVER

main64783-42030-C0iAXAH5#,MXAA5#..HBDX,X201904-202210

BLACK,TRIM1#,2#,4#

main64783-42030-C0iAXAH5#,MXAA5#..X202210-202410

BLACK,TRIM2#

65351ACOVER, BATTERY HOLE

main65351-42010-C0iAXAH5#201904-202210

BLACK,TRIM1#,2#,4#

main65351-42010-C0iAXAH54..ADVEN202112-202310

BLACK,TRIM2#,4#

main65351-42010-C0iAXAH54..ADVEN202210-202410

BLACK,TRIM2#

73708ABRACKET SET, TETHER ANCHOR

main73708-42060-C1iMXAA54..ADVEN201904-202310

BLACK,TRIM2#,4#

sub73708-42060

main73708-42060-C1iMXAA54..ADVEN201904-202210

BLACK,TRIM1#,2#,4#

sub73708-42060

main73708-42060-C1iAXAH54,MXAA54..ADVEN202210-202410

BLACK,TRIM2#

sub73708-42060

9011906840

main90119-06840

9015960618

main90159-60618

12 parts on this diagram · 3 diagrams in section
