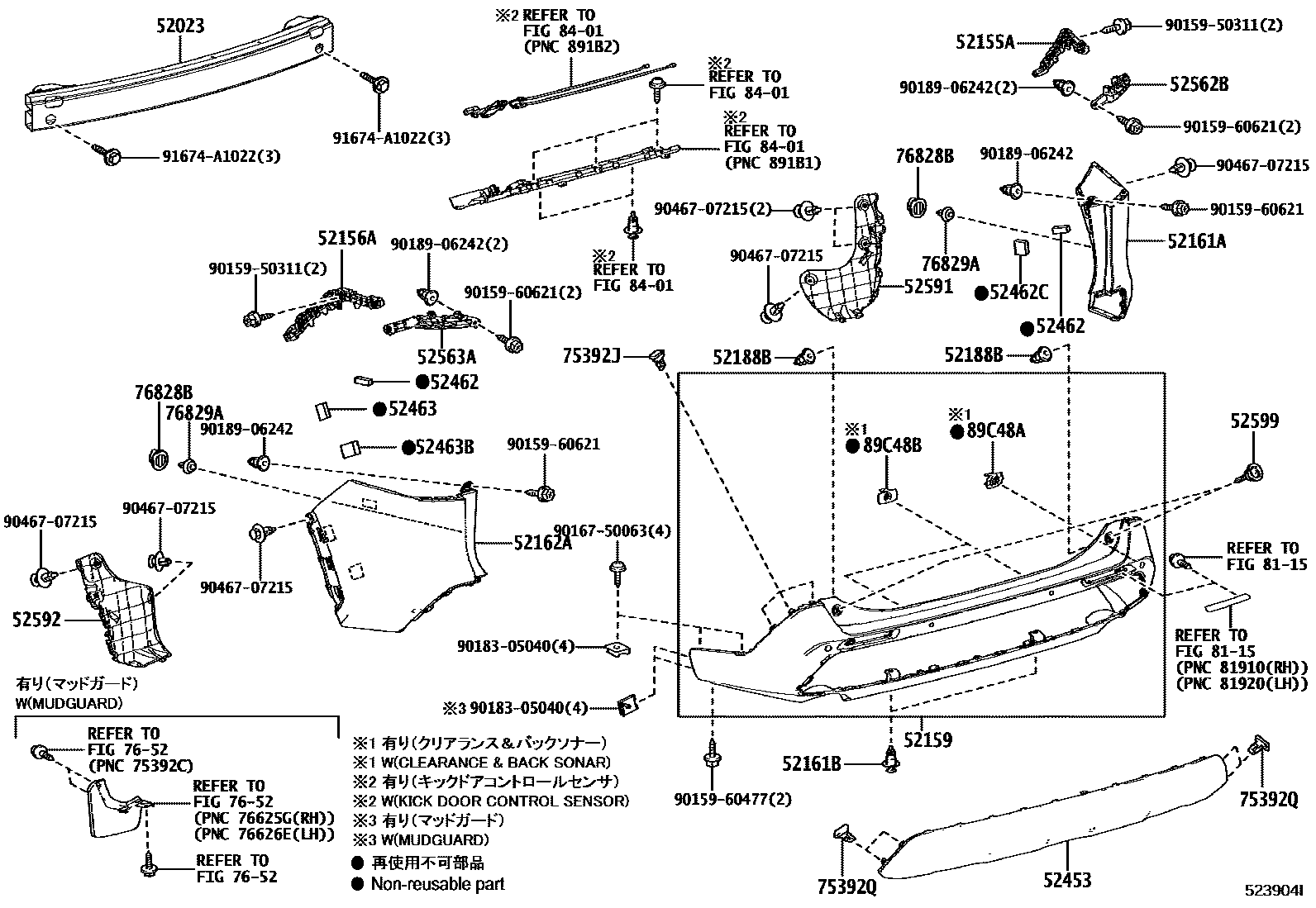

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-42070iAXAH5#,MXAA5#202210-202310

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-42050iAXAH5#,MXAA5#201904-202007

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-42050iAXAH5#,MXAA5#202008-202210

52159COVER, REAR BUMPER

main52159-42938supersedes 52159-42230iAXAH54,MXAA54..G,HBDG; MXAA54..ADVEN201904-202007

main52159-42940supersedes 52159-42220iAXAH5#,MXAA5#..HBDX,X202112-202210

main52159-42954iAXAH54,MXAA54..ADVEN; AXAH54,MXAA54..ADVEN,G; MXAA54..G202310-202501

main52159-42957iAXAH52,MXAA52202310-202311

main52159-42965iAXAH54,MXAA54..X202501

main52159-42966iAXAH54,MXAA54..ADVEN; AXAH54,MXAA54..ADVEN,G; MXAA54..G202501

52161APIECE, REAR BUMPER, RH

main52161-42430-A0iAXAH5#,MXAA5#..HBDX,X201904-202007

SUPER WHITE 2,040

main52161-42430-A1iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-B0iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-B1iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-C0iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-D0iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-J0iAXAH5#,MXAA5#..HBDX,X202008-202112

CYAN METALLIC,8W9

main52161-42430-J1iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42430-J2iAXAH5#,MXAA5#..HBDX,X202112-202210

GRAYISH BLUE,8W2

main52161-42440-A0iMXAA54..ADVEN202008-202210

SUPER WHITE 2,040

main52161-42440-B0iAXAH54,MXAA54..ADVEN202008-202210

GRAY ME.,1G3 ,2QX

main52161-42440-C0iAXAH54,MXAA54..ADVEN202008-202210

ATTITUDE BLACK MC.,218 ,2QW

main52161-42440-J0iMXAA54..ADVEN202008-202112

CYAN METALLIC,2QV ,8W9

main52161-42440-J1iAXAH54,MXAA54..ADVEN202112-202210

GRAYISH BLUE,2TU

main52161-42430-A2iAXAH52,MXAA52202310-202311

main52161-42430-G1iAXAH5#,MXAA5#..HBDX,X201904-202007

main52161-42440-D0iAXAH54,MXAA54..ADVEN202210-202310

main52161-42440-G0iAXAH54,MXAA54..ADVEN202210-202310

52161BPIECE, REAR BUMPER

main52161-16010×2iAXAH5#,MXAA5#201904-202007

52162APIECE, REAR BUMPER, LH

main52162-42440-A0iAXAH5#,MXAA5#..HBDX,X201904-202007

SUPER WHITE 2,040

main52162-42440-A1iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52162-42440-B0iAXAH5#,MXAA5#..G,HBDG,HBDX,X202008-202210

SILVER ME.,1D6

main52162-42440-B1iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52162-42440-C0iAXAH5#,MXAA5#..G,HBDG,HBDX,X; AXAH5#,MXAA5#..HBDX,X201904-202007

main52162-42440-D0iAXAH5#,MXAA5#..G,HBDG,HBDX,X202008-202210

RED MC.,3T3

main52162-42440-J0iAXAH5#,MXAA5#..HBDX,X202008-202112

CYAN METALLIC,8W9

main52162-42440-J1iAXAH5#,MXAA5#..G,HBDG,HBDX,X202008-202210

DK. BLUE MC.,8X8

main52162-42440-J2iAXAH5#,MXAA5#..HBDX,X202112-202210

GRAYISH BLUE,8W2

main52162-42450-A0iMXAA54..ADVEN202008-202210

SUPER WHITE 2,040

main52162-42450-B0iAXAH54,MXAA54..ADVEN202008-202210

GRAY ME.,1G3 ,2QX

main52162-42450-C0iAXAH54,MXAA54..ADVEN202008-202210

ATTITUDE BLACK MC.,218 ,2QW

main52162-42450-J0iMXAA54..ADVEN202008-202112

CYAN METALLIC,2QV ,8W9

main52162-42450-J1iAXAH54,MXAA54..ADVEN202112-202210

GRAYISH BLUE,2TU

main52162-42440-A2iAXAH5#,MXAA5#..G,X; MXAA54..G202210-202310

main52162-42440-G1iAXAH5#,MXAA5#..HBDX,X201904-202007

main52162-42450-D0iAXAH54,MXAA54..ADVEN202210-202310

main52162-42450-G0iAXAH54,MXAA54..ADVEN202310

52188BSPACER, REAR BUMPER MOUNTING

main90189-06228×2iAXAH5#,MXAA5#202008-202210

main52188-33040×2iAXAH54,MXAA54; AXAH54,MXAA54..ADVEN; MXAA54..G202310

52453GUARD, REAR BUMPER, CENTER

main52453-42040-B0iAXAH54,MXAA54..G,HBDG201904-202007

GRAY,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8

main52453-42040-B1iMXAA54..ADVEN201904-202007

BLUISH SILVER ME,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,3T3 ,6X3 ,8W9

main52453-42040-B3iAXAH54,MXAA54..G,HBDG202112-202210

GRAY METALLIC,070 ,1D6 ,1G3 ,218 ,3T3 ,8X8

main52453-42040-B2iMXAA54..ADVEN202008-202210

main52453-WY020iAXAH54,MXAA54..ADVEN202310

52462PAD, REAR BUMPER, RH

main52462-42020×2iAXAH5#,MXAA5#201904-202007

52462CPAD, REAR BUMPER, RH

main52462-42030iAXAH5#,MXAA5#202008-202210

52463PAD, REAR BUMPER, LH

main52463-42010iAXAH5#,MXAA5#201904-202007

52463BPAD, REAR BUMPER, LH

main52463-42020iAXAH5#,MXAA5#201904-202007

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-42060iAXAH5#,MXAA5#201904-202007

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-42050iAXAH5#,MXAA5#201904-202007

52591SEAL, REAR BUMPER SIDE, RH

main52591-42100iAXAH5#,MXAA5#201904-202007

52592SEAL, REAR BUMPER SIDE, LH

main52592-42100iAXAH5#,MXAA5#201904-202007

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iAXAH5#,MXAA5#201904-202007

75392JRETAINER, OUTSIDE MOULDING

main75392-35220×6iAXAH5#,MXAA5#202008-202210

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-35220×4iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

76828BRETAINER, BACK DOOR GARNISH

main76828-60030×2iAXAH5#,MXAA5#201904-202007

76829ARETAINER, BACK DOOR GARNISH

main76829-60020×2iAXAH5#,MXAA5#202008-202210

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-42170-C0iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main89348-42180-C0iMXAA54..ADVEN,X;AXAH5#,MXAA52..HBDX,X202112-202210

main89348-42250-C0iAXAH52,MXAA52202310-202410

main89348-42260-C0iAXAH54,MXAA54202310

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-42440-C0iAXAH54,MXAA54202310-202412

main89348-42450-C0iAXAH54,MXAA54202310-202501

main89348-42740-C0×2iAXAH54,MXAA54202501

DUMMY-MAT BLACK

main89348-58110×2iMXAA54..ADVEN,X;AXAH5#,MXAA52..HBDX,X202112-202210

9015950311

main90159-50311

9015960477

main90159-60477

9015960621

main90159-60621

9016750063

main90167-50063

9018305040

main90183-05040

9018906242

main90189-06242

9046707215

main90467-07215

91674A1022

main91674-A1022

35 parts on this diagram · 2 diagrams in section
