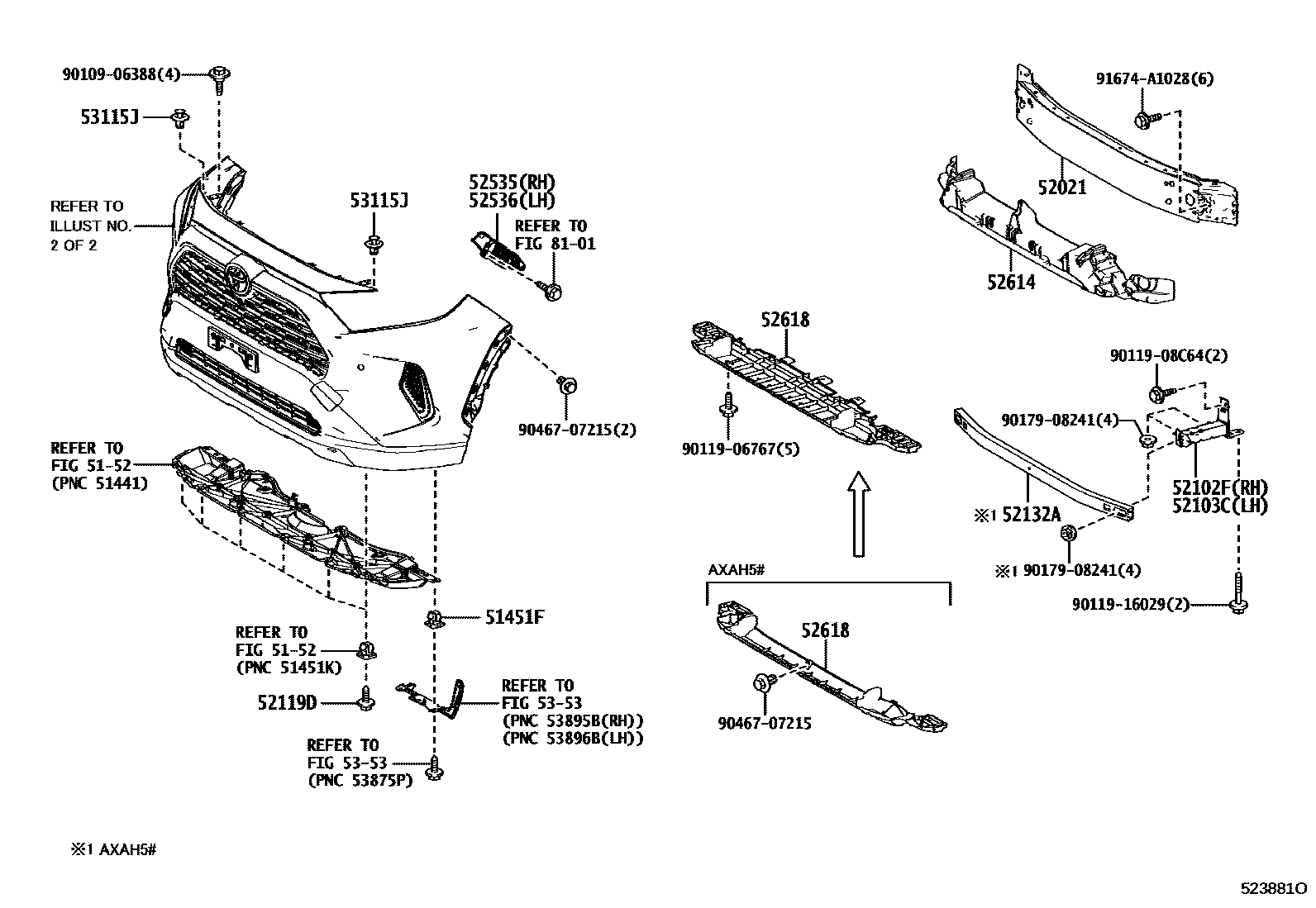

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

51451FGROMMET, NO.1

main90189-06237×2iAXAH5#,MXAA5#; AXAH5#,MXAA5#..X202210-202310

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42200iAXAH5#,MXAA5#201904-202007

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAXAH54202310

main52102-42110iMXAA5#201904-202007

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAXAH52202310-202410

main52103-42110iMXAA5#201904-202007

52119DSCREW, NO.1

main90159-60477×6iAXAH54,MXAA54; AXAH54,MXAA54..X202310

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAXAH5#202008-202210

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42050iAXAH54,MXAA54; AXAH54,MXAA54..X202310

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42080iAXAH5#,MXAA5#; AXAH5#,MXAA5#..HBDX,X202008-202210

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42120iAXAH5#,MXAA5#..G,X202210-202310

main52614-42130iMXAA54..ADVEN201904-202007

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42060iAXAH5#201904-202007

main52618-42080iMXAA5#201904-202007

53115JCLIP, RADIATOR GRILLE BRACKET

main90467-05063-C0×2iAXAH54,MXAA54; AXAH54,MXAA54..X202310

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

8101HEADLAMP

→ Go to FIG 81-01

9010906388

main90109-06388

9011906767

main90119-06767

9011908C64

main90119-08C64

9011916029

main90119-16029

9017908241

main90179-08241

9046707215

main90467-07215

91674A1028

main91674-A1028

21 parts on this diagram · 4 diagrams in section
