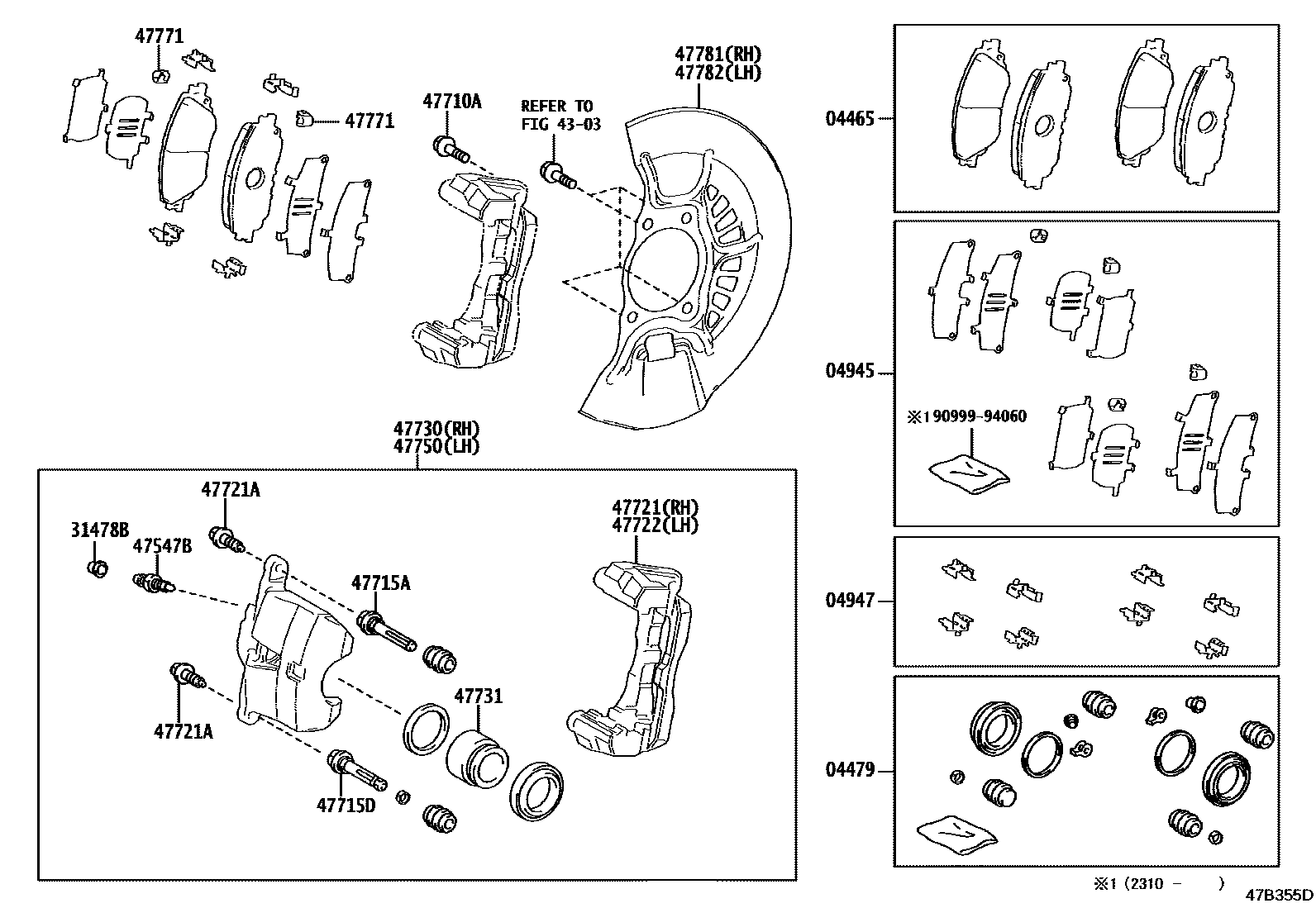

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXAH5#,MXAA5#201904-202410

main04465-33510iAXAH54,MXAA54202411

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXAH5#,MXAA5#201904-202410

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXAH5#,MXAA5#201904-202205

main04945-42100iAXAH5#,MXAA5#202206-202410

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iAXAH5#,MXAA5#201904-202410

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXAH5#,MXAA5#201904-202410

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXAH5#,MXAA5#201904-202410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXAA54;AXAH5#,MXAA52..ADVEN,X201904-202410

main90105-12401iAXAH54..G201904-202310

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iAXAH5#,MXAA5#201904-202410

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXAH52,MXAA52201904-202410

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXAH5#,MXAA5#201904-202410

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAXAH5#,MXAA5#201904-202410

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXAH5#,MXAA5#201904-202410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXAH5#,MXAA5#201904-202410

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXAH5#,MXAA5#201904-202410

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXAH5#,MXAA5#201904-202410

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXAH5#,MXAA5#201904-202012

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXAH5#,MXAA5#201904-202410

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXAH5#,MXAA5#201904-202410

9099994060

main90999-94060

20 parts on this diagram · 1 diagram in section
