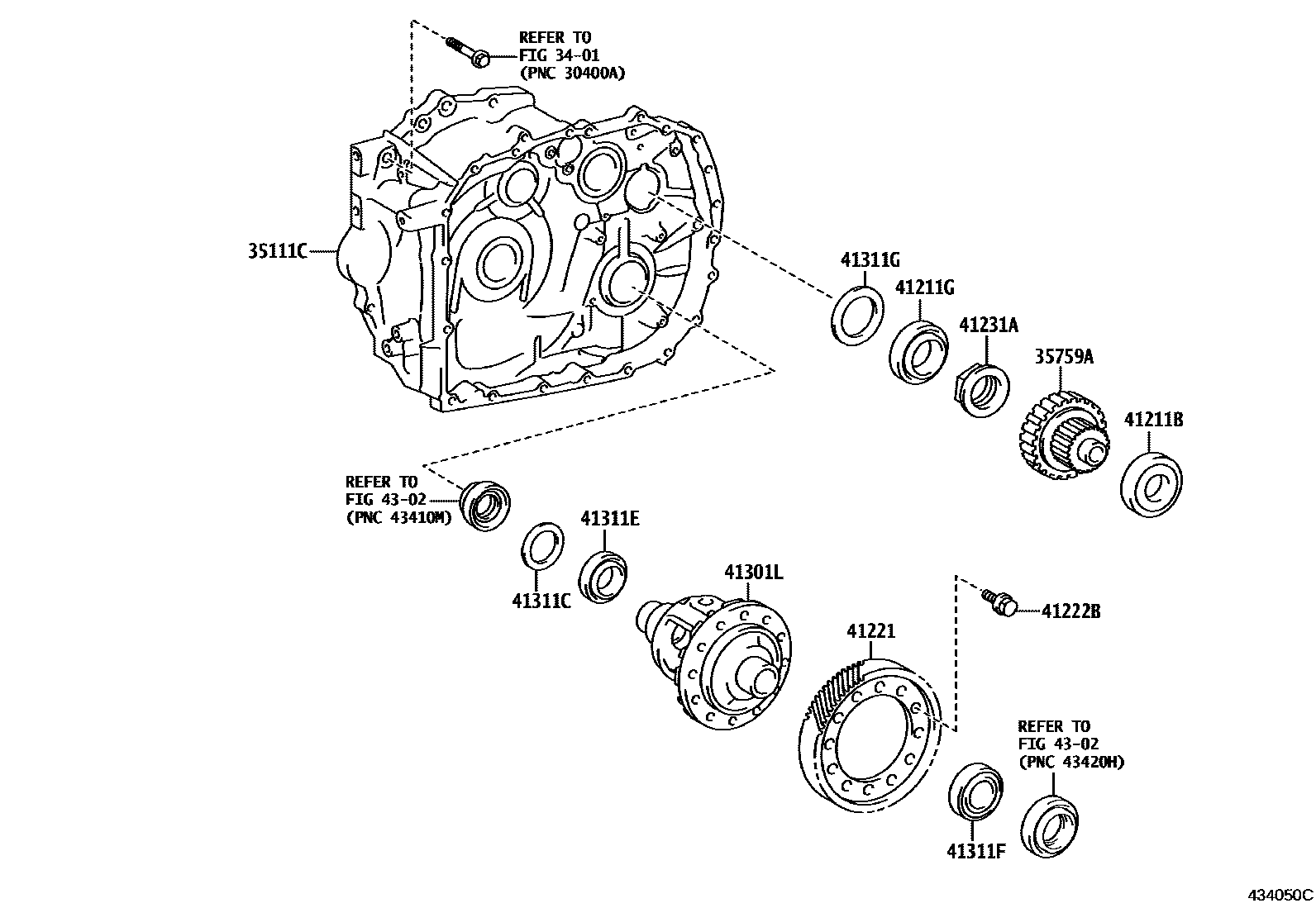

FRONT AXLE HOUSING & DIFFERENTIAL
3401TRANSAXLE ASSY(CVT)
35111CHOUSING, TRANSAXLE
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
4302FRONT DRIVE SHAFT
14 parts on this diagram · 2 diagrams in section
