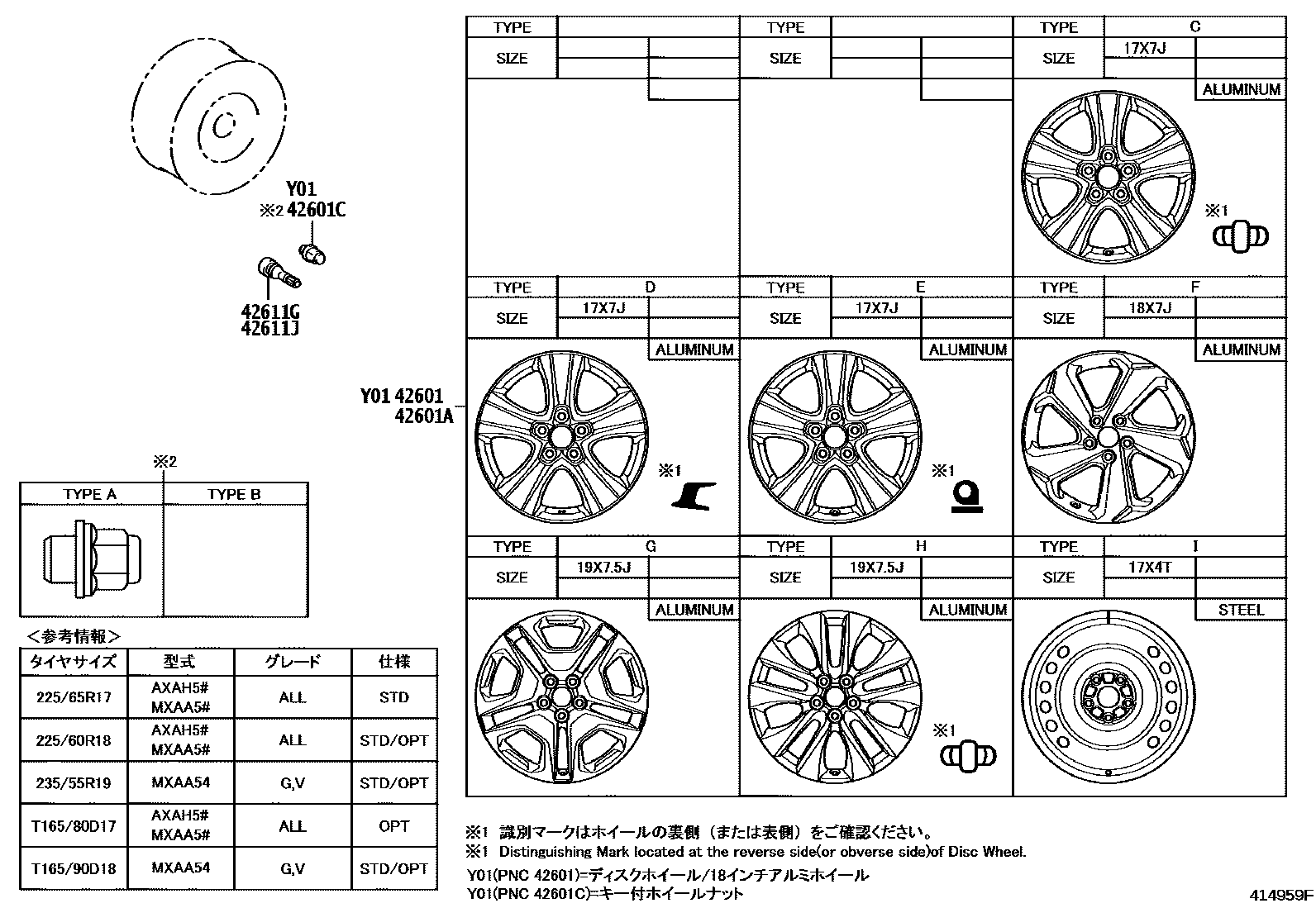

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-42720×4iAXAH5#,MXAA5#..HBDX,X201904-202007

main42611-42760×4iMXAA54..ADVEN201904-202007

main42611-42840×4iAXAH5#,MXAA5#..HBDX,X201904-202007

main42611-42850×4iAXAH5#,MXAA5#..HBDX,X201904-202007

main42611-42A70×4iAXAH54,MXAA54..ADVEN202112-202210

main4261A-42150×4iAXAH5#,MXAA5#..ADVEN,HBDX,X; AXAH54,MXAA54..G,HBDG201904-202007

main4261A-42170×4supersedes 42611-42A50iAXAH54,MXAA54..G; AXAH54,MXAA54..X202310

main42611-YYA50×4supersedes 42611-42A70iAXAH54,MXAA54..ADVEN202310

main4261A-0W010×4iMXAA54..G202310

main4261A-42130×4iMXAA54..G202008-202112

42601AWHEEL, DISC (FOR SPARE)

main42611-48751iMXAA54..ADVEN; MXAA54..G201904-201909

main42611-48752iMXAA54..ADVEN; MXAA54..G201909-202007

main4261B-42010iAXAH5#,MXAA5#..G,HBDG,HBDX,X; MXAA54..ADVEN201904-202007

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iAXAH5#,MXAA5#201904-202007

main90942-01115×20supersedes 90942-01033iAXAH54,MXAA54..ADVEN202210-202310

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAXAH52,MXAA52202310-202410

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXAH5#,MXAA5#..G,HBDG,HBDX,X; MXAA54..ADVEN; MXAA54..G201904-202007

5 parts on this diagram · 4 diagrams in section
