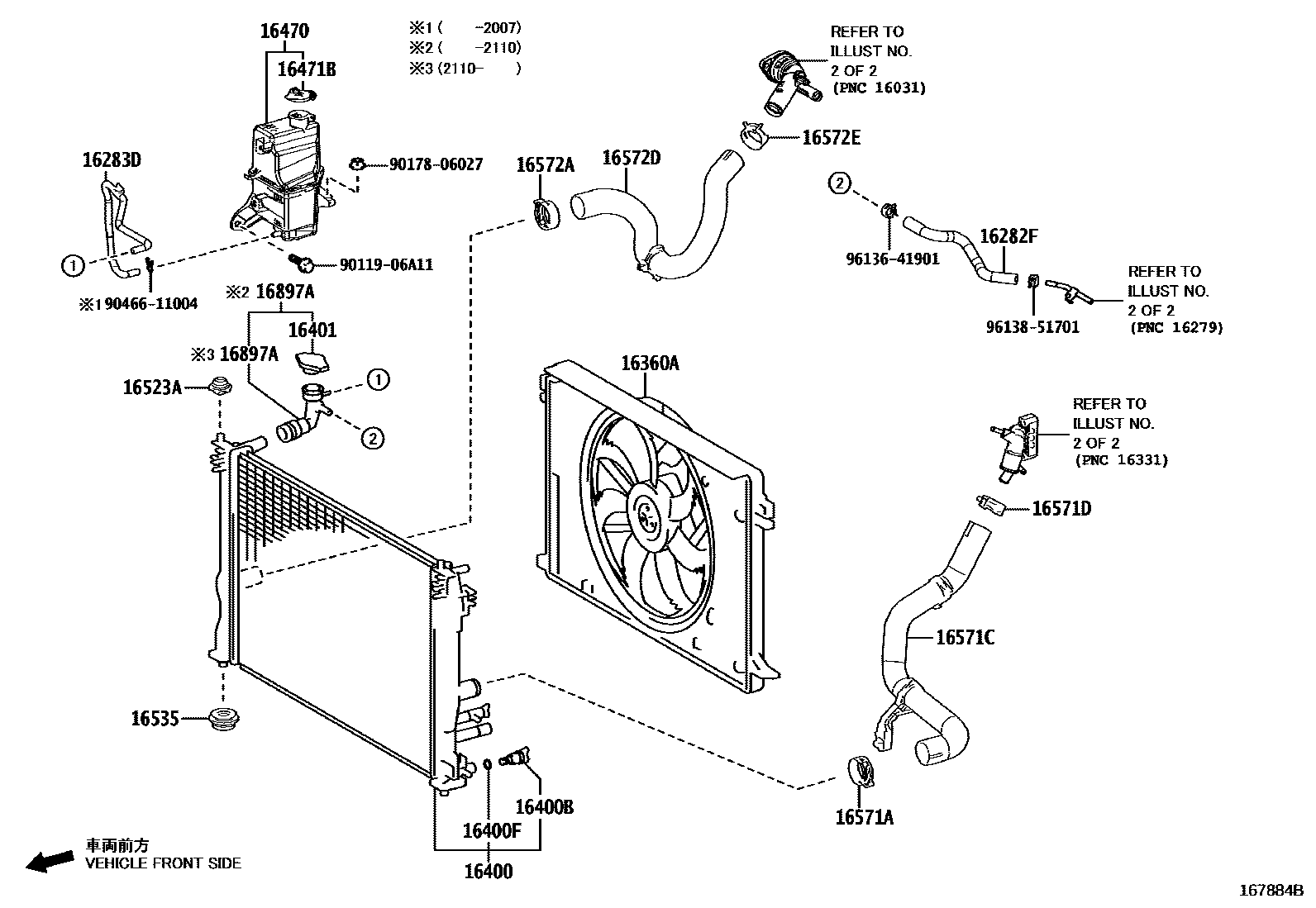

RADIATOR & WATER OUTLET

0001 1��������� 0002 1��������� 0003 1�������� 0004 1�������� 0005 1��������� 0006 1��������

16282HOSE, WATER BY-PASS, NO.5

main16282-24020iM20AFKS..MXAA5#202008-202210

main16282-25040iA25AFXS..AXAH54202310

16282FHOSE, WATER BY-PASS, NO.5

main16282-24010iM20AFKS..MXAA5#202008-202210

main16282-25080iA25AFXS..AXAH52202310-202410

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20AFKS..MXAA5#201904-202007

main16283-25020iA25AFXS..AXAH5#202210-202310

16283DHOSE, WATER BY-PASS, NO.6

main16283-25050iA25AFXS..AXAH52; M20AFKS..MXAA52202310-202410

16360AFAN ASSY, W/MOTOR

main16360-25010iM20AFKS..MXAA52202008-202210

main16360-25020iA25AFXS..AXAH5#202210-202310

main16360-31500iM20AFKS..MXAA54202310

16400RADIATOR ASSY

main16400-25130iM20AFKS..MXAA5#201904-202007

main16400-25141iA25AFXS..AXAH54202310

main16400-25190iA25AFXS..AXAH5#201906-202004

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iA25AFXS..AXAH52; M20AFKS..MXAA52202310-202410

16471BCAP, RESERVE TANK

main16471-23010iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

16523ACUSHION, RADIATOR SUPPORT

main16523-25010×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#202008-202210

main16523-38010×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202001

16535SUPPORT, RADIATOR, LOWER

main16535-28030×2iA25AFXS..AXAH5#202008-202210

main16535-28060×2iM20AFKS..MXAA54202310

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25AFXS..AXAH5#202008-202210

16571CHOSE, RADIATOR, NO.1

main16571-24040iM20AFKS..MXAA5#201904-202007

main16571-25080iA25AFXS..AXAH5#202008-202112

main16571-25210iA25AFXS..AXAH5#202210-202310

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2iM20AFKS..MXAA52202310-202410

main90466-43002iA25AFXS..AXAH5#201904-202007

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25AFXS..AXAH5#202210-202310

16572DHOSE, RADIATOR, NO.2

main16572-24040iM20AFKS..MXAA54202310

main16572-25060iA25AFXS..AXAH5#202008-202112

main16572-25100iA25AFXS..AXAH5#202210-202310

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

16897ANECK, FILLER

main16897-25020iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

main16897-25021iA25AFXS..AXAH5#; M20AFKS..MXAA5#202110-202210

9011906A11

main90119-06A11

9017806027

main90178-06027

9046611004

main90466-11004

9613641901

main96136-41901

9613851701

main96138-51701

25 parts on this diagram · 6 diagrams in section
