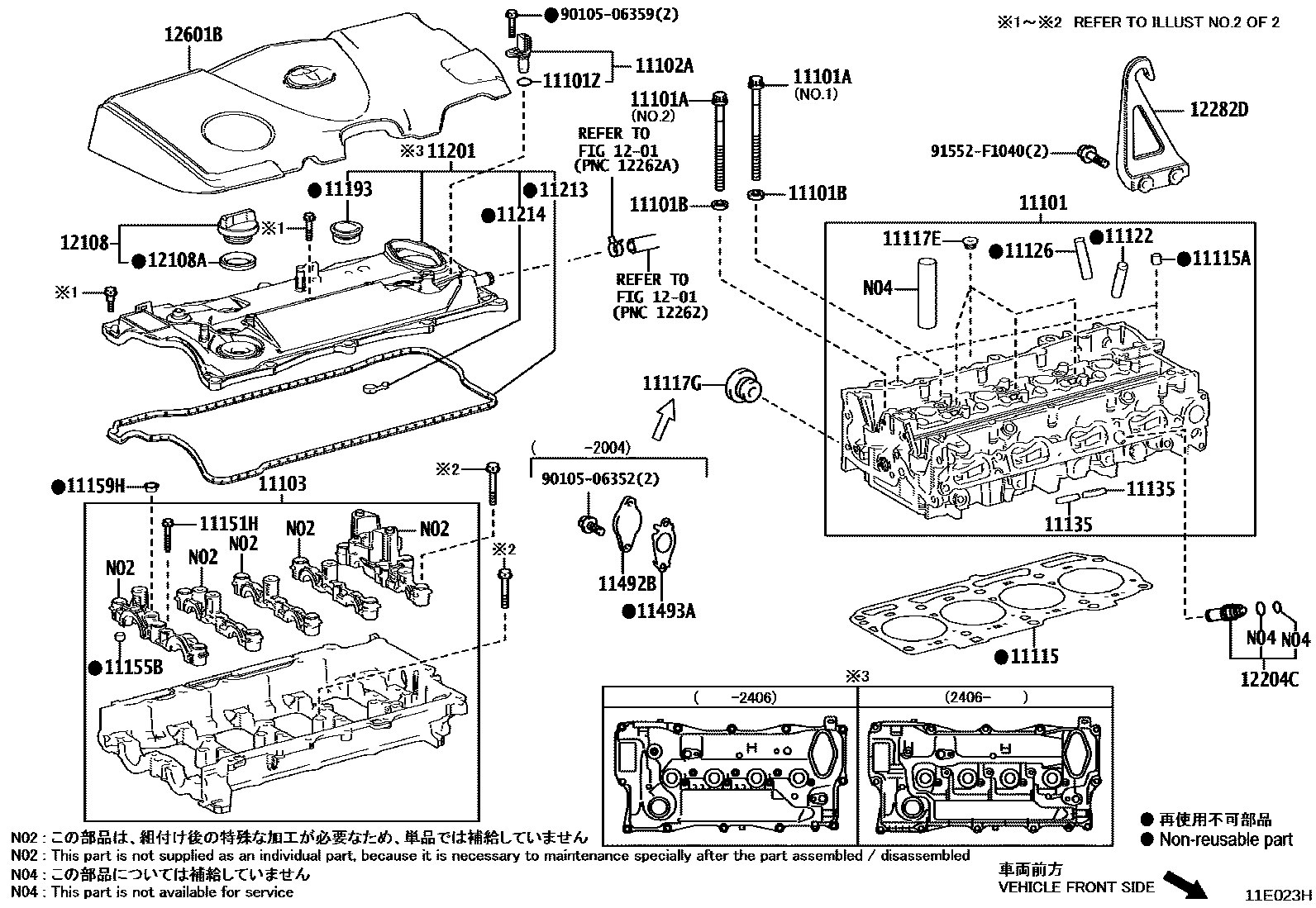

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-29625iA25AFXS..AXAH5#201904-202004

main11101-29626iA25AFXS..AXAH5#202004-202007

main11101-29627iA25AFXS..AXAH52202405-202410

main11101-29635iM20AFKS..MXAA5#202210-202211

main11101-29636iM20AFKS..MXAA5#202212-202310

main11101-29637iM20AFKS..MXAA54202410

main11101-F9130iA25AFXS..AXAH54202405

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02201×6iA25AFXS..AXAH5#202008-202210

main90910-02202×6iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

main90910-02205×4iM20AFKS..MXAA5#201904-202007

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-12079×6iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11101ZO RING, CAM POSITION SENSOR

main90301-11038×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11102ASENSOR, CAMSHAFT POSITION

main90919-05096×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-24011iM20AFKS..MXAA52202310-202410

main11103-25021iA25AFXS..AXAH5#201904-202007

main11103-25090iA25AFXS..AXAH54202310

11115GASKET, CYLINDER HEAD

main11115-24040iM20AFKS..MXAA52202310-202410

main11115-25050iA25AFXS..AXAH5#202210-202310

11115APIN, RING

main90253-12002×2iA25AFXS..AXAH5#; M20AFKS..MXAA5#202008-202210

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015×4iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

main90341-C0012×4iA25AFXS..AXAH52202405-202410

11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3

main90341-20012iM20AFKS..MXAA5#202301-202310

main90341-24006iA25AFXS..AXAH5#202004-202007

11122BUSH, INTAKE VALVE GUIDE

main11122-31070×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-201907

main11122-31090×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#202008-202210

main11123-31070×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-201907

main11123-31090×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

main11123-31041×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

main11123-47010×8iA25AFXS..AXAH52; M20AFKS..MXAA52202401-202410

11135SEAT, EXHAUST VALVE

main11135-24020×8iM20AFKS..MXAA5#202008-202209

main11135-25020×8iA25AFXS..AXAH52202310-202410

main11136-25020×8iA25AFXS..AXAH5#202008-202210

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009×8iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11155BPIN, RING

main90253-13005×10iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11193GASKET, SPARK PLUG TUBE

main11193-37030×4iA25AFXS..AXAH5#; M20AFKS..MXAA5#202210-202310

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-24031iM20AFKS..MXAA5#201904-202007

main11201-24032iM20AFKS..MXAA5#202210-202310

main11201-25032iA25AFXS..AXAH5#201904-202005

main11201-25033iA25AFXS..AXAH5#202210-202310

main11201-25090iA25AFXS..AXAH52202406-202410

11213GASKET, CYLINDER HEAD COVER

main11213-24020iM20AFKS..MXAA5#202210-202310

main11213-25020iA25AFXS..AXAH5#201904-202007

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080×6iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

11492BPLATE, WATER SEAL

main11492-24010iM20AFKS..MXAA5#201904-202007

main11492-25010iA25AFXS..AXAH5#201904-202004

11493AGASKET, WATER SEAL PLATE

main16258-24010iM20AFKS..MXAA5#202008-202209

main16258-25010iA25AFXS..AXAH5#201904-202004

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-38010iA25AFXS..AXAH5#201904-202007

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

12282DHANGER, ENGINE, NO.2

main12282-25010iA25AFXS..AXAH5#; M20AFKS..MXAA5#201904-202007

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-24011iM20AFKS..MXAA5#202008-202210

main12601-25100iA25AFXS..AXAH5#202008-202210

9010506352

main90105-06352

9010506359

main90105-06359

91552F1040

main91552-F1040

31 parts on this diagram · 4 diagrams in section
