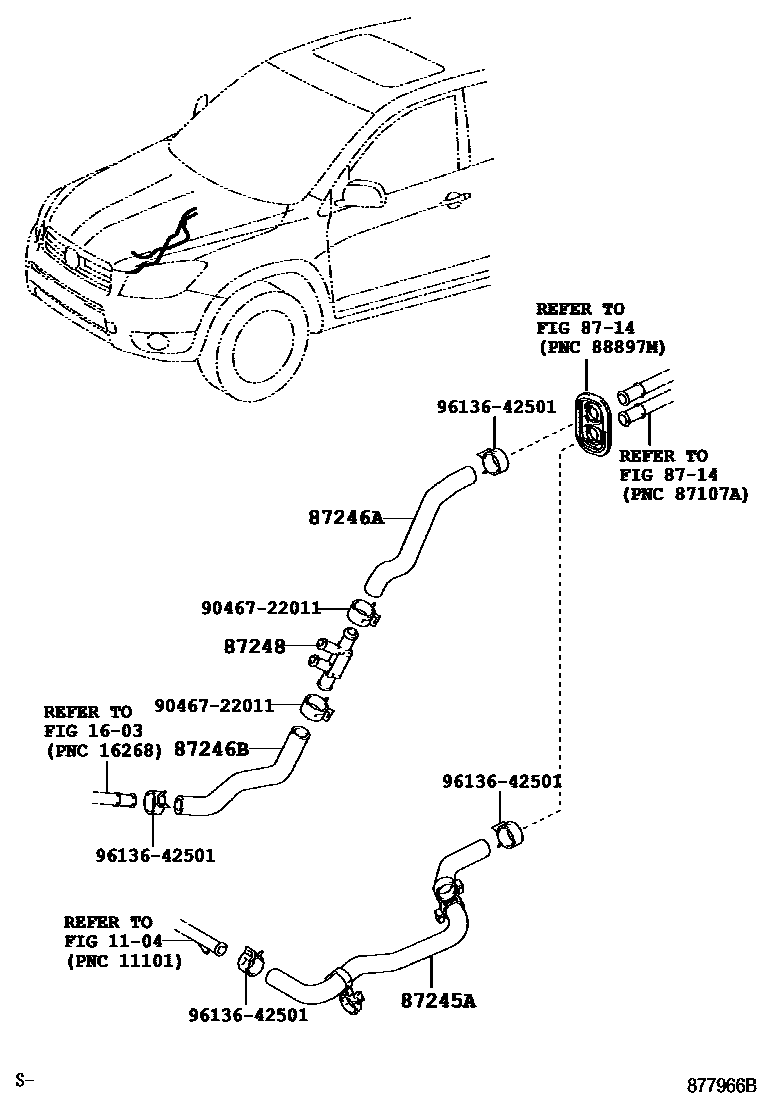

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-42060iACA31,36200808-201606

main87245-42380iGSA33200708-201002

87246AHOSE, HEATER WATER, OUTLET A

main87209-42070iGSA33201002-201212

main87245-42360iACA33,38201002-201311

87246BHOSE, HEATER WATER, OUTLET B

main87245-42370iACA33,38200511-201002

87248PIPE SUB-ASSY, WATER

main87248-42010iACA31,36200808-201207

main87248-42040iACA31,36; ACA33,38201208-201307

main87248-42041iACA33,38201308-201311

9046722011

main90467-22011

9613642501

main96136-42501

9 parts on this diagram · 2 diagrams in section
