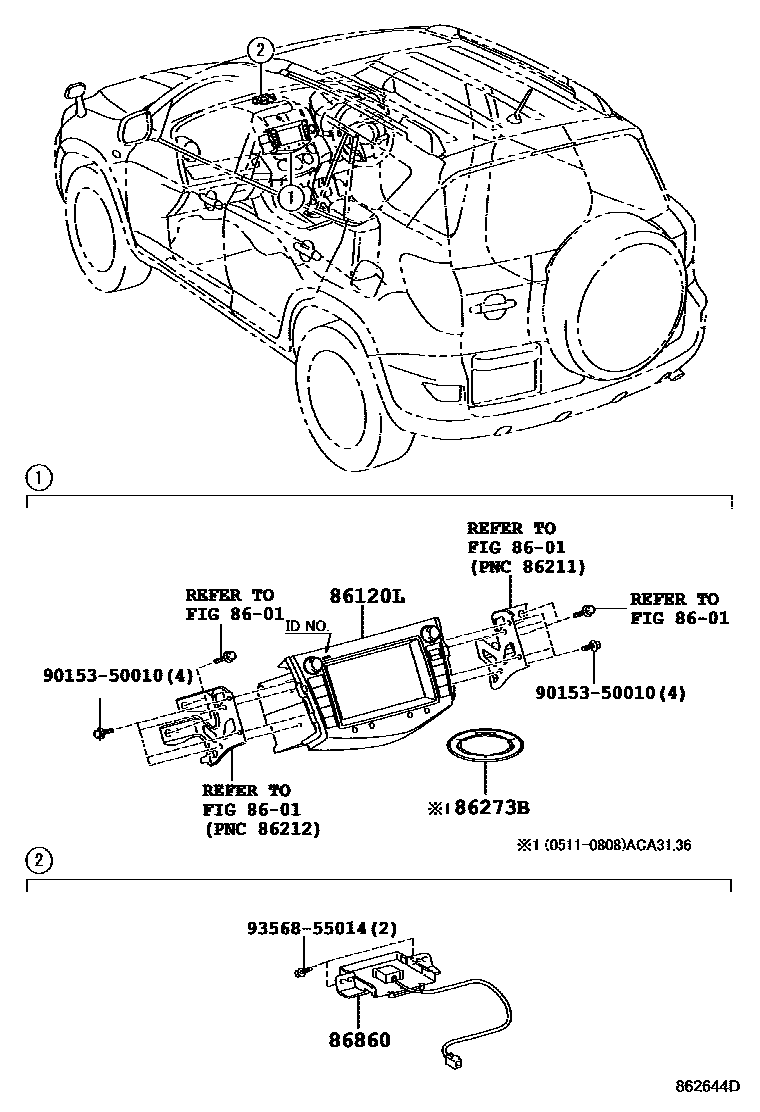

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-42030iACA3#..G,S200511-200603

main86100-42031iACA3#..G,S200604-200608

main86100-42032iACA3#..G,S200609-200703

main86100-42033iACA3#..G,S200704-200708

main86100-42034iACA31,36..G,S200709-200803

main86100-42035iACA31,36..G,S200804-200808

main86100-42040iACA33,GSA33200708-200803

main86100-42041iACA38200804-200809

main86100-42042iACA33,38,GSA33200809-200903

main86100-42043iACA33,38,GSA33200904-200908

main86100-42044iACA33,38,GSA33200909-201002

main86100-42050iACA33,GSA33200708-200803

main86100-42051iACA31,36..G; ACA31..S200808-200809

main86100-42052iACA31,36..G; ACA31..S; ACA33,38,GSA33200809-200903

main86100-42053iACA31,36..G; ACA31..S; ACA33,38,GSA33200904-200908

main86100-42054iACA31,36..G; ACA31..S200909-201003

main86100-42055iACA31,36..G; ACA31..S201004-201007

main86100-42080iACA31,36..G200808-200809

main86100-42081iACA31,36..G200809-200903

main86100-42082iACA31,36..G200904-200908

main86100-42083iACA31,36..G200909-201003

main86100-42084iACA31,36..G201004-201008

main86100-42120iACA33,38,GSA33201002-201003

main86100-42121iACA33,38,GSA33201004-201008

main86100-42122iACA33,38,GSA33201009-201103

main86100-42123iACA33,38,GSA33201104-201108

main86100-42124iACA33,38,GSA33201109-201205

main86100-42125iACA33,38,GSA33201206-201209

main86100-42126iACA33,38,GSA33201209-201212

main86100-42130iACA33,38,GSA33201002-201003

main86100-42131iACA31,36..G; ACA31..S201008-201009

main86100-42132iACA31,36..G; ACA31..S; ACA33,38,GSA33201009-201103

main86100-42133iACA31,36..G; ACA31..S; ACA33,38,GSA33201104-201108

main86100-42134iACA31,36..G; ACA31..S; ACA33,38,GSA33201109-201205

main86100-42135iACA31,36..G; ACA31..S201206-201208

main86100-42136iACA31,36..G; ACA31..S; ACA33,38,GSA33201209-201212

main86100-42140iACA31,36..G201008-201009

main86100-42141iACA31,36..G201009-201103

main86100-42142iACA31,36..G201104-201108

main86100-42143iACA31,36..G201109-201205

main86100-42144iACA31,36..G201206-201208

main86100-42145iACA31,36..G201209-201212

86273BADAPTER, DISC PLAYER

main86273-58010iACA31,36..G,S200511-200808

86860ANTENNA ASSY, NAVIGATION

main86860-42030iACA33,38,GSA33200708-201002

main86870-42020iACA33,38,GSA33201002-201212

9015350010

main90153-50010

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
