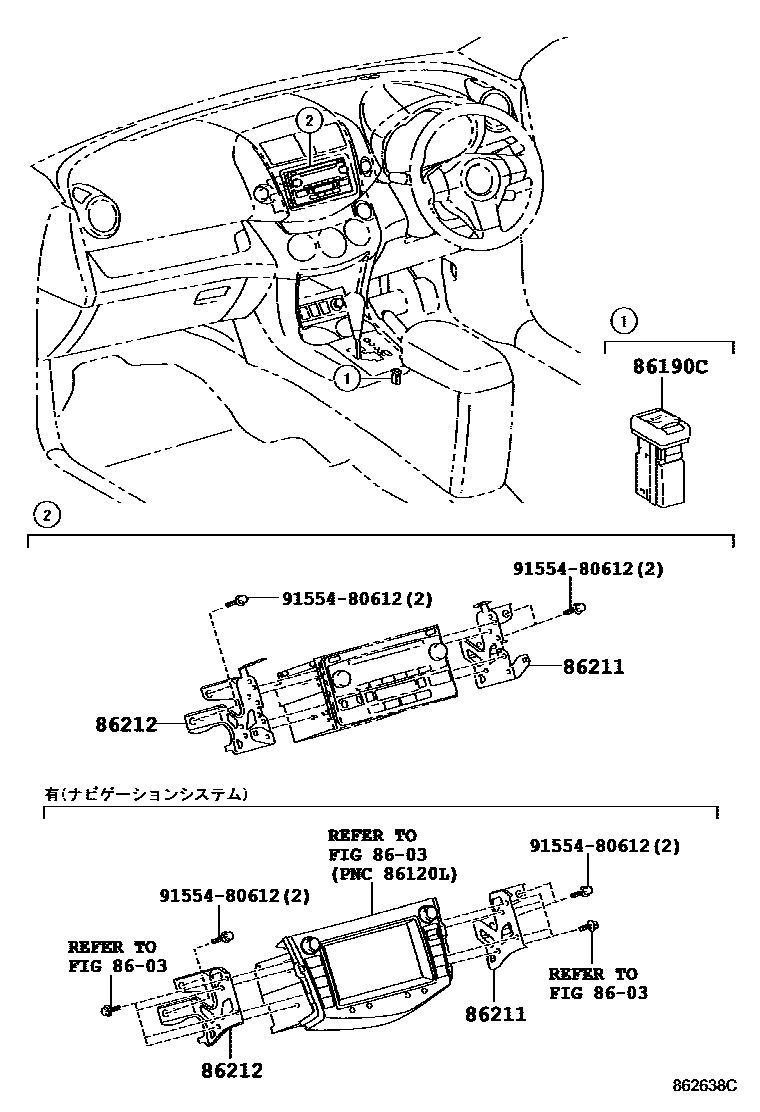

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12020iACA31,36..G,S201008-201212

86211BRACKET, RADIO, NO.1

main86211-42050iACA31,36200808-201112

main86211-42090iACA31,36201112-201606

main86211-42060iACA31,36..G,S200511-200808

86212BRACKET, RADIO, NO.2

main86212-42050iACA31,36200808-201112

main86212-42090iACA31,36201112-201606

main86212-42060iACA33,38,GSA33201002-201212

9155480612

main91554-80612

5 parts on this diagram · 2 diagrams in section
