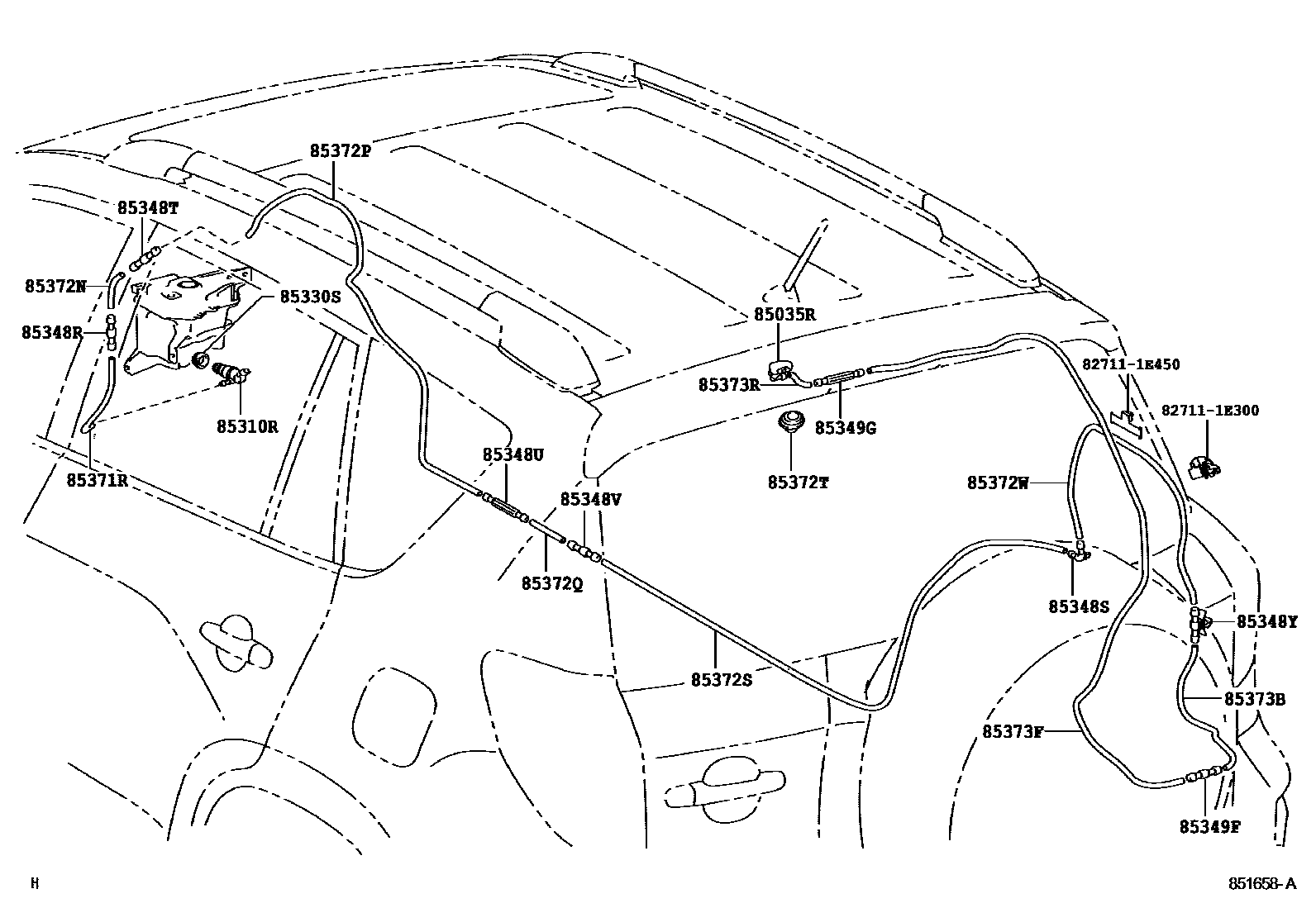

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E450
23 parts on this diagram · 2 diagrams in section
