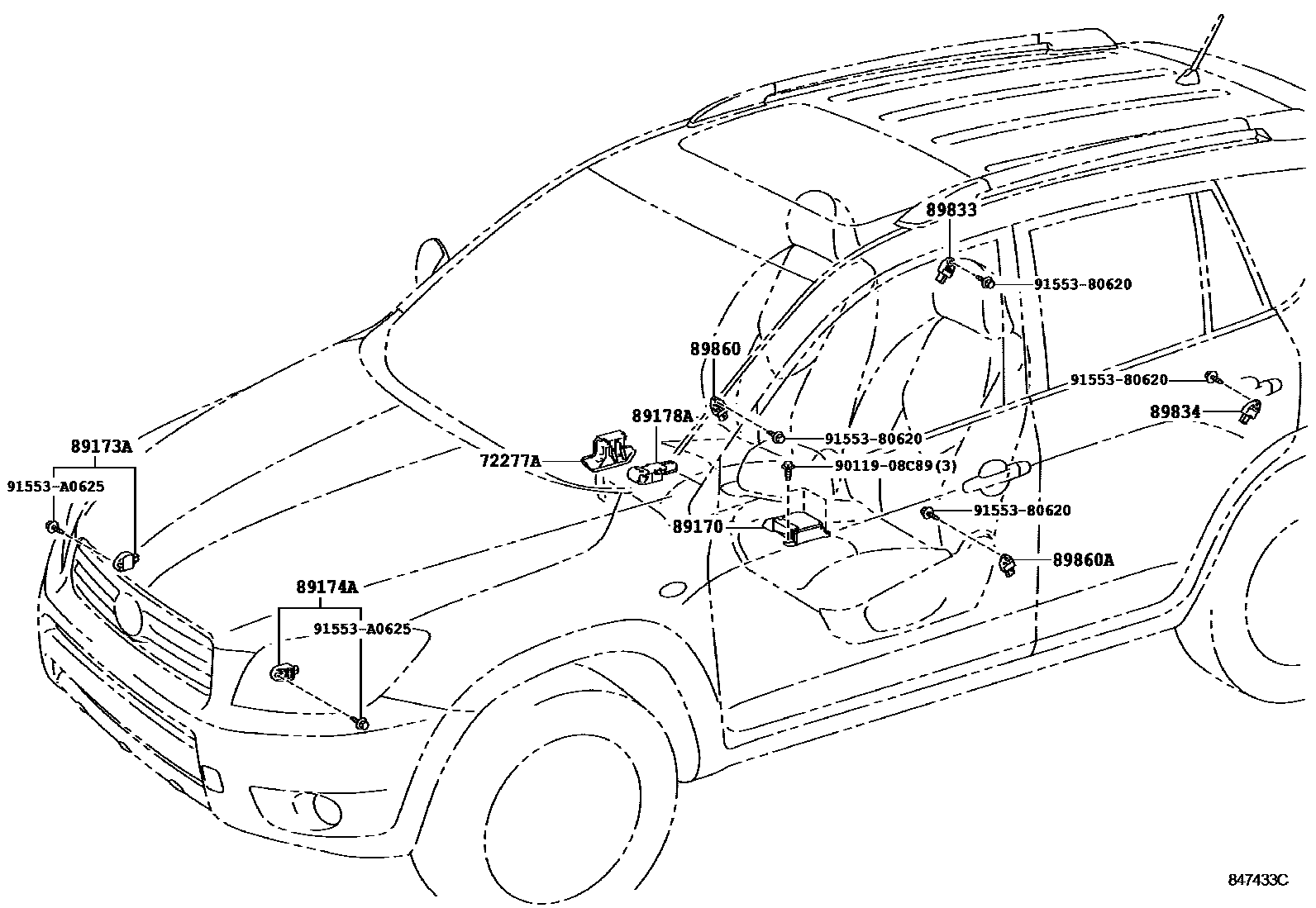

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iACA31,36200511-200808

main72277-33021supersedes 72277-33010iACA33,38,GSA33201002-201311

89170SENSOR ASSY, AIRBAG

main89170-42240supersedes 89170-42530iACA3#200511-200703

main89170-42241supersedes 89170-42220iACA3#,GSA33200704-200808

main89170-42300supersedes 89170-42540iACA33,38,GSA33200808-201002

main89170-42540supersedes 89170-42530iACA31,36; ACA33,38,GSA33201107-201204

89173ASENSOR, AIRBAG, FRONT RH

main89173-49375iACA33,38,GSA33201002

89174ASENSOR, AIRBAG, FRONT LH

main89173-49375iACA31,36200511-200808

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33020iACA33,GSA33200511-200808

main89178-33040iACA31,36200805-200808

main89178-33050supersedes 89178-33040iACA33,38,GSA33201002-201311

89833SENSOR, AIRBAG, REAR RH

main89831-33020iACA3#,GSA33200511-200808

main89831-33030iACA33,38,GSA33200808-201002

89834SENSOR, AIRBAG, REAR LH

main89831-33020iACA3#,GSA33200511-200808

main89831-33030iACA33,38,GSA33200808-201002

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iACA31,36200808

main89831-42010iACA3#,GSA33200511-200808

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iACA33,38,GSA33200808-201002

main89831-42010iACA3#,GSA33200511-200808

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0625

main91553-A0625

12 parts on this diagram · 1 diagram in section
