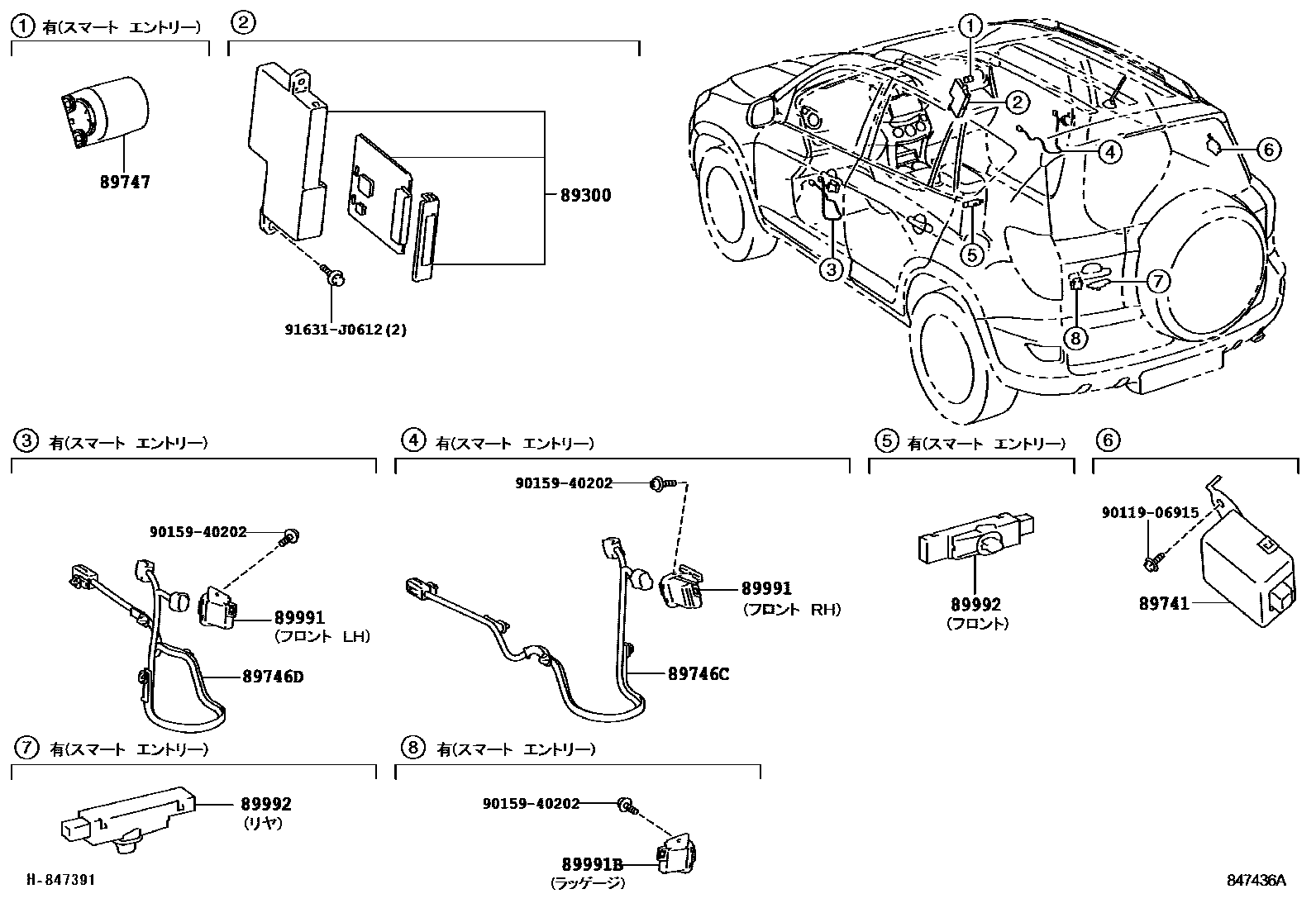

WIRELESS DOOR LOCK

89300BOX ASSY, ECU AGGREGATION

main89300-42030iACA3#..G; ACA31..S200511-200708

main89300-42040iACA31,36..G; ACA31,36..X; ACA31..S; ACA31..X200708-200808

main89300-42091iACA33,38,GSA33201002

89741RECEIVER, DOOR CONTROL

main89740-42010iACA3#..G; ACA3#..X; ACA31..S200511-200602

main89740-42011supersedes 89741-42210iACA31,36..G,S,STYLE200808

main89740-42040iACA33,38,GSA33200708-201002

main89741-42210iACA31,36..S,X200511-200808

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-42010iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-42020iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iACA3#..G; ACA31..S200511-200705

main89747-52010iACA33,38,GSA33200706-201002

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

main89991-30050iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

89991BOSCILLATOR, DOOR ELECTRICAL KEY(FOR LUGGAGE)

main89991-30040iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-42010iACA31,36..G; ACA31,36..X; ACA31..S200511-200808

main89992-42020iACA31,36..G,S,STYLE200808

main89992-52020iACA33,38,GSA33201002

9011906915

main90119-06915

9015940202

main90159-40202

91631J0612

main91631-J0612

11 parts on this diagram · 1 diagram in section
