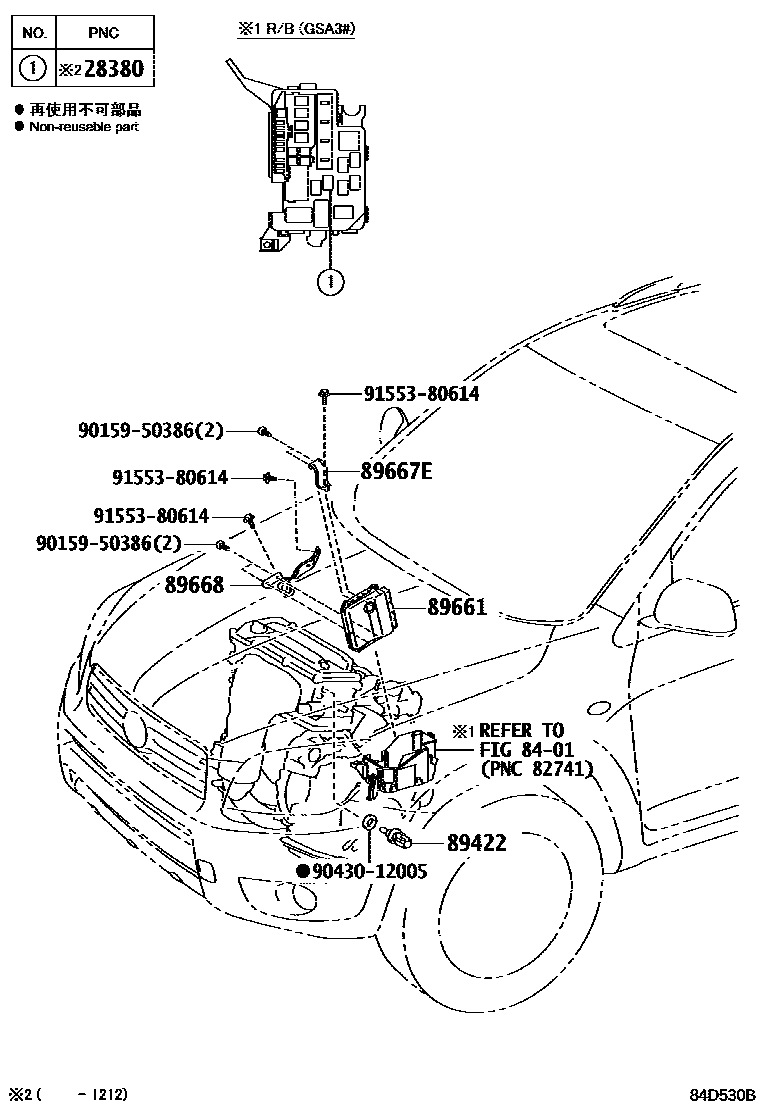

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90987-04004i2GRFE..GSA33200708-201002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iACA33,38200803-201002

main89422-33030iACA31,36200803-200808

89661COMPUTER, ENGINE CONTROL

main89661-42C70iACA36200511-200808

main89661-42C80iACA31200808-201002

main89661-42F10iACA36201002-201008

main89661-42F30iACA33201002-201008

main89661-42F40iGSA33200708-200808

main89661-42L20iGSA33201002-201203

main89661-42L21iGSA33201204-201212

main89661-42L30iACA38200808-201002

main89661-42M20iACA36201302-201406

main89661-42M50iACA31201302-201406

main89661-42N80iACA33201008-201203

main89661-42N81iACA33201204-201301

main89661-42N90iACA38201008-201203

main89661-42N91iACA38201204-201301

main89661-42P00iACA38201002-201008

main89661-42P10iACA31201002-201008

main89661-42P30iACA38201302

main89661-42P40iACA33201302

main89661-42P60iACA36201008-201111

main89661-42P61iACA36201112-201301

main89661-42P70iACA31201008-201111

main89661-42P71iACA31201112-201301

main89661-42U80iACA36201406

main89661-42U90iACA31201406

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42050iACA33,38,GSA33200511-201002

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42050iACA31,36200511-200808

9015950386

main90159-50386

9043012005

main90430-12005

9155380614

main91553-80614

9 parts on this diagram · 1 diagram in section
