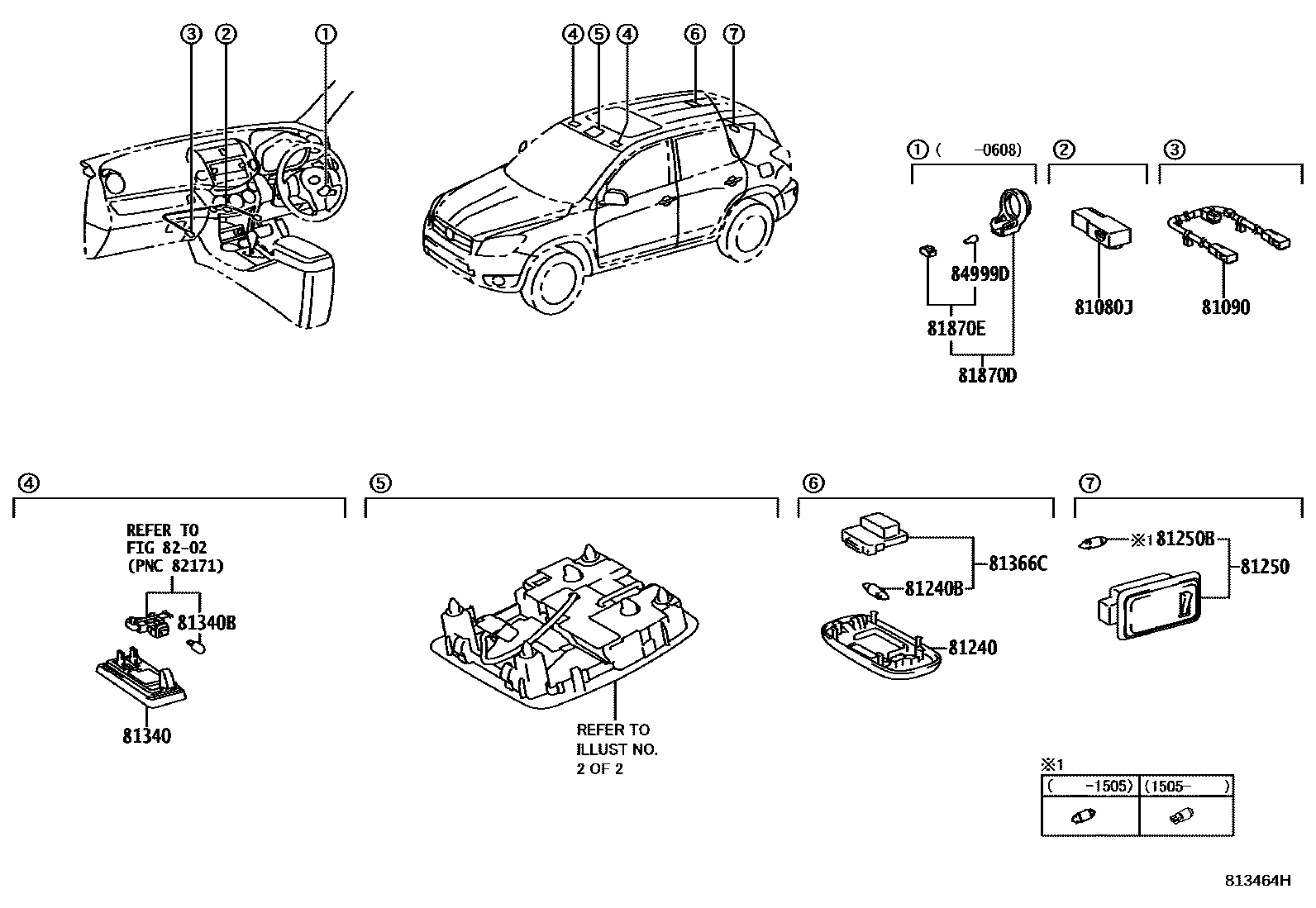

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42010iACA33,38,GSA33201002-201311

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-42010iACA33,38,GSA33201002

81240LAMP ASSY, ROOM, NO.1

main81240-52040-A0iACA33,GSA33200708-200812

IVORY,TRIM40

main81240-52040-B0iACA33,38,GSA33200511-201002

GRAY,TRIM1#

main81240-52040-E2iACA38200808-201002

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iACA31,36200808

81250LAMP ASSY, ROOM, NO.2

main81250-48010iACA31,36200511-200808

main81330-58010iACA3#201505

81250BBULB, ROOM LAMP, NO.2

main99132-12050iACA3#201505

main99132-13050iACA33,38,GSA33201002

81340LAMP ASSY, VANITY

main81340-30100-A1×2iACA33,GSA33200708-200812

IVORY,TRIM40

main81340-30100-B1×2iACA33,38,GSA33200511-201002

GRAY,TRIM1#

main81340-30100-E2×2iACA33,GSA33200708-200812

SAND BEIGE,TRIM41

main81340-30110×2iACA31,36; ACA33,38,GSA33201202

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iACA31,36200511-200808

81366CBASE, ROOM LAMP SWITCH

main81366-68010iACA31,36200511-200808

81870DLAMP ASSY, KEY CYLINDER

main81870-42020iACA3#..S,X200511-200608

81870EBULB, KEY CYLINDER LAMP

main90010-01030iACA3#..S,X200511-200608

8202WIRING & CLAMP

→ Go to FIG 82-02

84999DSOCKET, KEY CYLINDER LAMP

main84999-10250iACA3#..S,X200511-200608

13 parts on this diagram · 2 diagrams in section
