REFLEX REFLECTOR

0001 1 0002 1

8116REAR FOG LAMP

→ Go to FIG 81-16

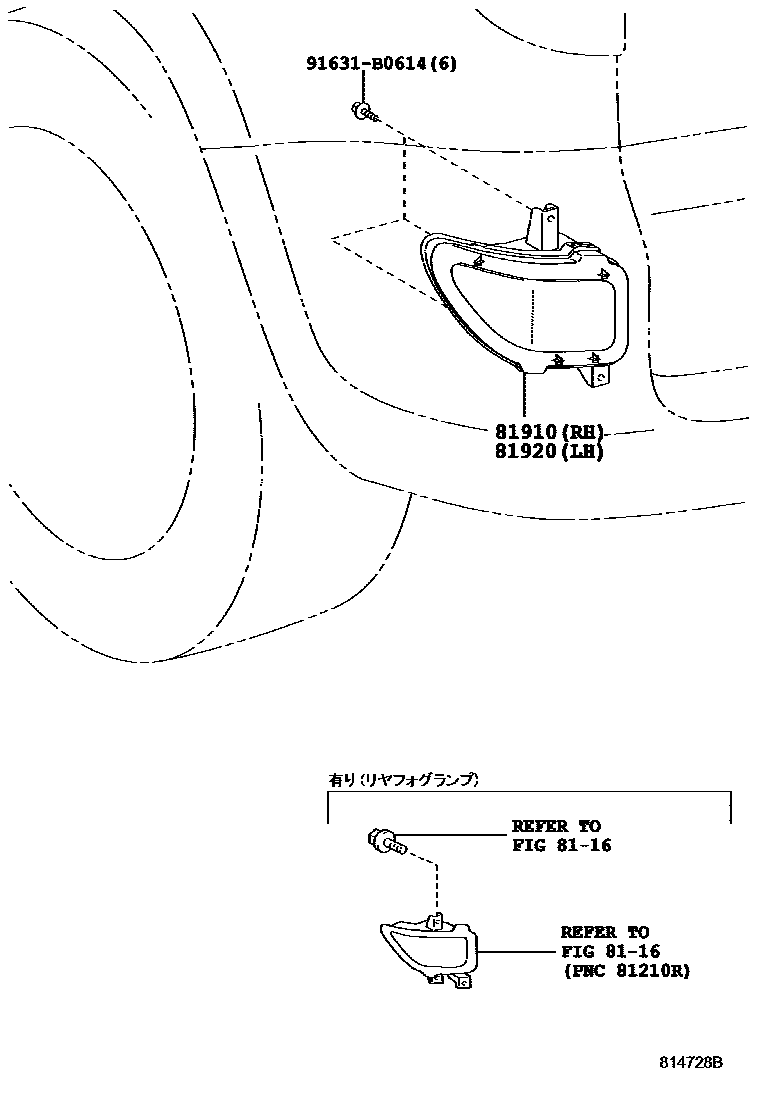

81910REFLECTOR ASSY, REFLEX, RH

main81910-13021iACA33,38,GSA33200708-200911

main81910-13022iACA33,38,GSA33200912-201002

main00000-00000supersedes 81480-42020iACA31,36200511-200808

81920REFLECTOR ASSY, REFLEX, LH

main81920-13021iACA33,38,GSA33200708-200911

main81920-13022iACA33,38,GSA33200912-201002

main00000-00000supersedes 81490-42020iACA31,36200511-200808

91631B0614

main91631-B0614

4 parts on this diagram · 2 diagrams in section
