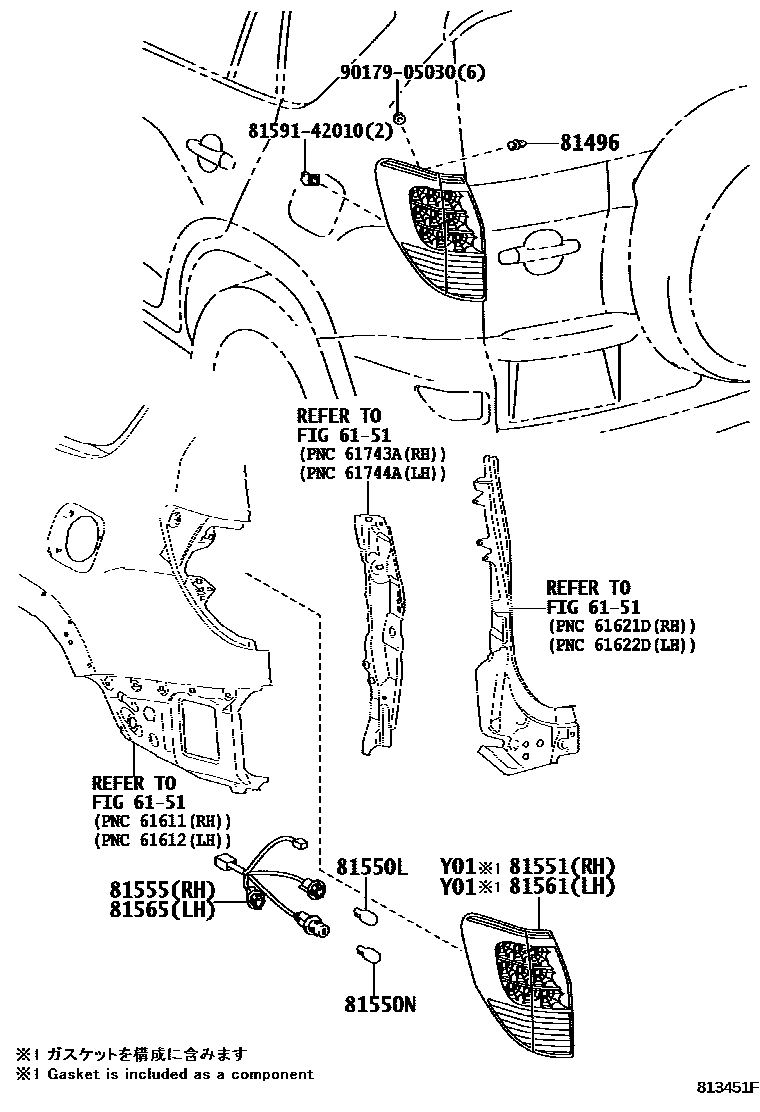

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

main81496-42010×2iACA33,38,GSA33200511-201002

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iACA31,36200511-200808

81550NBULB, BACK UP LAMP

main90981-11059×2iACA31,36200808

81551LENS, REAR COMBINATION LAMP, RH

main81551-42090iACA3#200511-200612

main81551-42091iACA31,36200701-200808

main81551-42110iACA33,38,GSA33200708-200905

main81551-42120iACA31,36200808

main81551-42140iACA33,38,GSA33201002

main81551-42150iACA33,38,GSA33200905-201002

main81551-42180iACA33,38201209

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42090iACA31,36200511-200808

main81555-42110iACA33,38,GSA33200708-200905

main81555-42120iACA31,36200808-200811

main81555-42140iACA33,38,GSA33201002

main81555-42150iACA33,38,GSA33200905-201002

81561LENS, REAR COMBINATION LAMP, LH

main81561-42090iACA3#200511-200612

main81561-42091iACA31,36200701-200808

main81561-42110iACA33,38,GSA33200708-200905

main81561-42120iACA31,36200808

main81561-42140iACA33,38,GSA33201002

main81561-42150iACA33,38,GSA33200905-201002

main81561-42180iACA33,38201209

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42090iACA31,36200511-200808

main81555-42110iACA33,38,GSA33200708-200905

main81555-42120iACA31,36200808-200811

main81555-42140iACA33,38,GSA33201002

main81555-42150iACA33,38,GSA33200905-201002

8159142010LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81591-42010

9017905030

main90179-05030

10 parts on this diagram · 4 diagrams in section
