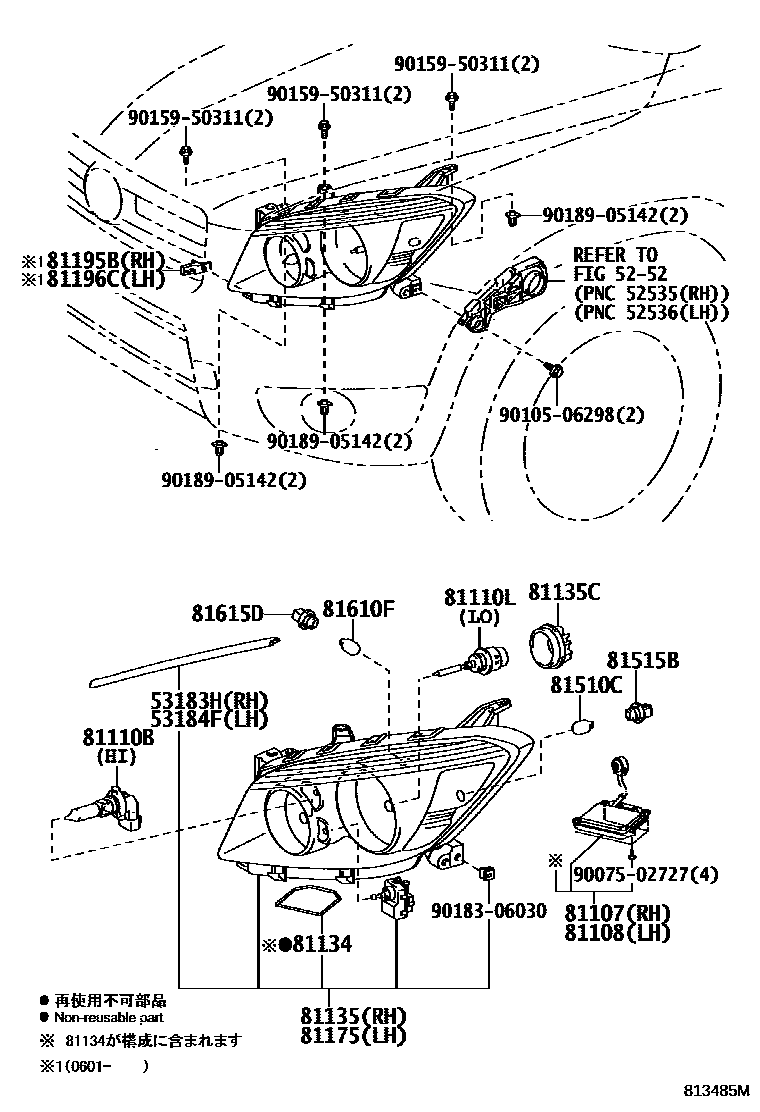

HEADLAMP

0001 1 0002 1 0003 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53183HSEAL, HEADLAMP COVER, RH

main53183-42030iACA31,36200808

main53183-42040iACA33,38,GSA33200708-201002

main53183-42050iACA33,38,GSA33201002

53184FSEAL, HEADLAMP COVER, LH

main53184-42030iACA31,36200808

main53184-42040iACA33,38,GSA33200708-201002

main53184-42050iACA33,38,GSA33201002

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-52680iACA31,36200808-201001

main81107-52681iACA31,36201001

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-52680iACA31,36200511-200808

main81107-52681iACA31,36201001

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iACA31,36200511-200808

main90981-13046×2iACA33,38,GSA33201002

81110LBULB, DISCHARGE HEADLAMP

main90981-20018×2iACA31,36200808-200904

main90981-20028iACA31,36201212

81134GASKET, HEADLAMP

main90075-68007iACA31,36200511-200808

81135UNIT ASSY, HEADLAMP, RH

main81145-42340iACA31,36200511-200808

main81145-42380iACA33,38,GSA33201002-201104

main81145-42381iACA33,38,GSA33201104

main81145-42390iACA33,38,GSA33200708-201002

main81145-42460iACA31,36200808-201212

main81145-42610iACA31,36201212

81135CCOVER, HEADLAMP BACK, NO.1

main81135-12A40×2iACA33,38,GSA33200708-201002

main81135-52480×2iACA31,36200808

81175UNIT ASSY, HEADLAMP, LH

main81185-42340iACA31,36200511-200808

main81185-42380iACA33,38,GSA33201002-201104

main81185-42381iACA33,38,GSA33201104

main81185-42390iACA33,38,GSA33200708-201002

main81185-42460iACA31,36200808-201212

main81185-42610iACA31,36201212

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-42020iACA31,36200601-200808

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-42020iACA31,36200808

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iACA33,38,GSA33200511-201002

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2iACA31,36200511-200808

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACA33,38,GSA33200511-201002

81615DSOCKET, CLEARANCE LAMP

main81138-1E480×2iACA31,36200905-201606

main81138-52570×2iACA31,36200511-200808

main90075-60046×2iACA33,38,GSA33200708-200912

main90075-60077×2iACA33,38,GSA33200912-201002

9007502727

main90075-02727

9010506298

main90105-06298

9015950311

main90159-50311

9018306030

main90183-06030

9018905142

main90189-05142

22 parts on this diagram · 3 diagrams in section
