MOULDING

53119FPROTECTOR, RADIATOR GRILLE

main53119-33080iACA33,38,GSA33200708-201002

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-42010iACA31,36200511-200808

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-42010iACA33,38,GSA33200511-201002

75543CMOULDING, WINDSHIELD, OUTSIDE NO.2 RH

main75543-42010iACA31,36200511-200808

75544AMOULDING, WINDSHIELD, OUTSIDE NO.2 LH

main75544-42010iACA31,36200511-200808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-42020iACA3#200511-200603

main75548-42021iACA33,38,GSA33201002-201210

main75548-42040iACA31,36; ACA33,38,GSA33201211

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-42020iACA3#200511-200603

main75549-42021iACA31,36200808-201210

main75549-42040iACA31,36; ACA33,38,GSA33201211

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-42020iACA31,36200511-200808

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-42020iACA31,36200511-200808

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-42030iACA33,38,GSA33201002-201207

main75557-42031iACA33,38,GSA33201208

main75557-42040iACA31,36200808-201207

main75557-42041iACA31,36201208

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-42030iACA33,38,GSA33201002-201207

main75557-42031iACA33,38,GSA33201208

main75557-42040iACA31,36200808-201207

main75557-42041iACA31,36201208

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020iACA31,36200511-200808

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020×2iACA31,36200808

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-52020iACA31,36200808

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35030×2iACA31,36; ACA33,38,GSA33201202

main75596-42010×2iACA31,36200511-200808

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35030×2iACA31,36; ACA33,38,GSA33201202

main75596-42010×2iACA31,36200808-201201

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42030iACA31,36200808-201107

main75710-42031iACA31,36; ACA33,38,GSA33201108

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42030iACA31,36200808-201107

main75720-42031iACA31,36; ACA33,38,GSA33201108

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-42020iACA33,38,GSA33200708-201002

main75730-42021iACA33,38,GSA33201108

main75730-42030iACA31,36200511-200808

main75730-42031iACA31,36201108

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-42120iACA33,38,GSA33201002-201311

main75731-42140iACA33,38201209-201311

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-42120iACA33,38,GSA33201002-201311

main75732-42140iACA33,38201209-201311

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-42020iACA33,38,GSA33200708-201002

main75740-42021iACA33,38,GSA33201108

main75740-42030iACA31,36200808-201107

main75740-42031iACA31,36201108

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-42080iACA33,38,GSA33201002-201311

main75741-42100iACA33,38201209-201311

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-42080iACA33,38,GSA33201002-201311

main75742-42100iACA33,38201209-201311

75770MOULDING ASSY, HOOD, FRONT

main75770-42010iACA33,38,GSA33200708-201002

main75770-42020iACA33,38,GSA33201002-201311

main75770-42040iACA33,38201209-201311

75791BCLIP, BELT MOULDING SIDE

main75791-42010×16iACA33,38,GSA33201002

9017605008

main90176-05008

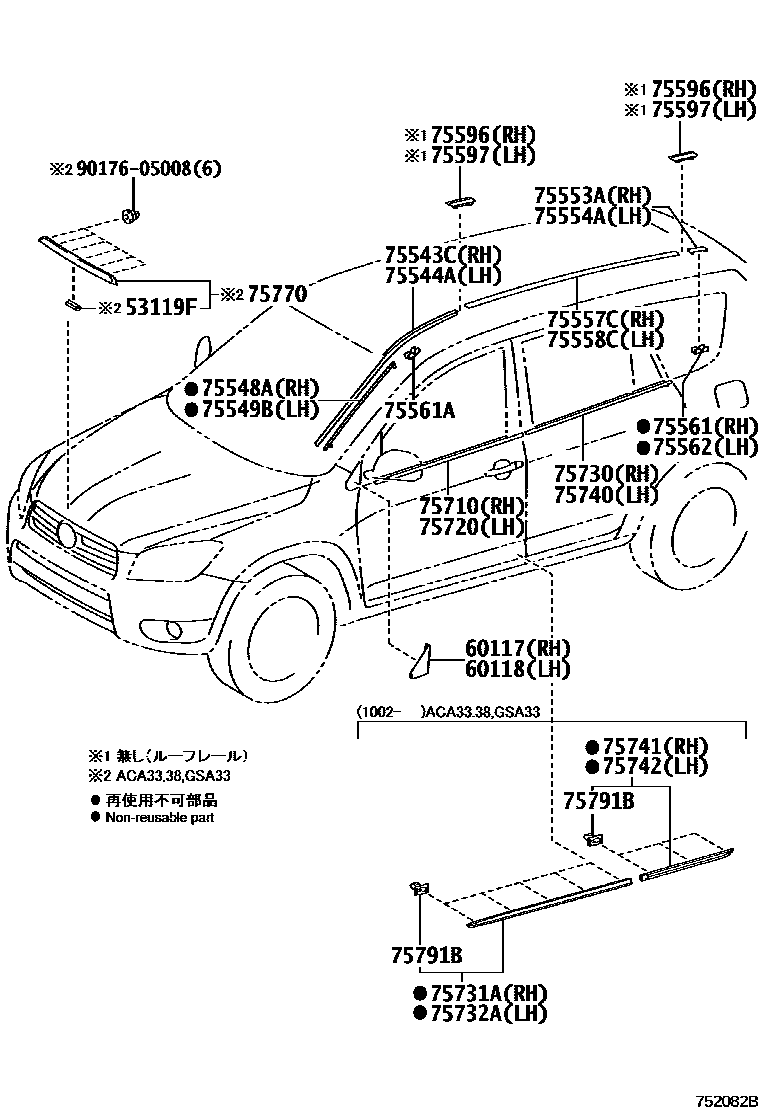

27 parts on this diagram · 1 diagram in section
