SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM40
GRAY,TRIM1#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM41
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM40
GRAY,TRIM1#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM41
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
DK.GRAY,TRIM13
DK.GRAY,TRIM1#
GRAY,TRIM11
FAWN,TRIM40
SAND BEIGE,TRIM41
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
SAND BEIGE/IVORY,TRIM4#
DK.GRAY,TRIM1#
SAND BEIGE/IVORY,TRIM4#
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM13
GRAY,TRIM11
FAWN,TRIM40
SAND BEIGE,TRIM41
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
SAND BEIGE/IVORY,TRIM4#
DK.GRAY,TRIM1#
SAND BEIGE/IVORY,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM13
GRAY,TRIM11
FAWN,TRIM40
SAND BEIGE,TRIM41
SAND BEIGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM13
GRAY,TRIM11
FAWN,TRIM40
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM41
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

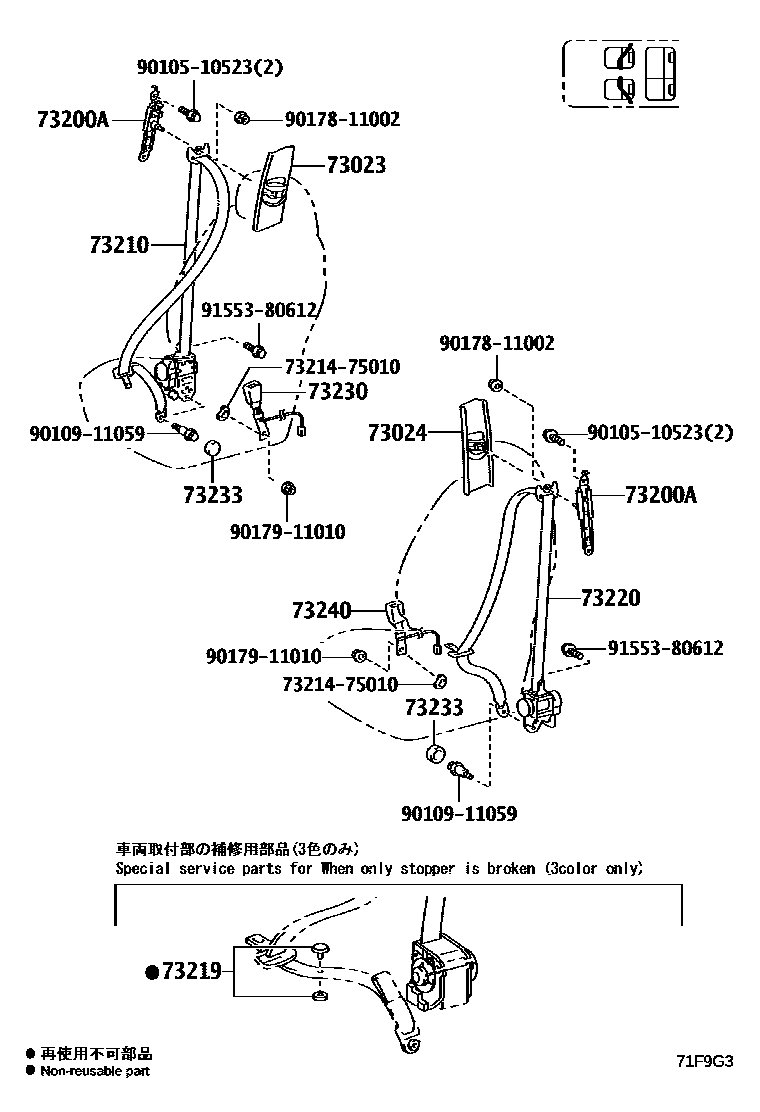

15 parts on this diagram · 4 diagrams in section
