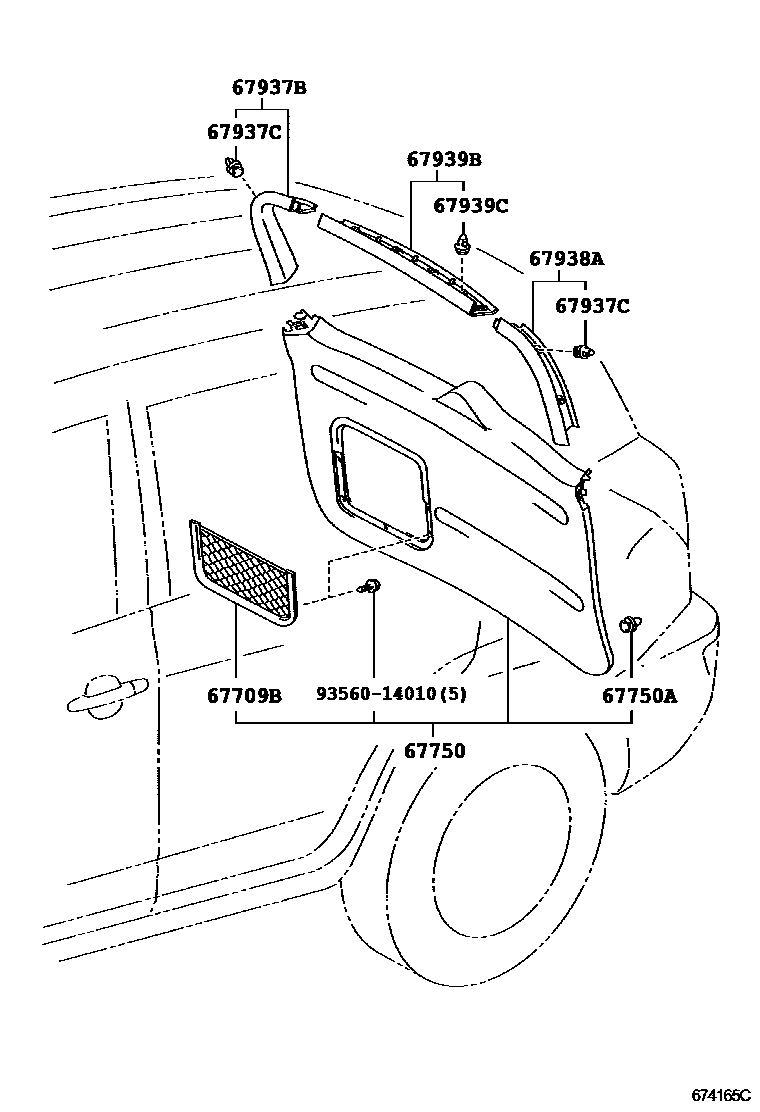

BACK DOOR PANEL & GLASS

0001 1 0002 1��(�����������) 0003 1��(�����������) 0005 1��(�����������) 0006 1��(�����������) 0008 1��(�����������)

67709BPOCKET SUB-ASSY, BACK DOOR TRIM

main67709-42020-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main67709-42020-B1iACA31,36200808-201606

DK.GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-42020-B0iACA33,38,GSA33201002

DK.GRAY,TRIM1#,4#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206×13iACA31,36200511-200808

67937BGARNISH, BACK DOOR SIDE, RH

main67937-42030-A0iACA33,GSA33200708-200808

IVORY,TRIM4#

main67937-42030-B0iACA31,36200808-201606

GRAY,TRIM1#

main67937-42030-E0iACA33,GSA33200812-201002

SAND BEIGE,TRIM4#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10161×4iACA31,36200511-200808

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42030-A0iACA33,GSA33200808-200812

IVORY,TRIM40

main67938-42030-B0iACA33,38,GSA33201002

GRAY,TRIM1#

main67938-42030-E0iACA33,GSA33200812-201002

SAND BEIGE,TRIM4#

67939BGARNISH, BACK DOOR, CENTER

main67939-42020-A0iACA33,GSA33200708-200808

IVORY,TRIM4#

main67939-42020-B0iACA31,36200511-200808

GRAY,TRIM1#

main67939-42020-E0iACA33,GSA33200808-200812

SAND BEIGE,TRIM41

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161×4iACA31,36200511-200808

9356014010

main93560-14010

9 parts on this diagram · 6 diagrams in section
