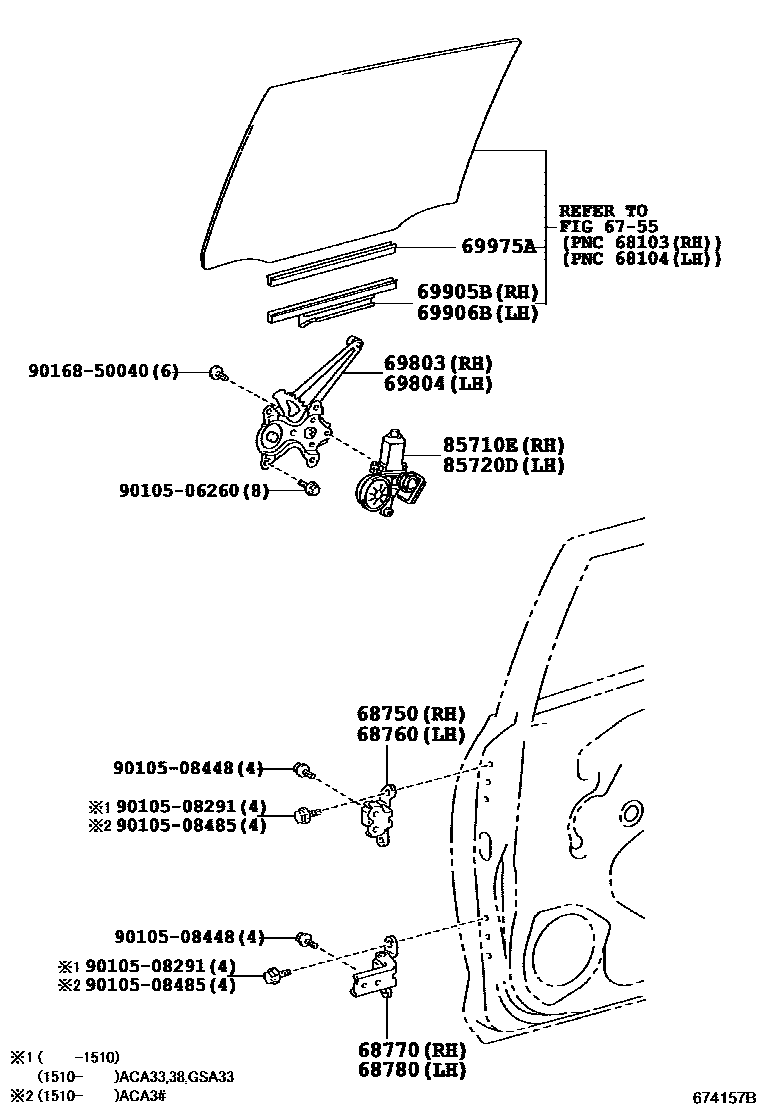

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iACA3#200511-200609

main68750-20121iACA33,38,GSA33201002-201205

main68750-20122iACA31,36201207-201606

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iACA3#200511-200609

main68760-20121iACA33,38,GSA33201002-201205

main68760-20122iACA31,36201207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iACA3#200511-200609

main68770-52031iACA31,36200610-200808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iACA3#200511-200609

main68780-52031iACA31,36200610-200808

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42040iACA33,38,GSA33201002

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42040iACA31,36200511-200808

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53010iACA31,36200511-200808

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53010iACA31,36200511-200808

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iACA31,36200511-200808

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-42100iACA3#200511-200703

main85720-42101iACA31,36200704-200808

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-42110iACA3#200511-200703

main85710-42111iACA31,36200704-200808

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
