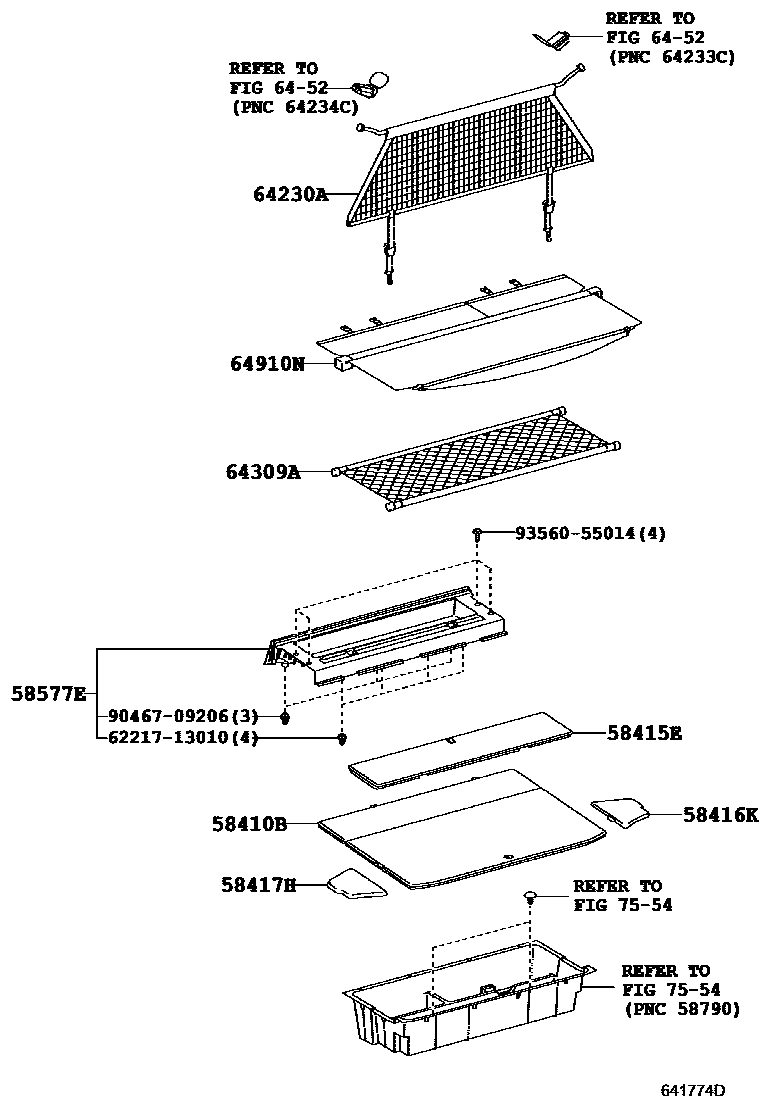

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-42020-B4iACA33,38,GSA33..05S201008

DK.GRAY,TRIM1#

main58410-42020-B6iACA33,38,GSA33..05S201002-201008

DK.GRAY,TRIM1#

main58410-42020-E1iACA33,GSA33..05S200708-200808

FAWN,TRIM4#

main58410-42020-E3iACA33,38,GSA33..05S201002

SAND BEIGE,TRIM4#

main58410-42030-B1iACA3#..X200511-200708

DK.GRAY,TRIM1#

main58410-42030-B2iACA31,36..X200708-200808

GRAY,TRIM11

main58410-42030-B3iACA31,36201008-201606

DK.GRAY,TRIM1#

main58410-42030-B4iACA31,36..G,S; ACA31,36..X200806-200808

DK.GRAY,TRIM1#; DK.GRAY,TRIM13

58415EBOARD, REAR FLOOR, NO.1

main58415-42010-B4iACA33,38,GSA33..05S201008

DK.GRAY,TRIM1#

main58415-42010-B6iACA33,38,GSA33..05S201002-201008

DK.GRAY,TRIM1#

main58415-42010-E1iACA33,GSA33..05S200708-200808

FAWN,TRIM4#

main58415-42010-E3iACA33,38,GSA33..05S201002

SAND BEIGE,TRIM4#

main58415-42020-B1iACA3#..X200511-200708

DK.GRAY,TRIM1#

main58415-42020-B2iACA31,36..X200708-200808

GRAY,TRIM11

main58415-42020-B3iACA31,36201008-201606

DK.GRAY,TRIM1#

main58415-42020-B4iACA31,36..G,S; ACA31,36..X200806-200808

DK.GRAY,TRIM1#; DK.GRAY,TRIM13

58416KBOARD, REAR FLOOR, NO.2

main58416-42020-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main58416-42030-B0iACA31,36..X200708-200808

DK.GRAY,TRIM13

main58416-42030-B1iACA31,36..X200708-200808

GRAY,TRIM11

58417HBOARD, REAR FLOOR, NO.3

main58417-42020-B0iACA33,38,GSA33201002

DK.GRAY,TRIM1#,4#

main58417-42030-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

main58417-42030-B1iACA31,36..X200708-200808

GRAY,TRIM11

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-42010-B0iACA33,38,GSA33..05S201002-201311

DK.GRAY,TRIM1#

main58577-42010-E0iACA33,GSA33..05S200708-200808

FAWN,TRIM4#

main58577-42010-E1iACA33,38,GSA33..05S200808-201002

SAND BEIGE,TRIM4#

main58577-42020-B1iACA33,38,GSA33..07S201002-201311

DK.GRAY,TRIM1#

main58577-42020-E0iACA33,GSA33..07S200708-200808

FAWN,TRIM4#

main58577-42020-E1iACA33,38,GSA33..07S201002-201311

SAND BEIGE,TRIM4#

main58577-42030-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

main58577-42030-B1iACA31,36..X200801-200808

GRAY,TRIM11

64230ANET ASSY, ROOM PARTITION

main64230-42020iACA33,38,GSA33200511-201002

64309APOCKET SUB-ASSY, PACKAGE TRAY TRIM

main64309-42010-B0iACA33,38,GSA33..05S200708-201002

DARK GRAY,TRIM1#,4#

main64309-42011-B1iACA33,38..05S201208-201311

DARK GRAY,TRIM1#,4#

main64309-42012-B1iACA3#201410-201509

DARK GRAY,TRIM1#

main64309-42031-B0iACA3#201510-201606

DARK GRAY,TRIM1#

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

64910NCOVER ASSY, TONNEAU

main64910-42020-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main64910-42030-B0iACA33,38,GSA33..05S201002

DK.GRAY,TRIM1#,4#

main64950-42010-B0iACA33,38,GSA33..07S201002

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9046709206

main90467-09206

9356055014

main93560-55014

13 parts on this diagram · 2 diagrams in section
