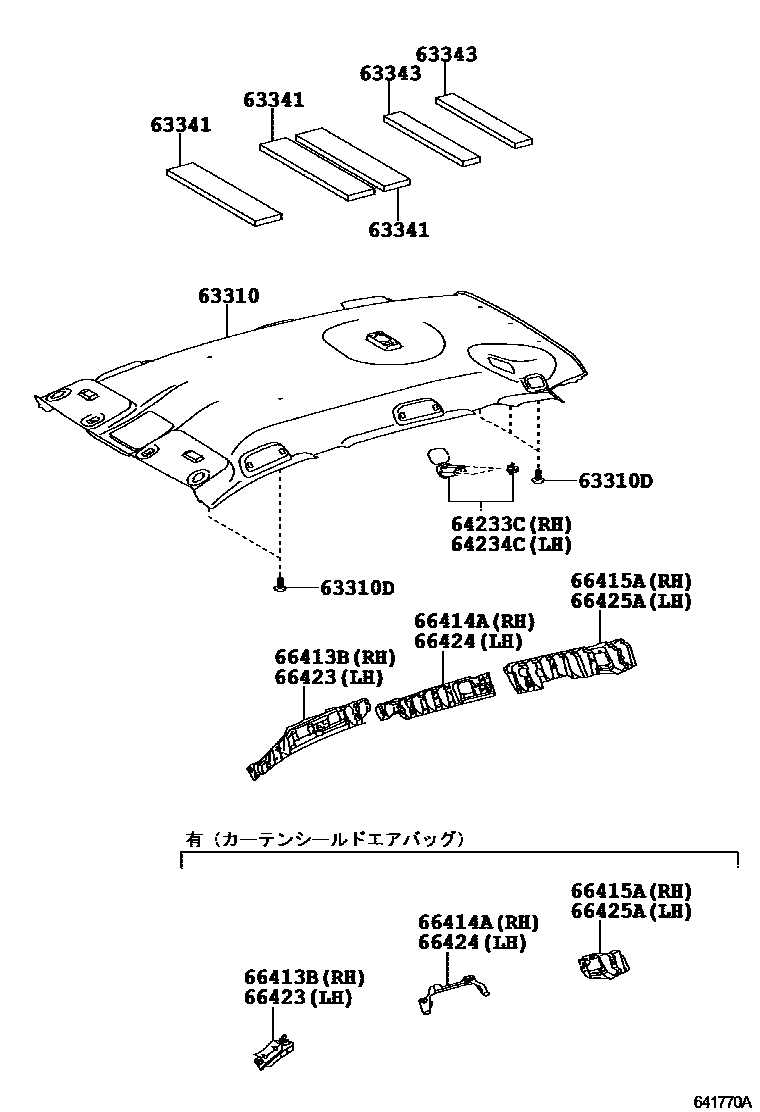

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(��� ���) 0003 1 0004 1��(��� ���)

63310HEADLINING ASSY, ROOF

main63310-42280-B0iACA3#200511-200603

GRAY,TRIM1#

main63310-42281-B0iACA31,36200604-200808

GRAY,TRIM1#

main63310-42290-B0iACA31,36..G,S200511-200808

main63310-42291-B0supersedes 63310-42282-B0iACA31,36201212-201505

main63310-42370-A0supersedes 63310-42360-A0iACA33,GSA33200708-200808

main63310-42370-B0supersedes 63310-42360-B0iACA33,38,GSA33200808-201002

main63310-42370-E0supersedes 63310-42360-E0iACA33,38,GSA33200808-201002

main63310-42371-B0supersedes 63310-42361-B0iACA33,38201212

main63310-42371-E0supersedes 63310-42361-E0iACA33,38201212

63310DCLIP, ROOF HEADLINING

main90467-05164-B6×5iACA31,36; ACA31,36..G,S200808-201212

main90467-05164-A0×2iACA33,GSA33200708-200808

main90467-05164-B0×2iACA33,38201212

main90467-05164-E4×2iACA33,38,GSA33200808-201002

63341PAD, ROOF SILENCER, NO.1

main63341-42020×3supersedes 63341-68030iACA31,36200511-200808

main63341-68030×3iACA31,36200810

63343PAD, ROOF SILENCER, NO.3

main63343-42010iACA33,38,GSA33200708-201002

64233CHOOK, ROOM PARTITION NET, REAR RH

main64233-42030-A0iACA33,GSA33200708-200808

IVORY,TRIM4#

main64233-42030-B0iACA31,36200511-200808

GRAY,TRIM1#

main64233-42030-E0iACA33,GSA33200812-201002

SAND BEIGE,TRIM4#

64234CHOOK, ROOM PARTITION NET, REAR LH

main64234-42030-A0iACA33,GSA33200708-200808

IVORY,TRIM4#

main64234-42030-B0iACA31,36200511-200808

GRAY,TRIM1#

main64234-42030-E0iACA33,GSA33200812-201002

SAND BEIGE,TRIM4#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-42130supersedes 66413-42120iACA31,36200808

66414ASPACER, SIDE RAIL, REAR RH

main66414-42130supersedes 66414-42110iACA31,36200808

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-42060supersedes 66415-42050iACA31,36200511-200808

main66415-42100iACA33,38,GSA33200708-201002

66423SPACER, SIDE RAIL, FRONT LH

main66423-42130iACA33,38,GSA33200511-201002

66424SPACER, SIDE RAIL, REAR LH

main66424-42110iACA33,38,GSA33200511-201002

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-42040supersedes 66425-42030iACA31,36200808

main66425-42080iACA33,38,GSA33200708-201002

12 parts on this diagram · 4 diagrams in section
