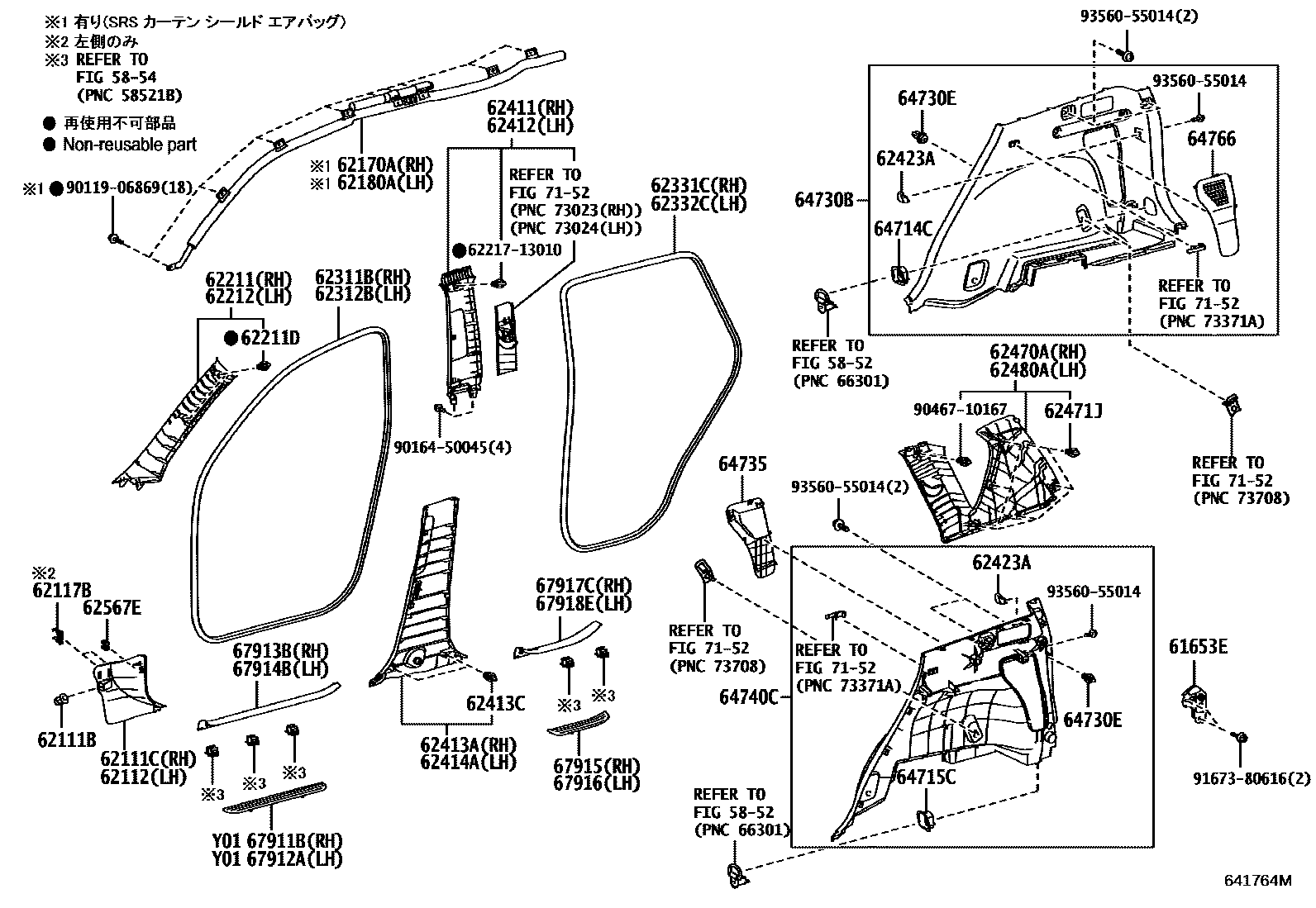

INSIDE TRIM BOARD

0001 1 0002 1

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

61653EBRACKET, DECK SIDE TRIM

main61653-42040iACA31,36200808

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06155×2iACA33,38,GSA33200511-201002

62111CBOARD, COWL SIDE TRIM, RH

main62111-42040-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-42040-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90468-25003×2iACA31,36200511-200808

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-42040iACA31,36200808

main62170-42050iACA33,38,GSA33200708-201002

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-42030iACA31,36200808

main62180-42040iACA33,38,GSA33200708-201002

62211GARNISH, FRONT PILLAR, RH

main62210-42040-B0supersedes 62210-42030-B0iACA33,38,GSA33201002-201110

GRAY,TRIM1#

main62210-42040-E0supersedes 62210-42030-E0iACA33,38,GSA33201002-201110

SAND BEIGE,TRIM4#

main62210-42041-B0supersedes 62210-42030-B0iACA33,38,GSA33201111

GRAY,TRIM1#

main62210-42041-E0iACA33,38,GSA33201111

SAND BEIGE,TRIM4#

main62210-42040-A0supersedes 62210-42030-A0iACA33,GSA33200808-200812

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main62217-42030×4iACA33,38,GSA33201002

main90467-10161×4iACA31,36200808

main62217-20010×4iACA33,38,GSA33200511-200811

62212GARNISH, FRONT PILLAR, LH

main62220-42040-B0supersedes 62220-42030-B0iACA33,38,GSA33201002-201110

GRAY,TRIM1#

main62220-42040-E0supersedes 62220-42030-E0iACA33,38,GSA33201002-201110

SAND BEIGE,TRIM4#

main62220-42041-B0supersedes 62220-42030-B0iACA33,38,GSA33201111

GRAY,TRIM1#

main62220-42041-E0iACA33,38,GSA33201111

SAND BEIGE,TRIM4#

main62220-42040-A0supersedes 62220-42030-A0iACA33,GSA33200808-200812

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-42070-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main62311-42090-B0iACA33,38201212

DK.GRAY,TRIM1#,4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-42070-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main62312-42090-B0iACA33,38201212

DK.GRAY,TRIM1#,4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-42030-B0iACA33,38,GSA33201002-201211

DK.GRAY,TRIM1#,4#

main62331-42040-B0iACA31,36200808-201211

DK.GRAY,TRIM1#

main62331-42060-B0iACA33,38201212

DK.GRAY,TRIM1#,4#

main62331-42070-B0iACA31,36201212-201606

DK.GRAY,TRIM1#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-42030-B0iACA33,38,GSA33201002-201211

DK.GRAY,TRIM1#,4#

main62332-42040-B0iACA31,36200808-201211

DK.GRAY,TRIM1#

main62332-42060-B0iACA33,38201212

DK.GRAY,TRIM1#,4#

main62332-42070-B0iACA31,36201212-201606

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-42040-A0iACA33,GSA33200808-200812

IVORY,TRIM40

main62410-42040-B0iACA33,38,GSA33201002

GRAY,TRIM1#

main62410-42040-E0iACA33,38,GSA33201002

SAND BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-42040-A0iACA33,GSA33200708-200808

IVORY,TRIM4#

main62420-42040-B0iACA3#,GSA33200511-201002

GRAY,TRIM1#

main62420-42040-E0iACA33,38,GSA33201002

SAND BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-42040-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iACA31,36200511-200808

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-42040-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

62423AHOOK, SIDE WINDOW GARNISH

main62423-42010-B1×2iACA33,38,GSA33201002

DK.GRAY,TRIM1#,4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-42090-A0iACA33,GSA33..05S200708-200808

IVORY,TRIM4#

main62470-42090-B0iACA33,38,GSA33..05S201002

GRAY,TRIM1#

main62470-42090-E0iACA33,38,GSA33..05S201002

SAND BEIGE,TRIM4#

main62470-42100-A0iACA33,GSA33..07S200708-200808

IVORY,TRIM4#

main62470-42100-B0iACA33,38,GSA33..07S201002

GRAY,TRIM1#

main62470-42100-E0iACA33,38,GSA33..07S200808-201002

SAND BEIGE,TRIM4#

main62470-42110-B0iACA31,36200511-200808

GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×12iACA31,36200808

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-42090-A0iACA33,GSA33..05S200708-200808

IVORY,TRIM4#

main62480-42090-B0iACA33,38,GSA33..05S201002

GRAY,TRIM1#

main62480-42090-E0iACA33,38,GSA33..05S201002

SAND BEIGE,TRIM4#

main62480-42100-A0iACA33,GSA33..07S200708-200808

IVORY,TRIM4#

main62480-42100-B0iACA33,38,GSA33..07S200808-201002

GRAY,TRIM1#

main62480-42100-E0iACA33,38,GSA33..07S201002

SAND BEIGE,TRIM4#

main62480-42110-B0iACA31,36200511-200808

GRAY,TRIM1#

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-21010×2iACA31,36200511-200808

64714CCOVER, DECK SIDE TRIM, RH

main64714-42020-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

64715CCOVER, DECK SIDE TRIM, LH

main64715-42010-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-42060-B0iACA33,38,GSA33201002-201110

DK.GRAY,TRIM1#,4#

main64730-42061-B0iACA33,38,GSA33201111

DK.GRAY,TRIM1#,4#

main64730-42070-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161×8iACA33,38,GSA33201002

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-42030-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

main64735-42050-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-42040-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main64740-42041-B0iACA33,38,GSA33201111

DK.GRAY,TRIM1#,4#

main64740-42050-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-42020-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main64766-42040-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-42030-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main67911-42050-B0supersedes 67911-42030-B0iACA33,38; ACA33,38,GSA33201002

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-42030-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

main67911-42050-B0supersedes 67911-42030-B0iACA33,38; ACA33,38,GSA33201002

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-42090-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-42090-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-42030-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main67915-42050-B0iACA33,38; ACA33,38,GSA33201002

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-42030-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main67916-42050-B0supersedes 67916-42020-B0iACA33,38; ACA33,38,GSA33201002

67917CPLATE, REAR DOOR SCUFF, RH

main67917-42040-B0iACA33,38,GSA33200708-201002

DK.GRAY,TRIM1#,4#

main67917-42050-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-42040-B0iACA33,38,GSA33201002

DK.GRAY,TRIM1#,4#

main67918-42050-B0iACA31,36200808-201606

DK.GRAY,TRIM1#

7152SEAT BELT

→ Go to FIG 71-52

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9011906869

main90119-06869

9016450045

main90164-50045

9046710167

main90467-10167

9167380616

main91673-80616

9356055014

main93560-55014

48 parts on this diagram · 2 diagrams in section
