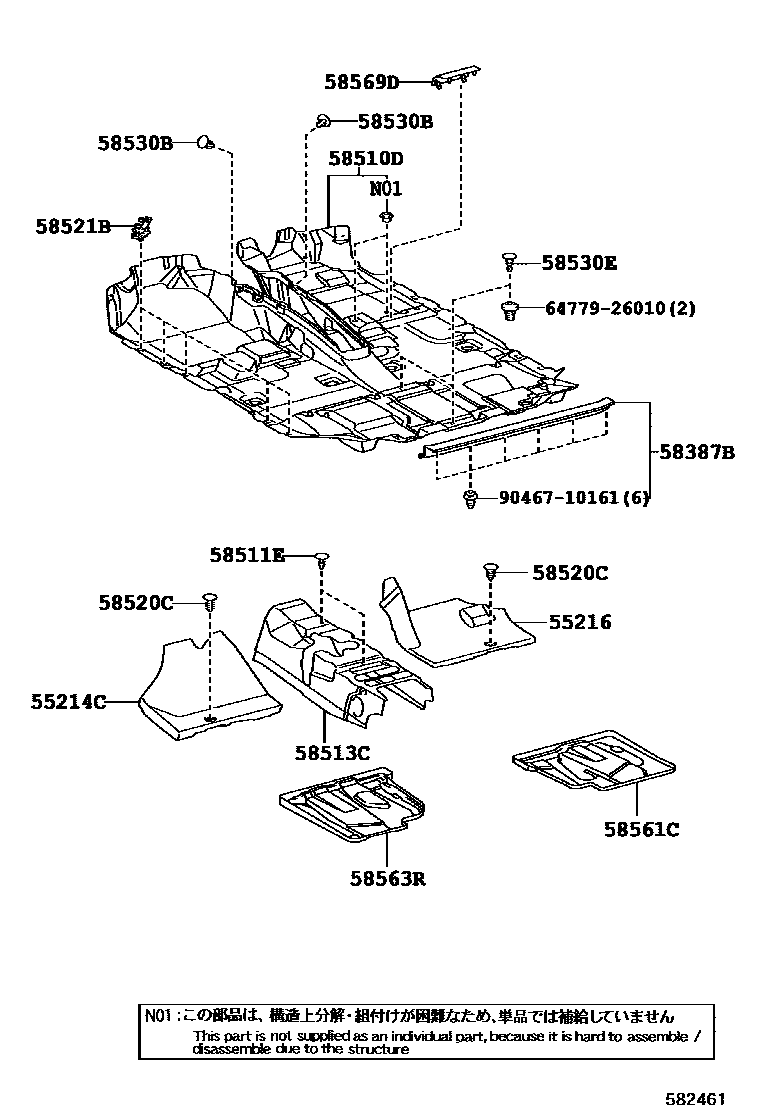

FLOOR MAT & SILENCER PAD

0001 1 0002 1

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-42040iACA33,38,GSA33200511-201002

55216PAD, DASH PANEL INSULATOR, NO.4

main55214-42070iACA3#201406

main55216-42050iACA33,38,GSA33201002

58387BPLATE, REAR FLOOR FINISH

main58387-42030-B0iACA33,38,GSA33..05S200708-201002

DK.GRAY,TRIM1#,4#

main58387-42040-B0iACA33,38,GSA33..07S201002

DK.GRAY,TRIM1#,4#

main58387-42050-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

58510DCARPET ASSY, FLOOR, FRONT

main58510-42590-B0iACA31,36200511-200808

DK.GRAY,TRIM1#

main58510-42590-B1iACA31,36200808-201406

DK.GRAY,TRIM1#

main58510-42591-B1iACA3#201406-201606

DK.GRAY,TRIM1#

main58510-42890-B0iACA33,38,GSA33..05S201002

DK.GRAY,TRIM1#

main58510-42890-E0iACA33,GSA33..05S200708-200808

FAWN,TRIM4#

main58510-42890-E1iACA33,38,GSA33..05S201002

SAND BEIGE,TRIM4#

main58510-42A00-B0iACA33,38,GSA33..07S200808-201002

DK.GRAY,TRIM1#

main58510-42A00-E0iACA33,GSA33..07S200708-200808

FAWN,TRIM4#

main58510-42A00-E1iACA33,38,GSA33..07S201002

SAND BEIGE,TRIM4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0×2iACA31,36200808-201606

BLACK

58513CMAT, FLOOR, FRONT CENTER

main58513-42010iACA31,36200808-201211

main58513-42011iACA31,36; ACA33,38201212

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B2×2iACA31,36200511-200808

GRAY

58521BHOOK, FLOOR CARPET

main58521-42040×10iACA33,38,GSA33201002-201311

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050×2iACA31,36200511-200808

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main64726-26010-B1iACA33,38,GSA33..07S200808-201002

DK.GRAY,TRIM1#

main64726-26010-C1×2iACA3#201409-201606

BLACK

main64726-26010-E0×2iACA33,GSA33..05S; ACA33,GSA33..07S200708-200808

FAWN,TRIM4#

main64726-26010-E1×2iACA33,38,GSA33..07S; ACA38..05S200808-201002

SAND BEIGE,TRIM4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42030iACA33,38,GSA33201002-201304

main58561-42031iACA31,36; ACA33,38201305

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42040iACA31,36200808-201304

main58563-42041iACA31,36; ACA33,38201305

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42020-B0iACA38;ACA31,33,36,GSA33..05S200511-201002

DK.GRAY,TRIM1#

main58569-42020-E0iACA33,GSA33..05S200808-200812

FAWN,TRIM40

main58569-42020-E1iACA33,GSA33..05S200812-201002

SAND BEIGE,TRIM4#

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9046710161

main90467-10161

15 parts on this diagram · 2 diagrams in section
