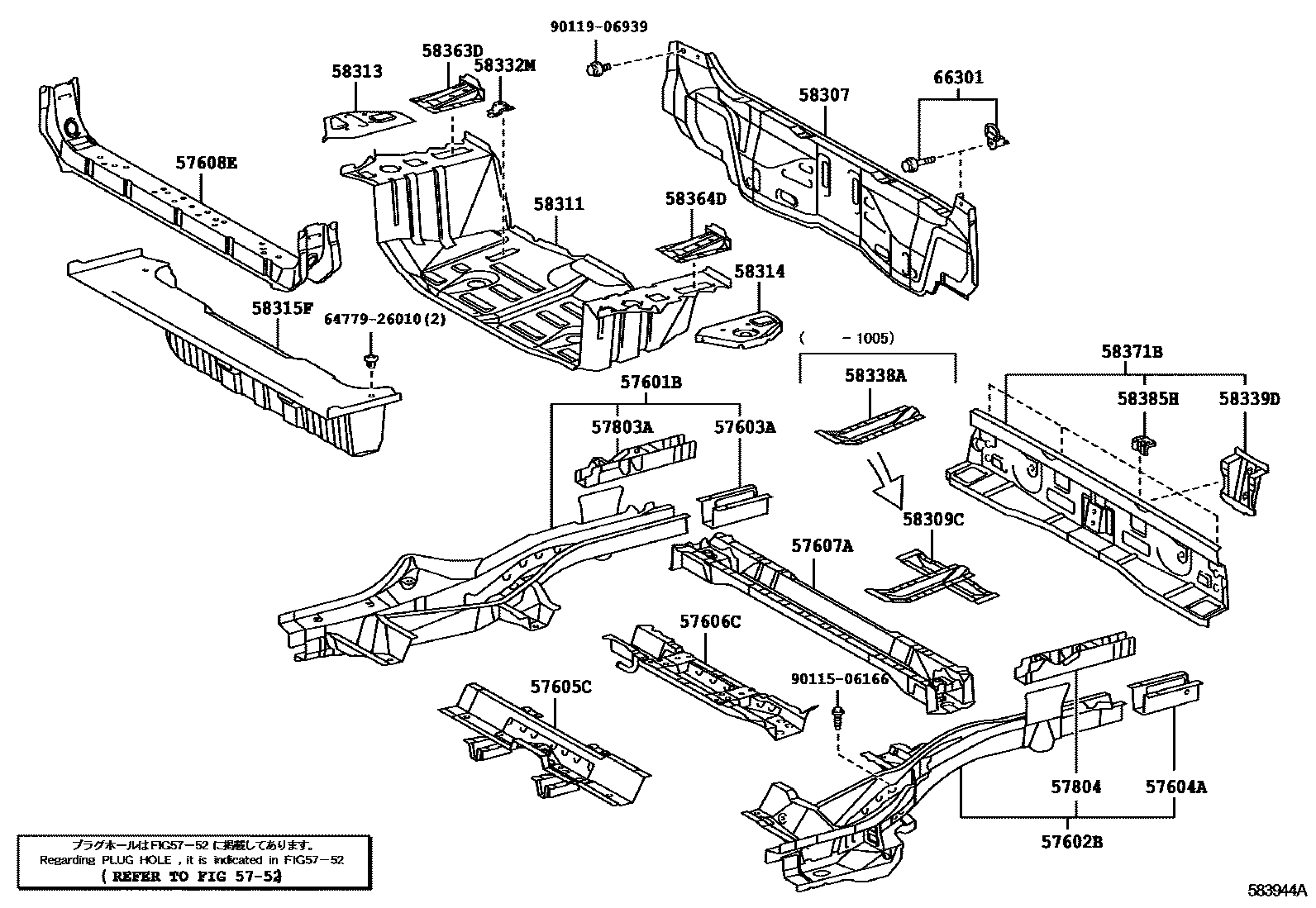

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42901iACA33,38,GSA33200708-200912

sub57601-42903

main57601-42902iACA31,36200511-200912

sub57601-42904

main57601-42903iACA33,38,GSA33200912-201106

sub57601-42905

main57601-42904iACA31,36200912-201106

sub57601-42906

main57601-42905iACA33,38,GSA33201106-201306

sub57601-42909

main57601-42906iACA31,36201106-201306

sub57601-42908

main57601-42908iACA31,36201306

main57601-42909iACA33,38201306

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42901iACA33,38,GSA33200708-201106

sub57602-42903

main57602-42902iACA31,36200511-201106

sub57602-42904

main57602-42903iACA33,38,GSA33201106-201306

sub57602-42907

main57602-42904iACA31,36201106-201306

sub57602-42906

main57602-42906iACA31,36201306

main57602-42907iACA33,38201306

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-42020iACA33,38,GSA33200708-200911

sub57603-42021

main57603-42021iACA33,38,GSA33200912-201002

main57603-42030iACA31,36200511-200911

sub57603-42031

main57603-42031iACA31,36200912

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-42020iACA33,38,GSA33200708-201002

main57604-42030iACA31,36200511-200808

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-42010iACA33,38,GSA33200511-201002

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42090iACA3#200511-200611

sub57606-42091

main57606-42091iACA31,36200612-201002

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42060iACA31,36200511-201002

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-42030iACA31,36200511-201002

main57608-42040iACA33,38,GSA33..07S200708-201002

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-42010iACA31,36200511-201002

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-42010iACA33,38,GSA33200511-201002

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42010iACA31,36200511-201202

sub58307-42011

main58307-42011iACA33,38,GSA33201203

58309CGUARD SUB-ASSY, REAR VALANCE PANEL

main58309-42010iACA33,38,GSA33..07S200708-201005

sub58309-42011

sub58339-42031

main58309-42011iACA33,38,GSA33..07S201005

main58309-42020iACA33,38,GSA33..05S201005

main58309-42030iACA31,36201005

58311PAN, REAR FLOOR

main58311-42110iACA33,38,GSA33200708-201002

main58311-42120iACA31,36200511-200808

58313PANEL, REAR FLOOR SIDE, RH

main58313-42040iACA33,38,GSA33200708-201002

main58313-42050iACA31,36200511-200808

58314PANEL, REAR FLOOR SIDE, LH

main58314-42040iACA33,38,GSA33200708-201002

main58314-42050iACA31,36200511-200808

58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT

main58315-42060iACA33,38,GSA33200511-201002

58332MBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2

main58332-42010iACA31,36200511-200808

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-42030iACA33,38,GSA33..05S200708-201005

main58338-42040iACA31,36200511-201005

58339DBRACKET, JACK UP

main58339-42030iACA31,36200511-201005

main58339-42031iACA33,38,GSA33201005

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-42010iACA33,38,GSA33200511-201002

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-42030iACA31,36200511-201002

58371BPANEL, BODY LOWER BACK, OUTER

main58302-42010iACA33,38,GSA33200511-201005

main58302-42011iACA33,38,GSA33201005

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-42010iACA31,36200511-201002

66301HOOK SUB-ASSY, ROPE

main66301-42010iACA31,36200511-201606

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9011506166

main90115-06166

9011906939

main90119-06939

28 parts on this diagram · 3 diagrams in section
