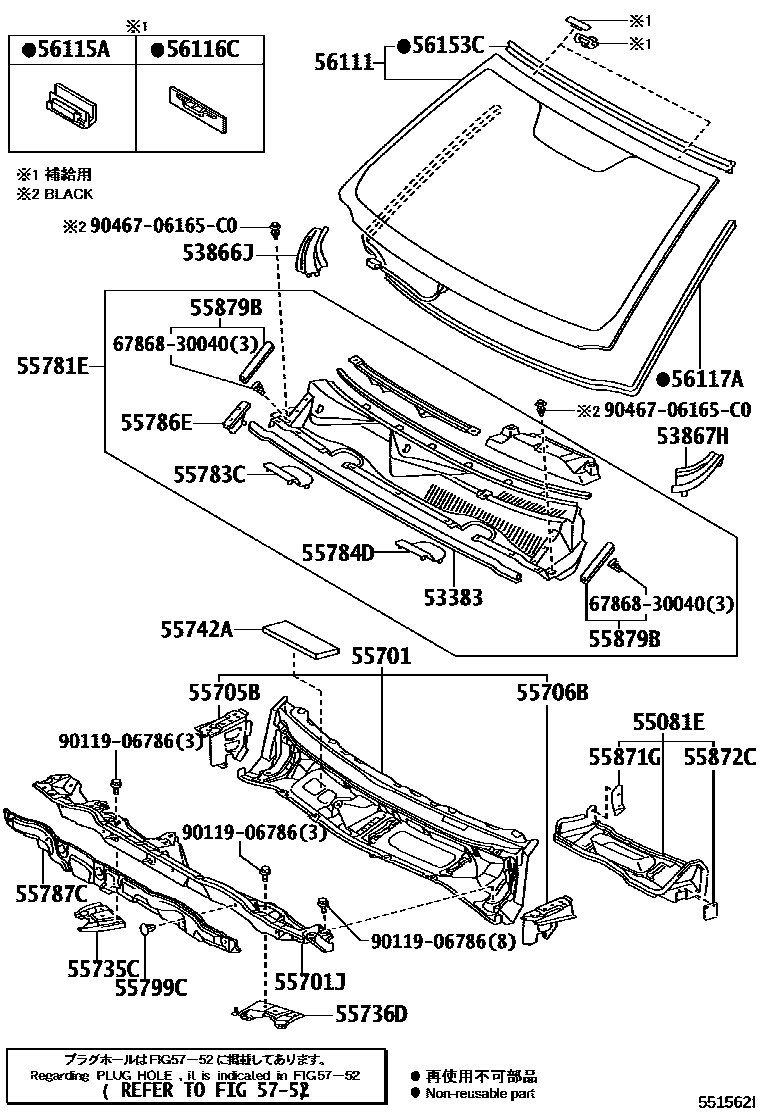

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-42030iACA31,36200808-201606

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-42010iACA3#,GSA33200511-200806

main53866-42012iACA31,36200806-200808

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-42010iACA3#,GSA33200511-200806

main53867-42012iACA31,36200806-200808

55081EHOUSING SUB-ASSY, COWL VENTILATOR

main55081-42020iACA31,36200511-200808

55701PANEL SUB-ASSY, COWL

main55700-42470iACA31,36200511-200808

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-42380iACA31,36200511-200808

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42060iACA31,36200511-200808

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42040iACA31,36200511-200808

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-42010iACA31,36200511-200808

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-42030iACA33,38,GSA33200511-201002

55742ASHEET, COWL TOP INSULATOR

main55742-42030iACA31,36200511-200808

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-42170supersedes 55708-42161iACA3#200511-200609

main55708-42171supersedes 55708-42161iACA31,36200808-201309

main55708-42172supersedes 55708-42210iACA31,36201310-201502

main55708-42220supersedes 55708-42210iACA3#201503-201606

55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH

main55784-42030iACA33,38,GSA33201002-201311

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55783-42040iACA31,36200808-201606

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-42020iACA31,36200511-200808

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-42040iACA31,36200511-200808

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09050×5iACA31,36200808

55871GSEAL, AIR DUCT, NO.1

main55871-42030iACA31,36200511-200808

55872CSEAL, AIR DUCT, NO.2

main55872-42020iACA31,36200511-200808

55879BSEAL, COWL VENT

main55879-42010×2iACA3#200511-200707

main55879-42011×2iACA3#,GSA33200708-200712

main55879-42012×2iACA31,36200808-201606

56111GLASS, WINDSHIELD

main56101-42133iACA31,36201112-201202

main56101-42134iACA31,36201202-201310

main56101-42080supersedes 56101-42132iACA31,36200511-200712

main56101-42081supersedes 56101-42132iACA31,36200801-200808

main56101-42082iACA31,36201107-201310

main56101-42083supersedes 56101-42135iACA3#201311

main56101-42180supersedes 56101-42091iACA33,GSA33200708-200712

main56101-42181supersedes 56101-42093iACA33,38,GSA33201002-201106

main56101-42182supersedes 56101-42093iACA33,38,GSA33201107-201311

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iACA31,36200511-200808

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iACA33,38,GSA33200511-201002

56117ADAM, WINDOW GLASS ADHESIVE

main56117-42050iACA31,36200511-200808

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-42010iACA31,36200511-200808

5752HOLE PLUG

→ Go to FIG 57-52

6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30040

9011906786

main90119-06786

9046706165C0

main90467-06165C0

29 parts on this diagram · 1 diagram in section
