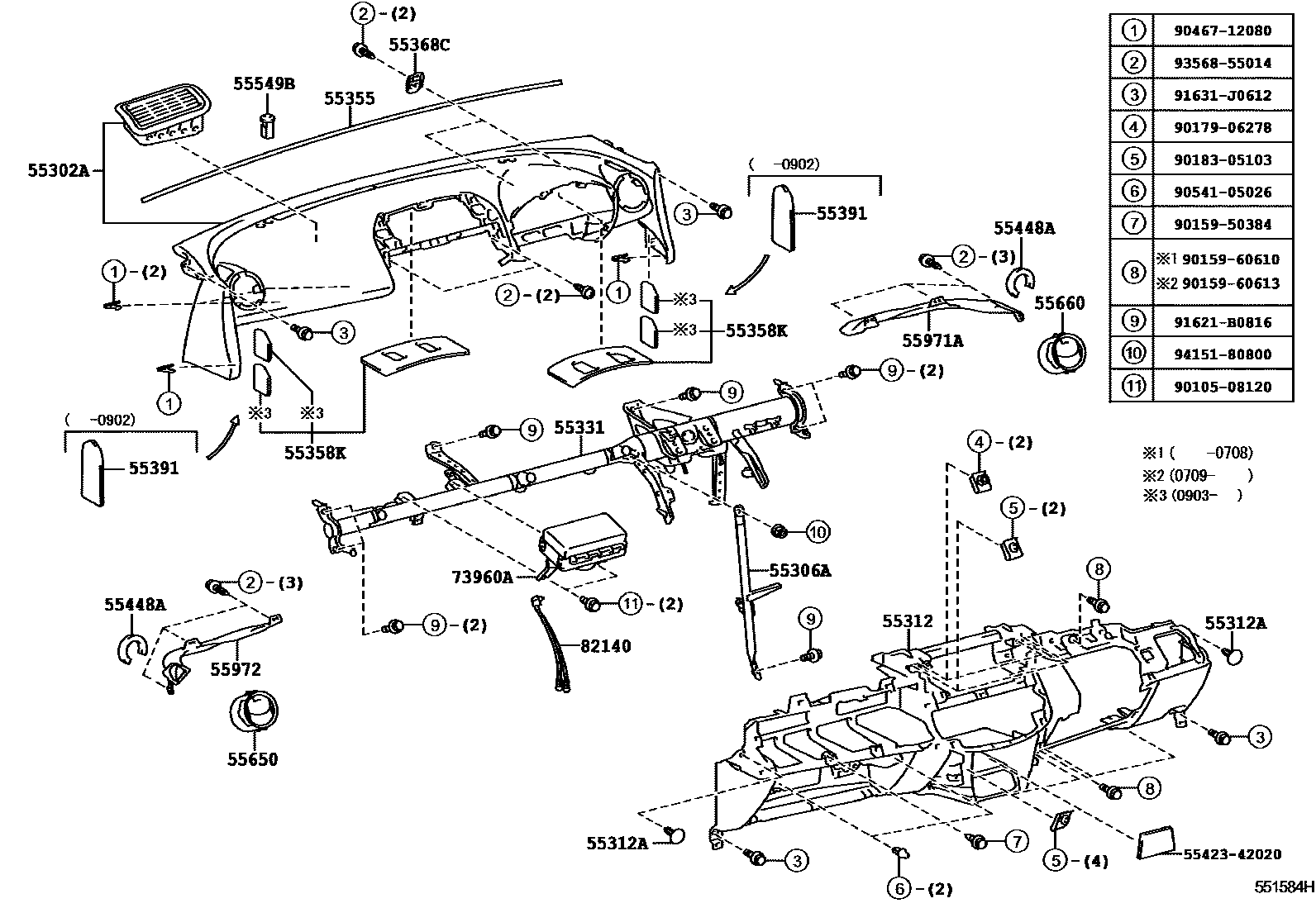

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-42902-B0iACA33,38,GSA33201002-201311

DK.GRAY,TRIM1#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42110iACA33,38,GSA33200511-201002

55312PANEL, INSTRUMENT, LOWER

main55312-42020-B0iACA33,38,GSA33201002

DK.GRAY,TRIM1#

main55312-42020-E0iACA33,GSA33200708-200808

FAWN,TRIM4#

main55312-42020-E1iACA33,38,GSA33200808-201002

SAND BEIGE,TRIM4#

55312ACLIP, INSTRUMENT PANEL

main90467-05161-B0×2iACA31,36200511-200808

DK.GRAY,TRIM1#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42240iACA3#200511-200707

main55330-42241iACA31,36200708-200808

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42020iACA31,36200808

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-42050×2iACA31,36200511-200808

main55358-42051×2iACA33,38,GSA33200903-201002

55368CBRACKET, METER MOUNTING

main55368-42010×2iACA33,38,GSA33200511-201002

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-42020×2iACA31,36200511-200808

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-42020×2iACA31,36200511-200808

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-42020iACA31,36..S,X200511-200808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42040-B0iACA3#200511-200708

DK.GRAY,TRIM1#

main55650-42040-B1iACA31,36200708-200808

GRAY,TRIM1#

main55650-42040-E0iACA33,GSA33200708-200808

BROWN,TRIM4#

main55650-42050-B0iACA33,38,GSA33200808-201002

GRAY,TRIM13

main55650-42050-E0iACA33,38,GSA33201002-201003

BROWN,TRIM4#

main55650-42051-B0iACA31,36201003-201606

GRAY,TRIM1#

main55650-42051-E0iACA33,38,GSA33201003

BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-42040-B0iACA3#200511-200708

DK.GRAY,TRIM1#

main55650-42040-B1iACA31,36200708-200808

GRAY,TRIM1#

main55650-42040-E0iACA33,GSA33200708-200808

BROWN,TRIM4#

main55650-42050-B0iACA33,38,GSA33200808-201002

GRAY,TRIM13

main55650-42050-E0iACA33,38,GSA33201002-201003

BROWN,TRIM4#

main55650-42051-B0iACA31,36201003-201606

GRAY,TRIM1#

main55650-42051-E0iACA33,38,GSA33201003

BROWN,TRIM4#

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-42040iACA31,36200511-200808

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-42040iACA31,36200808

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42010iACA31,36200511-200808

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iACA31,36200511-200808

5542342020PANEL, STEREO PLAYER FINISH

main55423-42020

9010508120

main90105-08120

9015950384

main90159-50384

9015960610

main90159-60610

9015960613

main90159-60613

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

91621B0816

main91621-B0816

91631J0612

main91631-J0612

9356855014

main93568-55014

9415180800

main94151-80800

30 parts on this diagram · 4 diagrams in section
