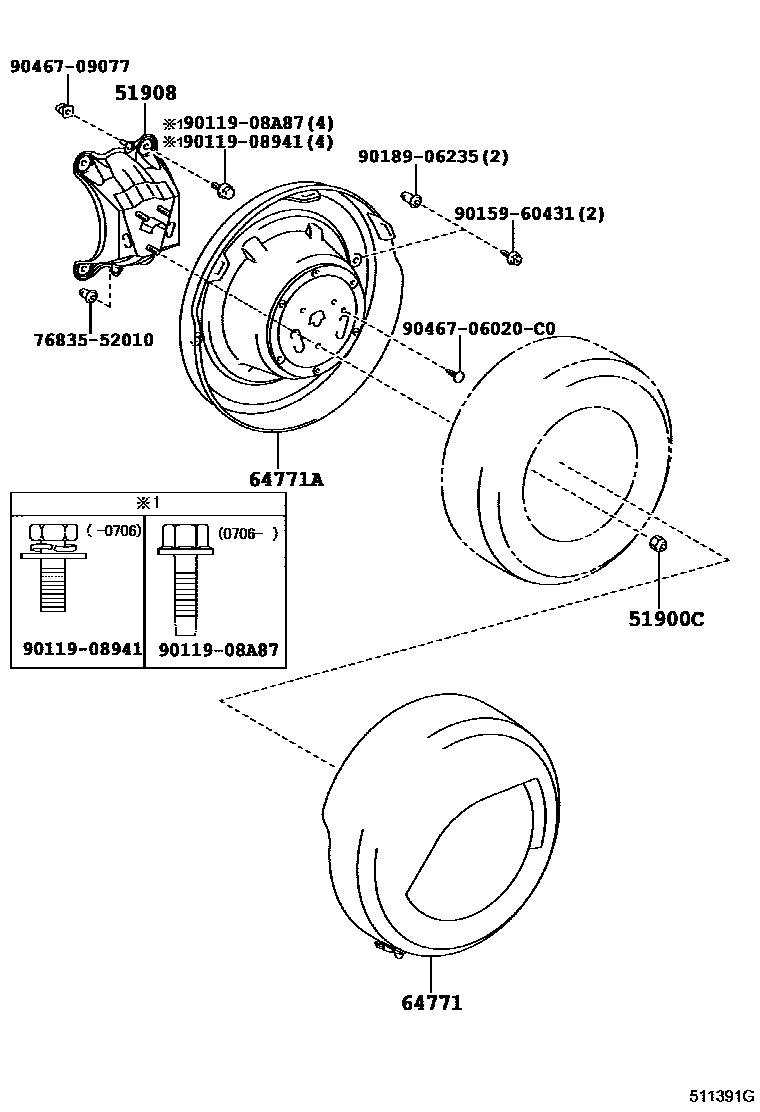

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-01007×3iACA31,36..X200808-201212

main90942-01033×3supersedes 90942-01007iACA31,36..G; ACA31..S200808-201212

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-42040iACA3#200511-200705

main51908-42041iACA31,36200706-200808

main51908-42050iACA31,36..G; ACA31,36..S,X200808-201212

64771COVER, SPARE WHEEL

main64771-42110-A1iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-B0iACA31,36200511-200808

DK.GRAY MC.,1E0

main64771-42110-B1iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-B3iACA31,36..G; ACA31,36..S,X; ACA33,38,GSA33201002-201212

main64771-42110-C0iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-D0iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-E0iACA31,36200511-200808

BEIGE ME.,4R4

main64771-42110-E1iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-E2iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-G0iACA31,36..G; ACA31,36..S,X200808-201008

main64771-42110-G1iACA31,36200511-200808

LT.GREEN ME.,6T6

main64771-42110-J0iACA31,36..G; ACA31,36..S,X200808-201212

main64771-42110-J1iACA31,36200511-200808

DK.BLUE MC.,8S6

main64771-42110-B2iACA33,38,GSA33201002-201212

main64771-42110-D2iACA33,38,GSA33201002-201212

main64771-42110-G2iACA33,38,GSA33201002-201212

main64771-42110-K0iACA33,38,GSA33200808-201002

64771ACOVER, SPARE WHEEL

main64773-42040iACA31,36200511-200808

main64773-42060iACA31,36..G; ACA31,36..S,X200808-201212

7683552010RETAINER, REAR SPOILER SIDE, NO.1

main76835-52010

9011908941

main90119-08941

9011908A87

main90119-08A87

9015960431

main90159-60431

9018906235

main90189-06235

9046706020C0

main90467-06020C0

9046709077

main90467-09077

11 parts on this diagram · 1 diagram in section
