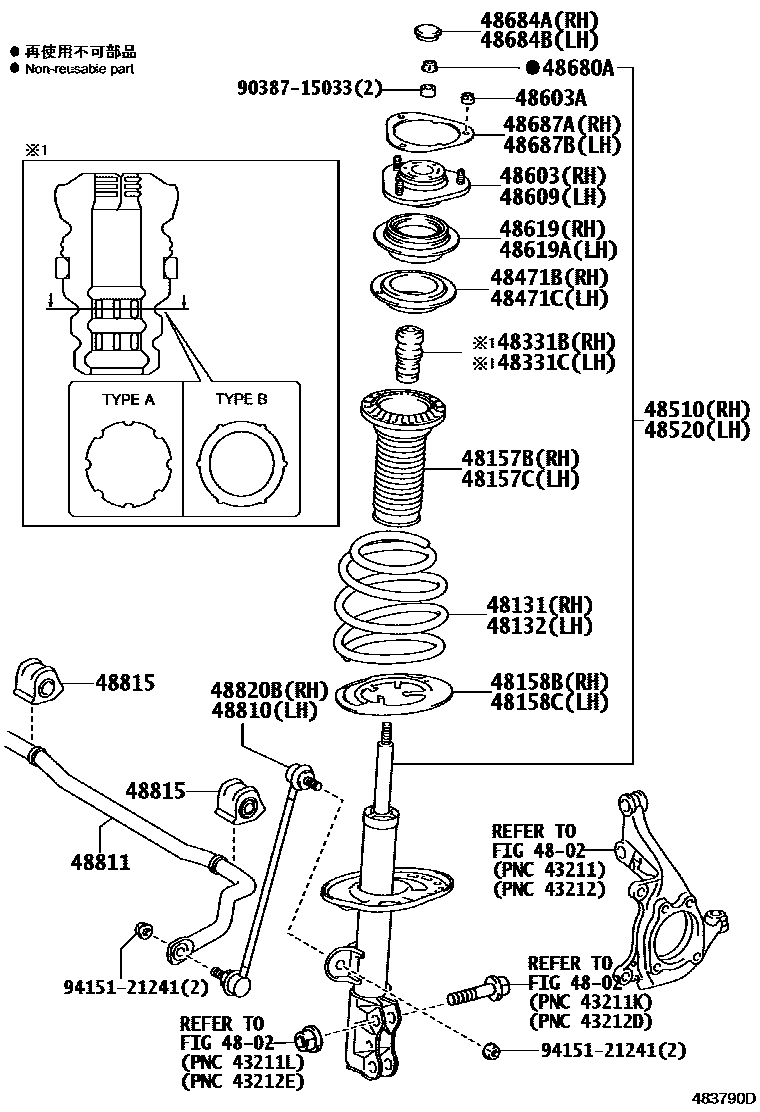

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-42540iACA36200511-200710

main48131-42541iACA36200710-200808

main48131-42560iACA31200511-200704

main48131-42561iACA31,36200808-201212

main48131-42610iGSA33201002-201212

main48131-42690iACA31,36; ACA33,38201212

48132SPRING, FRONT COIL, LH

main48131-42540iACA36200511-200710

main48131-42541iACA36200710-200808

main48131-42560iACA31200511-200704

main48131-42561iACA31200705-200808

main48131-42610iGSA33200708-201002

main48131-42690iACA31,36; ACA33,38201212

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42020iACA33,38,GSA33200511-201002

main48157-58010iACA31,36201207-201411

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42020iACA31,36200511-200808

main48157-58010iACA33,38,GSA33201207

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-21010iACA31,36; ACA33,38,GSA33201207-201311

main48158-42010iACA33,38,GSA33200511-201002

main48158-48050iACA3#201311-201411

main48158-78010iACA3#201411

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-21010iACA31,36; ACA33,38,GSA33201207-201311

main48158-42010iACA33,38,GSA33200511-201002

main48158-48050iACA3#201311-201411

main48158-78010iACA3#201411

48331BBUMPER, FRONT SPRING, RH

main48331-42030iACA31,36200511-200808

main48331-42060iACA33,38,GSA33201002

main48331-42080iACA3#201401-201504

main48331-42120iACA3#201504

48331CBUMPER, FRONT SPRING, LH

main48331-42030iACA33,38,GSA33200511-200809

main48331-42060iACA33,38,GSA33200810-201002

main48331-42080iACA3#201401-201504

main48331-42120iACA3#201504

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iACA31,36201212-201411

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iACA31,36201212-201411

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80284iACA3#200511-200706

main48510-80366iACA33,38,GSA33200706-201002

main48510-80607iACA33,38201212-201311

main48510-80613iACA31,36201212-201311

main48510-80639iACA31,36; ACA33,38,GSA33201211-201212

main48510-80696iACA3#201311-201411

main48510-80767iACA3#201411-201606

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80071iACA3#200511-200706

main48520-80130iACA33,38,GSA33201002-201210

main48520-80321iACA33,38201212-201311

main48520-80327iACA31,36201212-201311

main48520-80342iACA31,36; ACA33,38,GSA33201211-201212

main48520-80390iACA3#201311-201411

main48520-80444iACA3#201411-201606

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42020iACA31,36200808-201212

main48609-42040iACA31,36; ACA33,38201212

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iACA31,36200511-200808

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42020iACA31,36200511-200808

main48609-42040iACA31,36; ACA33,38201212

48619BEARING, STRUT MOUNTING, RH

main48619-28010iACA31,36; ACA33,38201212

main48619-42010iACA33,38,GSA33200511-201002

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iACA31,36; ACA33,38201212

main48619-42010iACA31,36200808-201212

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iACA31,36200511-200808

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iACA3#200511-200512

main48684-42020iACA31,36200808

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iACA3#200511-200512

main48684-42020iACA33,38,GSA33200601-201002

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iACA31,36200511-200808

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iACA31,36200511-200808

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iACA31,36200511-200808

48811BAR, STABILIZER, FRONT

main48811-42070iACA31,36200511-200808

main48811-42071iACA31,36; ACA33,38,GSA33201204

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-42090iACA33,38,GSA33201002-201212

main48815-42100iACA33,38,GSA33201002-201212

main48815-42130iACA33,38201212

main48815-42140iACA31,36201212-201409

main48815-48080iACA3#201410

main48815-48090iACA3#201410

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iACA33,38,GSA33201002

9038715033

main90387-15033

9415121241

main94151-21241

29 parts on this diagram · 2 diagrams in section
