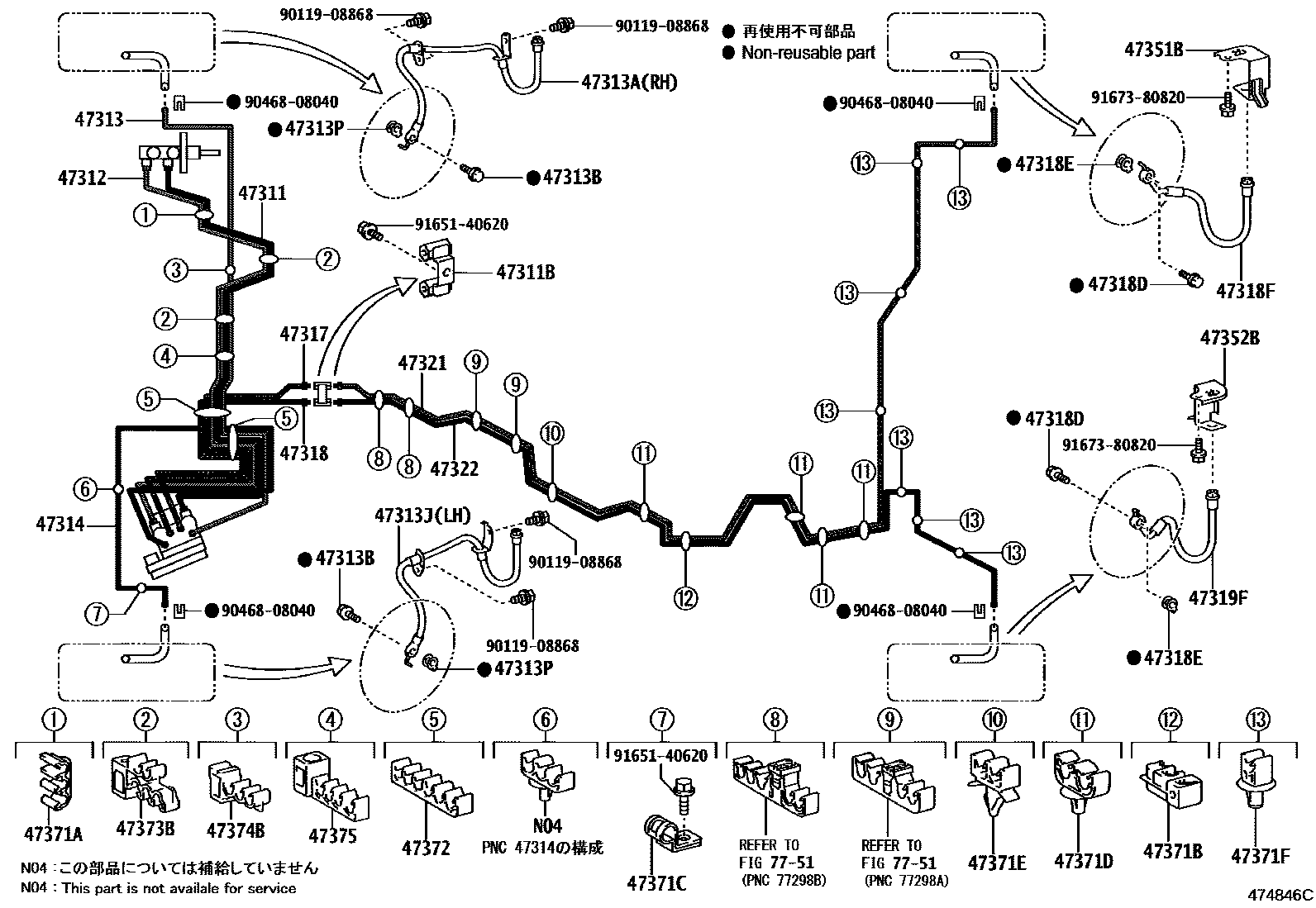

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W(VSC) 0003 1W(ABS) 0004 1W(VSC) 0005 1W(ABS) 0006 1W(VSC) 0008 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-42130supersedes 47311-42140iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47311-42140iACA31,36..G,X200808-201212

main47311-42170iACA31,36..S,STYLE200808

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iACA31,36200511-200808

47312TUBE, FRONT BRAKE, NO.2

main47312-42300supersedes 47312-42310iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47312-42310iACA31,36..G,X200808-201212

main47312-42340iACA31,36..S,STYLE200808

47313TUBE, FRONT BRAKE, NO.3

main47313-42300supersedes 47313-42310iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47313-42310iACA31,36..G,X200808-201212

main47313-42340iACA31,36..S,STYLE200808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E26iACA3#200511-200701

main90947-02F47iACA31,36; ACA33,38201212

main90947-02F49iACA33,38,GSA33200701-201002

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iACA31,36200511-200808

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E27iACA3#200511-200701

main90947-02F48iACA31,36; ACA33,38201212

main90947-02F50iACA31,36200808-201212

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iACA31,36200511-200808

47314TUBE, FRONT BRAKE, NO.4

main47314-42161supersedes 47314-42171iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47314-42171iACA31,36..G,X200808-201212

main47314-42180iACA33,38,GSA33201002

47317TUBE, FRONT BRAKE, NO.7

main47317-42190supersedes 47317-42200iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47317-42200iACA31,36..G,X200808-201212

main47317-42210iACA33,38,GSA33200808-201002

47318TUBE, FRONT BRAKE, NO.8

main47318-42190supersedes 47318-42200iACA31,33,GSA33..240S,350S,S; ACA31,36..G,X200511-200808

main47318-42200iACA31,36..G,X200808-201212

main47318-42210iACA33,38,GSA33201002

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iACA31,36200511-200808

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iACA31,36200511-200808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E58iACA3#200511-200701

main90947-02F51iACA31,36200701-200808

main90947-02G79iACA31,36; ACA33,38201212

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E59iACA3#200511-200701

main90947-02F52iACA31,36200808-201212

main90947-02G80iACA31,36; ACA33,38201212

47321TUBE, REAR BRAKE, NO.1

main47321-42140iACA31,36200511-200808

main47321-42150iACA33,38,GSA33200708-201002

47322TUBE, REAR BRAKE, NO.2

main47322-42130iACA31,36200511-200808

main47322-42140iACA33,38,GSA33200708-201002

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-42071iACA31,36200511-200808

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-42071iACA31,36200511-200808

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iACA31,36200511-200808

47371BCLAMP, BRAKE TUBE, NO.6

main77299-32030iACA33,38,GSA33201002

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iACA31,36200511-200808

47371DCLAMP, BRAKE TUBE, NO.8

main90469-07020×4iACA31,36200511-200808

47371ECLAMP, BRAKE TUBE, NO.9

main90469-07019iACA31,36200511-200808

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D29×7iACA31,36200511-200808

47372CLAMP, BRAKE TUBE, NO.2

main90464-00890×2iACA31,36200511-200808

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C19×2iACA31,36200511-200808

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D05iACA3#,GSA33200511-200808

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D44iACA31,36200511-200808

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

9046808040

main90468-08040

9165140620

main91651-40620

9167380820

main91673-80820

34 parts on this diagram · 7 diagrams in section
