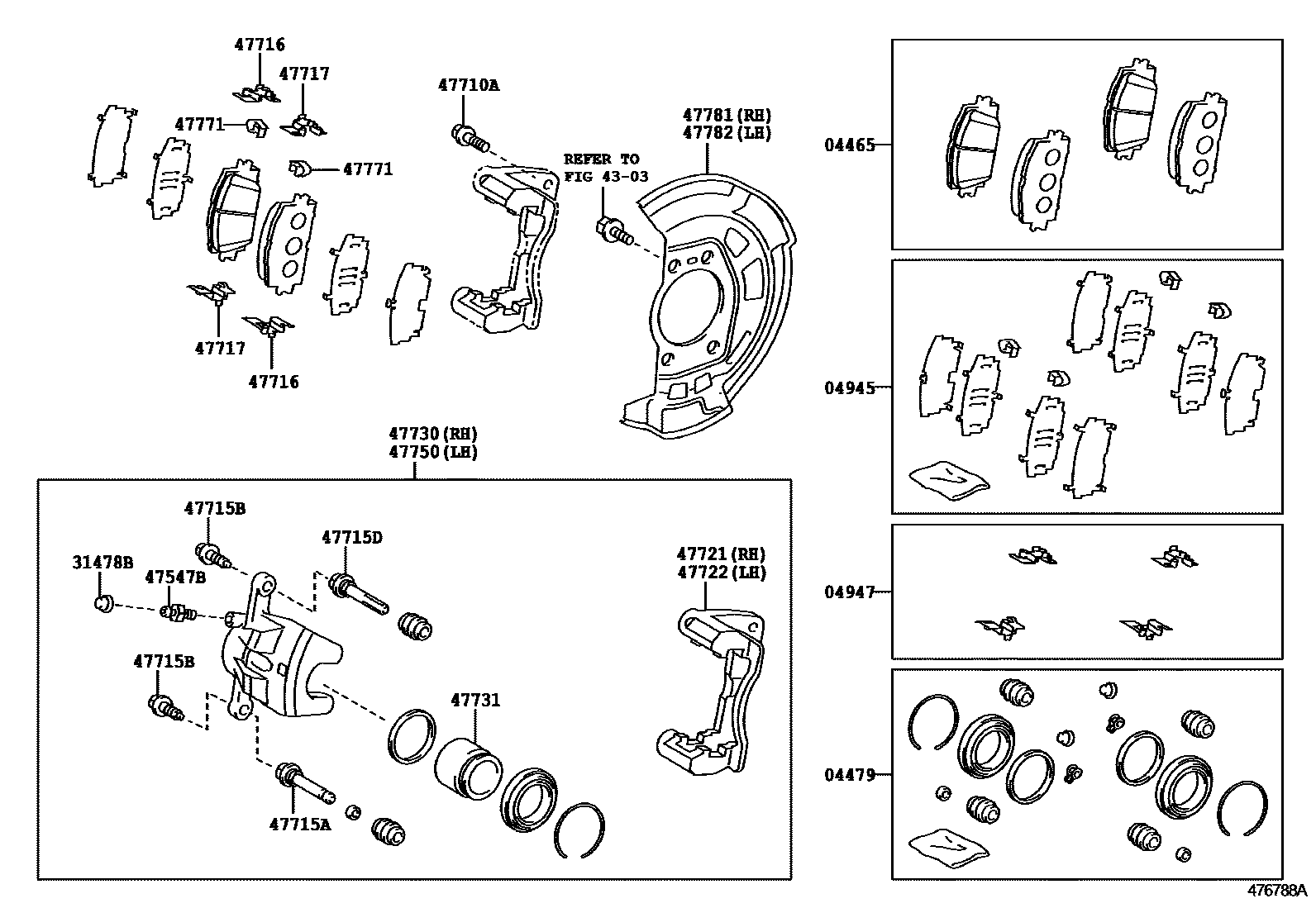

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42150iACA3#,GSA33200511-200803

sub04465-42180

main04465-42180iACA33,38,GSA33200803-201002

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iACA33,38,GSA33201108

main04478-42020iACA33,38,GSA33200511-201107

sub04478-33100

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iACA31,36200511-201002

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iACA31,36200511-201002

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACA33,38,GSA33200511-201002

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACA31,36201108

main47547-35020iACA31,36200511-201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACA31,36200511-201606

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-42080iACA31,36200511-201108

sub47715-12A10

main47715-12A10iACA31,36201108

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iACA33,38,GSA33201108

main90105-08304iACA31,36200511-201108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-42080iACA31,36200511-201108

sub47715-52190

main47715-52190iACA33,38,GSA33201108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191iACA31,36200511-201002

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191iACA33,38,GSA33200511-201002

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42090iACA31,36200511-201202

sub47721-42091

main47721-42091iACA33,38,GSA33201202

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42090iACA31,36200511-201202

sub47722-42091

main47722-42091iACA33,38,GSA33201202

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42090iACA31,36200511-201202

sub47730-42091

main47730-42091iACA31,36201202

47731PISTON, FRONT DISC BRAKE

main47731-12A70iACA33,38,GSA33201108

main47731-42080iACA33,38,GSA33200511-201108

sub47731-12A70

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42090iACA31,36200511-201202

sub47750-42091

main47750-42091iACA31,36201202

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iACA31,36200511-201002

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iACA31,36200511-201606

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iACA31,36200511-201606

21 parts on this diagram · 1 diagram in section
