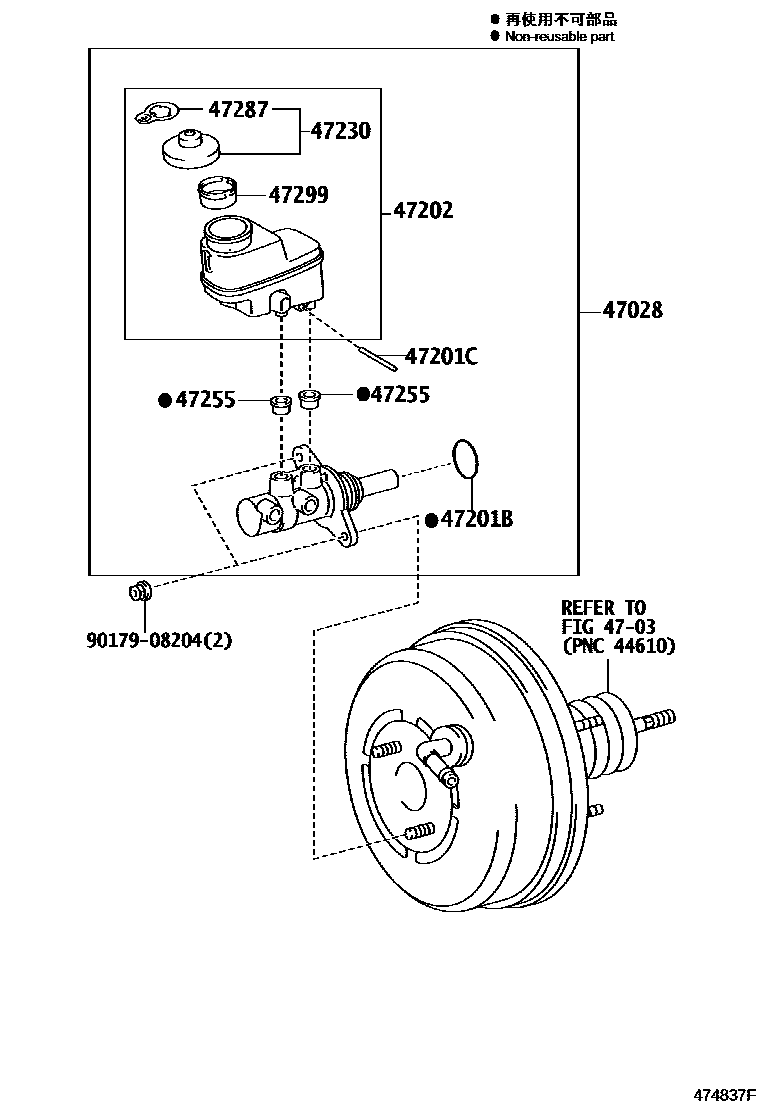

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42320iACA31,36..G,X200808-201212

main47201-42360supersedes 47201-42320iACA33,38,GSA33200511-201002

main47201-42361iACA31..G,X; ACA31..S; ACA33,38,GSA33; ACA36201203-201204

main47201-42362iACA33,38,GSA33201205-201311

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACA33,38,GSA33200511-201002

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iACA31,36200511-200808

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iACA31,36200511-200808

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACA31,36200808

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iACA33,38,GSA33201002

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACA31,36200511-200808

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACA33,38,GSA33200511-201002

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
